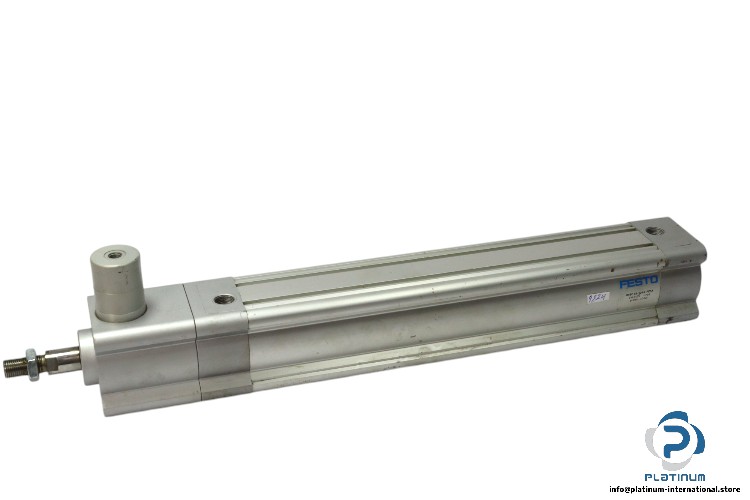

Festo 1463475 ISO Cylinder With Break
Usado
Em estoque2 unidadesPronto para envio
ISO Cylinder
A double-acting ISO 15552 pneumatic cylinder designed for industrial automation, offering reliable operation, strong clamping force, and advanced pneumatic end-position cushioning.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

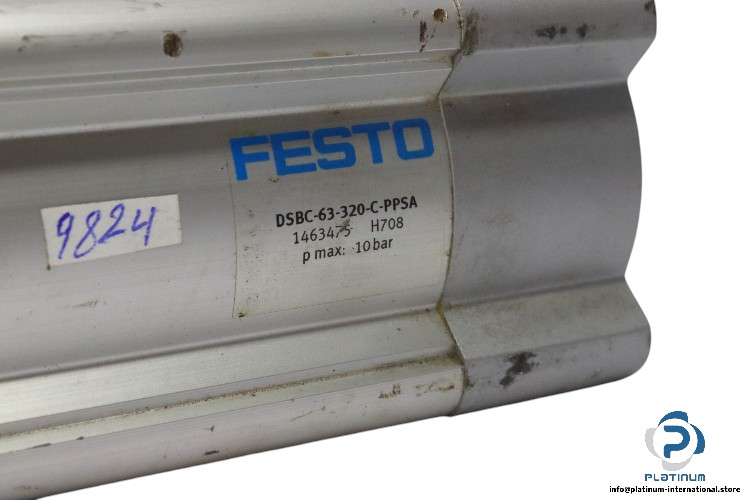

FESTO DSBC-63-320-C-PPSA ISO Cylinder
A high-performance ISO standard pneumatic cylinder designed for demanding industrial applications requiring reliable motion control, high clamping force, and precise end-position cushioning. This double-acting cylinder is suitable for automation systems, machinery, and production lines operating under harsh environmental conditions. Manufacturer: FESTO
Type: ISO Cylinder
Model: DSBC-63-320-C-PPSA
Part No.: 1463475
Cushioning:
Elastic cushioning rings/plates at both ends
Self-adjusting pneumatic end-position cushioning
Pneumatic cushioning, adjustable at both ends
| Cylinder Diameter | 63 mm |
| Stroke | 320 mm |
| Mode of Operation | Double-Acting |
| Maximum Operating Pressure | 10 bar |
| Ambient Temperature | -40 °C to +150 °C |
| Housing Material (End-Position Locking) | Anodised Wrought Aluminium Alloy |
| Static Holding Force of Clamping Unit | 2000 N |
| Axial Backlash of Clamping Unit | 0.8 mm |
| Clamping Unit Release Pressure | 0.3 MPa |
| Mounting Position | Optional |
| Conforms to Standard | ISO 15552 |
| Pneumatic Connection | G3/8 |
