Festo 170863 Guided Drive
Usado
Em estoque1 unidadePronto para envio

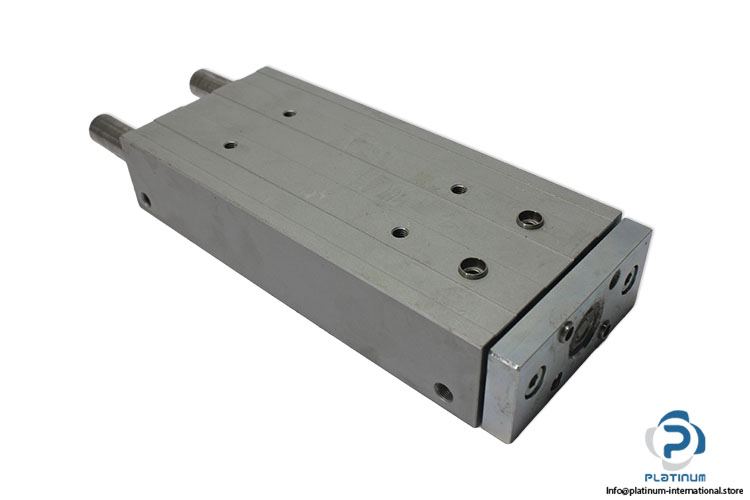

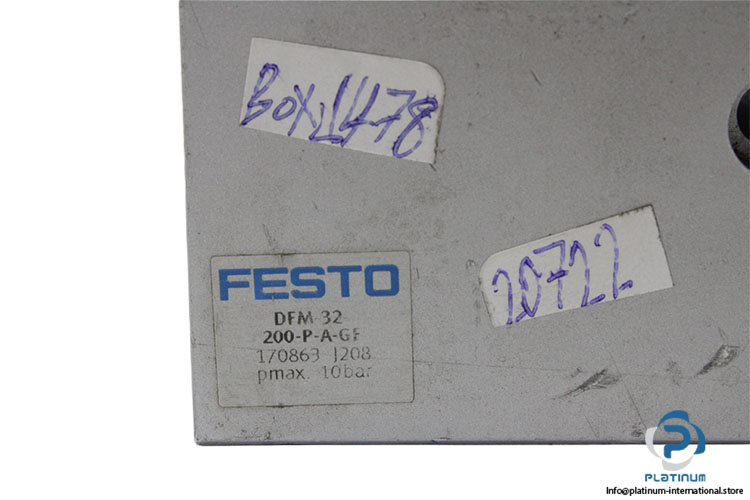

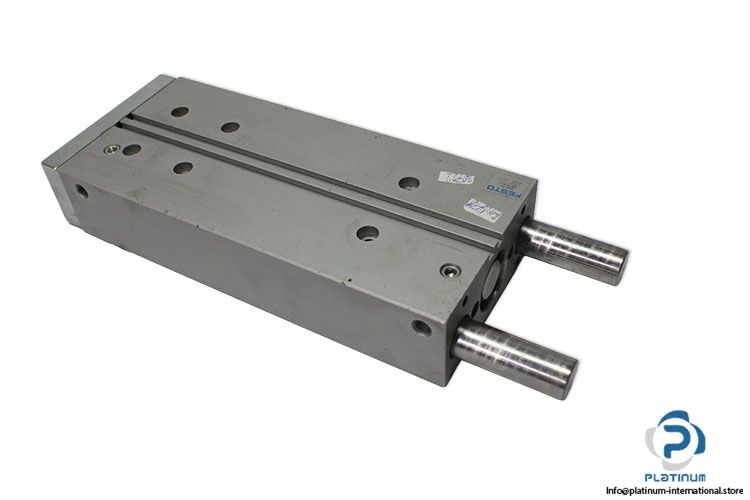

Guided Drive The FESTO DFM-32-200-P-A-GF is a double-acting pneumatic guided drive with a 200 mm stroke and plain-bearing guide, designed for precise industrial automation.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
| Part No. | 170863 |
| Fluid | Compressed Air |
| Distance from Centre of Gravity of Load to Yoke Plate xs | 50 mm |
| Stroke | 200 mm |
| Piston Diameter | 32 mm |
| Operating Pressure Max. | 10 bar |
| Operating Mode, Drive Unit | Yoke |
| Guide | Plain-Bearing |
| Force Max. | 1227 N |
| Speed Max. | 0.8 m/s |
| Operation Mode | Double-Acting |
| Pneumatic Connection | G1/8 |
| Material | Wrought Aluminium Alloy |
| Temperature | -20 … 80 °C |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1103275 |
| Weight | 4,76 |
