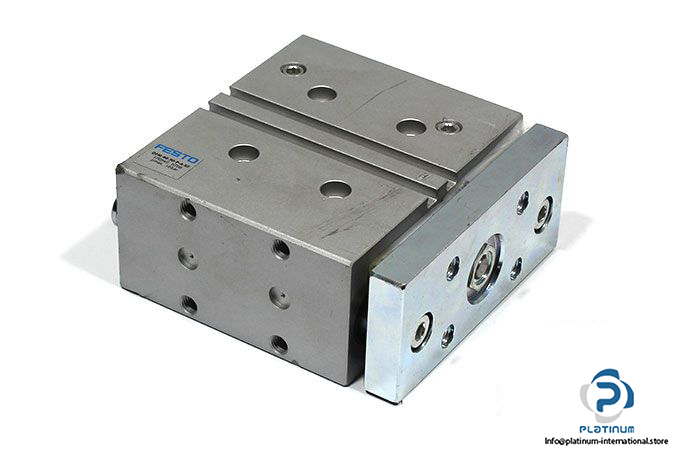

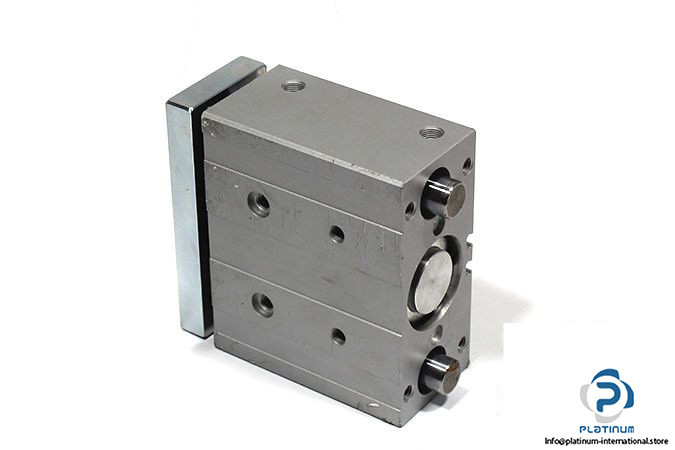

Manufacturer: Festo
Type: Guided Actuator

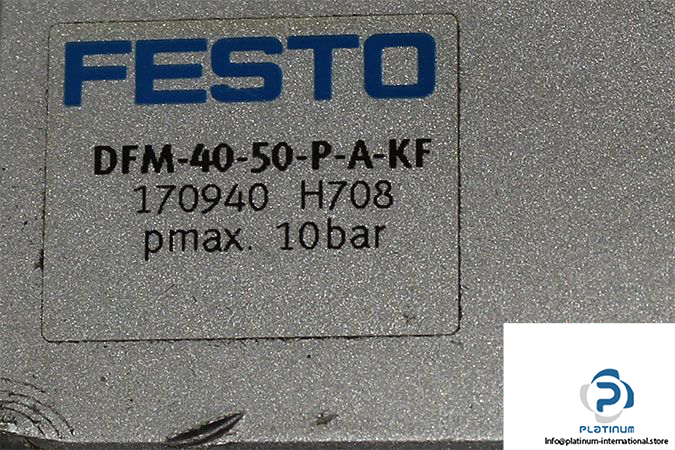

Model: DFM-40-50-P-A-KF
Part No: 170940
Operating Pressure: 1.5…10 bar
Piston Diameter: 40 mm
Stroke: 50 mm
Design: Guide
Guide: Recirculating Ball Bearing Guide
Mode of Operation: Double-Acting
Position Sensing: For Proximity Sensor
Ambient Temperature: -5…60 °C
Pneumatic Connections: G1/8”
Material: Aluminum
| Preço | Mediante Solicitação |
| Estoque | Disponível sob consulta |
| Categoria | Guide Actuators |
| Condição | Usado |
| SKU | 981950 |
Manufacturer: Festo
Type: Guided Actuator
Model: DFM-40-50-P-A-KF
Part No: 170940
| Weight | 2,4 kg |
| Condition | Used |
| Material | Aluminum |
| Type of Product | Guided Actuator |
| Shelf No. | 240403 |
| Mode of Operation | single side |
| Position Sensing | For proximity sensor |
| Connection | G1/8 |
| Stroke Size [mm] | 50 |
| Bore x Stroke | 40x50 |
| Bore Size [mm] | 40 |
