Festo 170954 Guided Drive
Usado
Em estoque1 unidadePronto para envio
199,99$
Guided Drive
FESTO DFM-63-50-P-A-KF guided drive with recirculating ball bearing guide, 50 mm stroke, and double-acting operation for precise pneumatic motion control.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

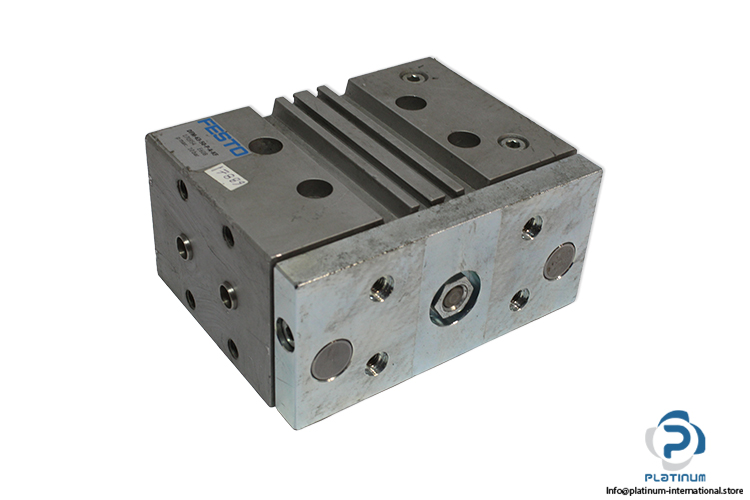

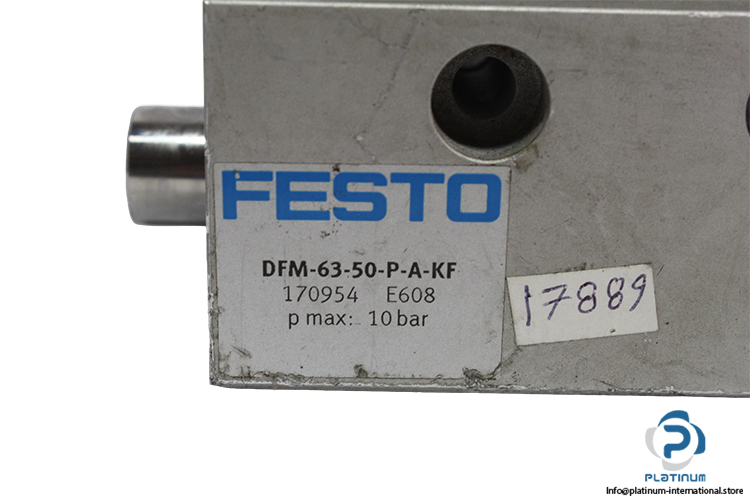

FESTO DFM-63-50-P-A-KF Guided Drive
The FESTO DFM-63-50-P-A-KF is a robust guided drive engineered for precise linear motion and high load capacity. It features a recirculating ball bearing guide for accurate guidance and stable operation, making it suitable for demanding industrial automation tasks.
Manufacturer: FESTO
Type: Guided Drive
Model: DFM-63-50-P-A-KF
Part Number: 170954
| Stroke | 50 mm |
| Distance of Centre of Gravity to Yoke Plate (xs) | 50 mm |
| Piston Diameter | 63 mm |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting Position | Any |
| Guide | Recirculating ball bearing guide |
| Structural Design | Guide |
| Position Sensing | For proximity sensor |
| Operating Pressure | 1 bar / 10 bar |
| Max. Speed | 0.6 m/s |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed air |
| Ambient Temperature | -5 °C / 60 °C |
| Impact Energy in End Positions | 1.3 Nm |
| Max. Force Fy | 1487 N |
| Max. Force Fy (Static) | 1600 N |
| Pneumatic Connection | G1/4 |
| Housing Material | Wrought aluminum alloy |
