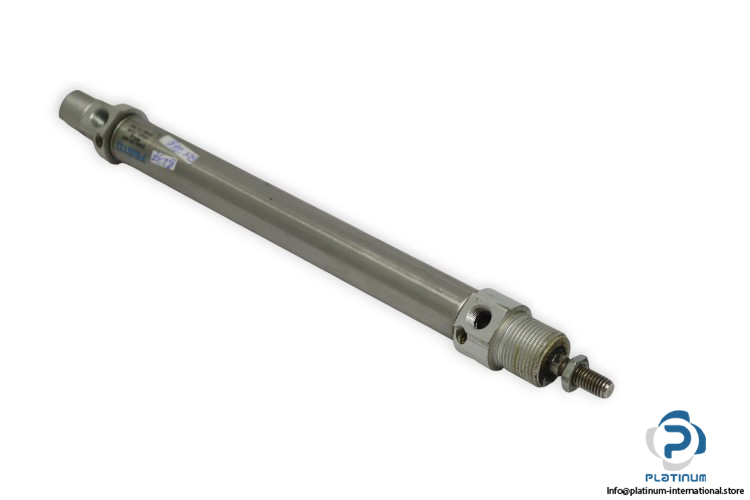

Festo 19241 ISO Cylinder

Manufacturer: FESTO
Type: ISO cylinder

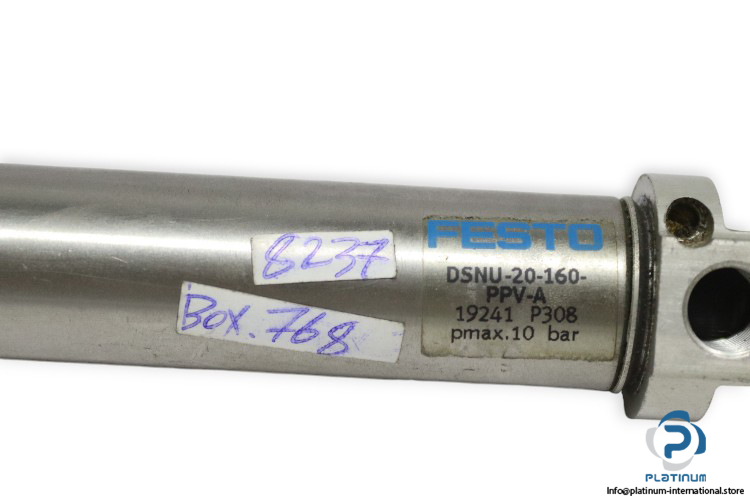

Model: DSNU-20-160-PPV-A
MRN: 19241

Stroke: 160 mm
Piston diameter: 20 mm
Piston rod thread: M8
Cushioning: Pneumatic cushioning, adjustable at both ends
Piston rod end: External thread
Position sensing: For proximity sensor
Variants: Piston rod at one end
Operating pressure: 1 bar … 10 bar
Mode of operation: Double-acting
Operating medium: Compressed air
Ambient temperature: -20 °C … 80 °C
Pneumatic connection: G1/8
Piston rod material: High-alloy stainless steel
Material of cylinder barrel: High-alloy stainless steel
