Festo 2123072 ISO Cylinder
Novo
Em estoque1 unidadePronto para envio
ISO Cylinder
The FESTO DSBC-32-70-PPVA-N3 ISO Cylinder is a durable pneumatic cylinder with a 32 mm bore, 70 mm stroke, and double-acting operation mode. Designed for **compressed air** systems with a **12 bar maximum pressure** and **G 1/8 pneumatic connection**.12ActingAirbarboreComponentsCompressedconnectionCylinderdiameterDimensionsDoubleDSBC-32-70-PPVA-N3FestoframeIndustrialISOmaleOperationPistonPneumaticRODShapeSquareStroke
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

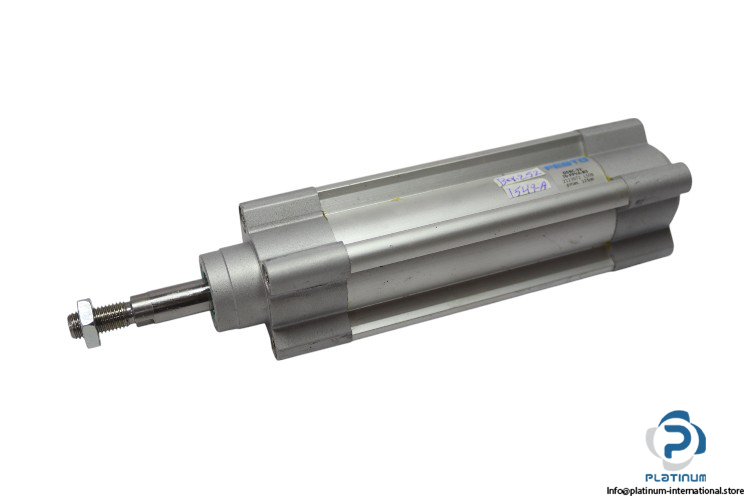

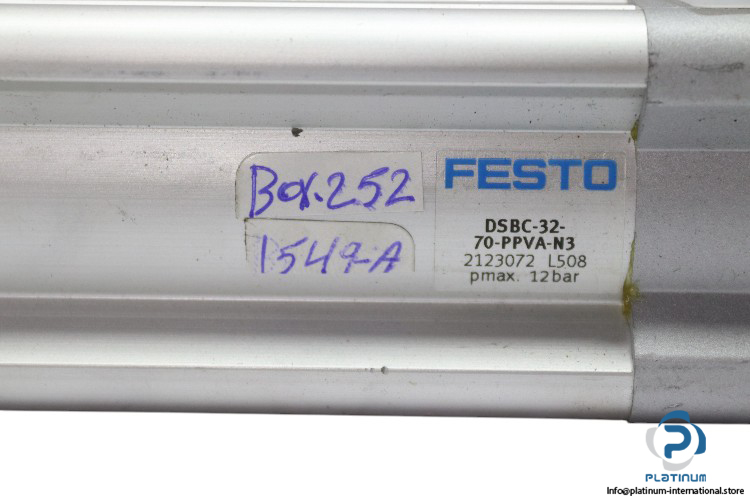

FESTO DSBC-32-70-PPVA-N3 ISO Cylinder
The FESTO DSBC3270PPVAN3 ISO Cylinder is a high-performance pneumatic cylinder designed for compressed air applications. Featuring a robust frame and a double-acting operation mode, it offers reliable performance in various industrial environments.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DSBC-32-70-PPVA-N3
Part No.: 2123072
| Media | Compressed Air |
| Bore Diameter | 32 mm |
| Stroke | 70 mm |
| Bore x Stroke | 32 x 70 mm |
| Rod Diameter | 12 mm |
| Frame Dimensions | 45 x 168 mm |
| Pneumatic Connection | G 1/8 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
