Festo 2126600 ISO Cylinder
Usado
Em estoque1 unidadePronto para envio
239,99$
ISO Cylinder
FESTO DSBC-80-300-PPVA-N3 ISO Cylinder is a high-performance pneumatic actuator with a 300 mm stroke length, 80 mm piston diameter, and adjustable pneumatic cushioning. Designed for precision motion control and compatibility with proximity sensors, it is ideal for industrial applications requiring durability and efficiency.30080ActingActuatorAdjustableAirControlCushioningCylinderdiameterDoubleFestoHighIndustrialISOmmMotionPistonPneumaticPrecisionStroke
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

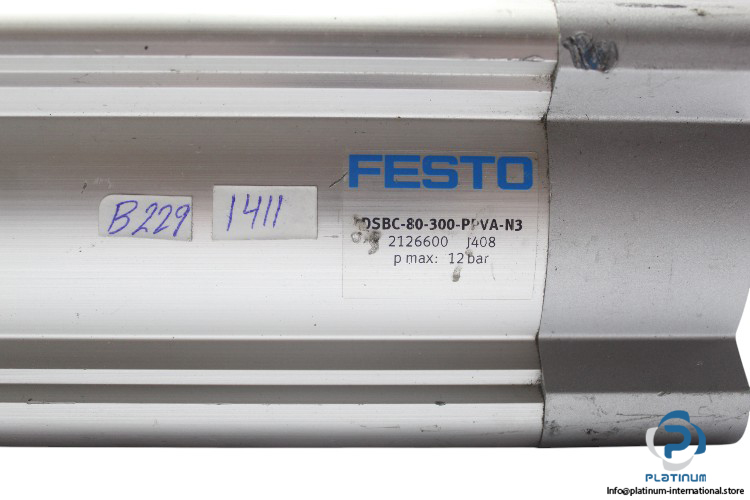

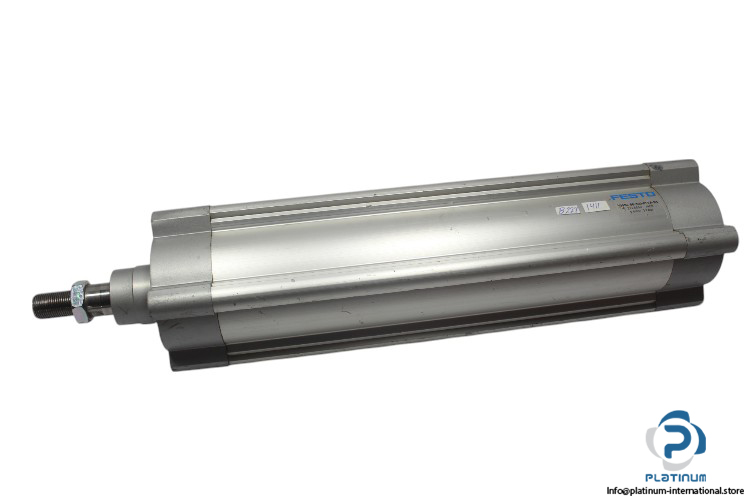

FESTO DSBC-80-300-PPVA-N3 ISO Cylinder
The FESTO DSBC-80-300-PPVA-N3 ISO Cylinder is a high-performance pneumatic actuator designed for precise and efficient motion control. With a stroke length of 300 mm and a piston diameter of 80 mm, it is engineered for demanding industrial applications. Featuring adjustable pneumatic cushioning and compatibility with proximity sensors, this double-acting cylinder ensures smooth operation, durability, and reliable performance.
- Manufacturer: FESTO
- Type: ISO Cylinder
- Model: DSBC-80-300-PPVA-N3
- Part No.: 2126600
Technical Specifications
- Stroke Length: 300 mm
- Piston Diameter: 80 mm
- Piston Rod Thread: M20x1.5
- Fluid: Air
- Cushioning: Pneumatic cushioning, adjustable at both ends
- Position Sensing: For proximity sensor
- Variants: Piston rod at one end
- Max. Operating Pressure: 12 bar
- Mode of Operation: Double Acting
- Material of Cylinder Barrel: Wrought aluminum alloy, smooth-anodized
- Pneumatic Connection: G3/8
- Ambient Temperature: -20 °C / 80 °C
