Festo 27930 Single Acting Cylinder
Novo
Em estoque6 unidadesPronto para envio
Single Acting Cylinder
The Festo AVL-20-10-Z-SA-21070 single acting cylinder features a 20 mm piston diameter and 10 mm stroke. Constructed with anodized aluminum housing and a stainless steel piston rod, it provides efficient operation in pneumatic systems with compressed air.20ActingAirAluminumAnodizedAVL-20-10-Z-SA-21070CompressedCylinderFestommPistonPneumaticRODSinglestainlessSteel
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

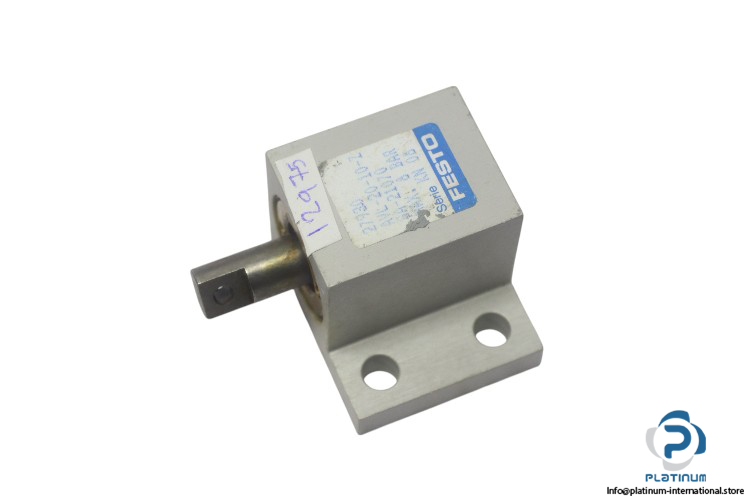

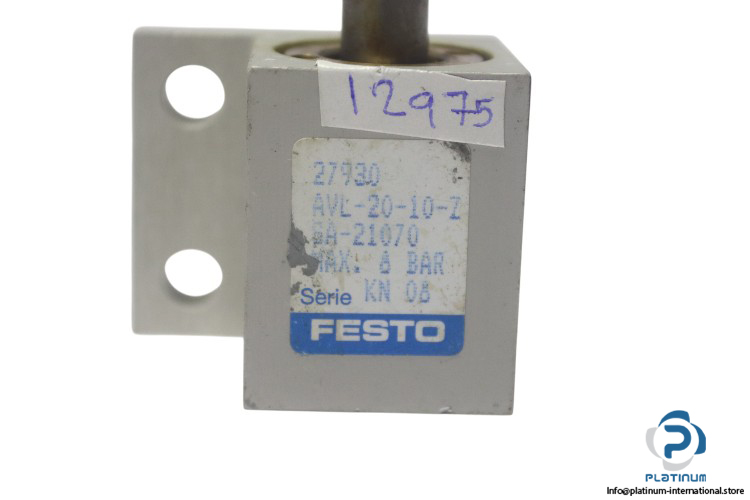

Festo AVL-20-10-Z-SA-21070 “ Single Acting Cylinder
The Festo AVL-20-10-Z-SA-21070 single acting cylinder is designed for high-performance pneumatic applications, delivering reliable operation with compressed air. Constructed with anodized aluminum housing and a stainless steel piston rod, this cylinder ensures durability and smooth motion in various industrial environments.
Manufacturer: Festo
Type: Single Acting Cylinder
Model: AVL-20-10-Z-SA-21070
Part No: 27930
| Operating Medium | Compressed air |
| Design | Piston |
| Piston Rod End | Single male thread |
| Operating Pressure | max. 8 bar |
| Piston Diameter | 20 mm |
| Stroke | 10 mm |
| Pneumatic Connection | 5 mm |
| Housing Material | Anodized aluminum |
| Material of Dynamic Seals | Perbunan |
| Piston Rod Material | Stainless steel |
| Ambient Temperature Range | -20 to 80°C |
