Festo 34481 Guide Unit
Novo
Disponível sob consulta
GUIDE UNIT
FESTO FENG-32-500-GF guide unit with 500 mm stroke and recirculating ball bearing guide, built for high-load linear motion applications.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

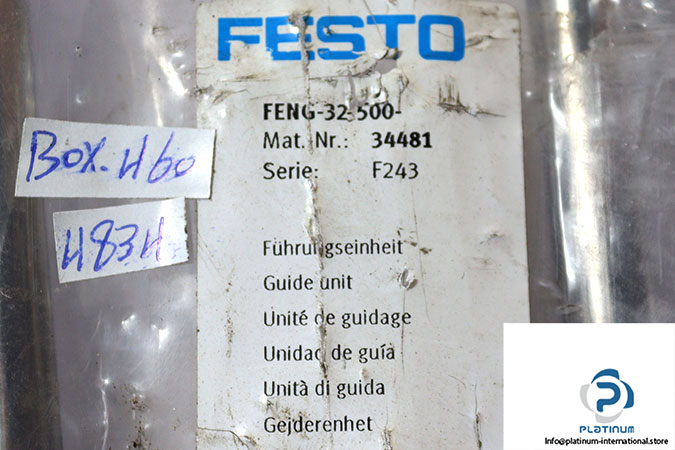

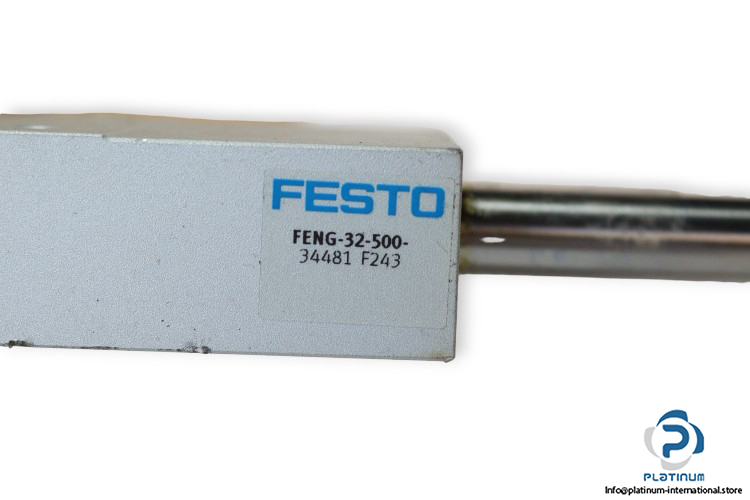

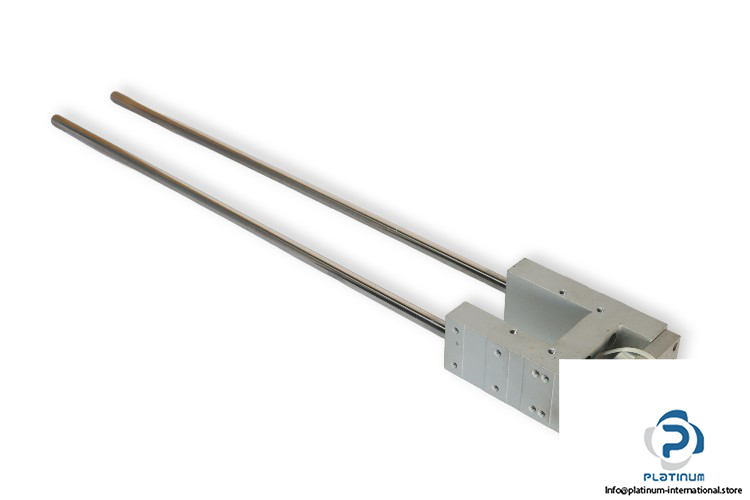

FESTO FENG-32-500-GF GUIDE UNIT
The FESTO FENG-32-500-GF is a high-performance guide unit engineered for demanding linear motion applications. With a robust anodized aluminum housing and a precision recirculating ball bearing guide, it ensures optimal stability, durability, and smooth movement.
Manufacturer: FESTO
Type: Guide Unit
Model: FENG-32-500-GF
Part No.: 34481
| Size | 32 |
| Stroke | 500 mm |
| Guide | Recirculating Ball Bearing Guide |
| Force Fy Max. | 750 N |
| Force Fy static Max. | 1020 N |
| Force Fz Max. | 750 N |
| Force Fz static Max. | 1020 N |
| Torque Mx Max. | 28 Nm |
| Static Moment Mx Max. | 38 Nm |
| Housing Material | Wrought Aluminum Alloy, Anodized |
| Temperature Range | -20 / 80 °C |
