Sensors & Measurement Sensors

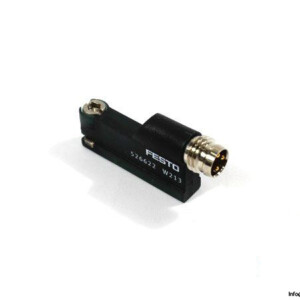

Festo 526622 Proximity Switch

Name: FESTO 526622 PROXIMITY SWITCH
SKU: 1062792
Availability: LimitedAvailability

Usado

Em estoque2 unidadesPronto para envio

Proximity Switch

The FESTO SME-8-SL-LED-24 Proximity Switch features a reed magnetic measuring principle, compact M8 connector, and IP65/IP67 protection. With a wide operating voltage range of 10 / 30 V DC, it is ideal for industrial applications.

SKU

1062792

Categoria

Sensors

Condição

Usado

+GF+10 3-pin 30 40 60 Ambient C Connector Contact dc Festo IP65 IP67 M8 Magnetic Normally Open Operating PNP Protection Proximity Reed SME-8-SL-LED-24 Switch Temperature V voltage

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

FESTO SME-8-SL-LED-24 Proximity Switch

The FESTO SME8SLLED24 Proximity Switch is a high-performance reed magnetic switch designed for reliable detection in a variety of industrial applications. Featuring a compact M8 connector and high protection ratings, this proximity switch offers durability and accurate switching in harsh environments.

Manufacturer: FESTO

Type: Proximity Switch

Model: SME-8-SL-LED-24

Part No.: 526622

Measuring Principle	Reed Magnetic
Operating Voltage	10 / 30 V DC
Contact	PNP Normally Open (NO)
Switching Current Max.	200 mA
Switching Power Max.	10 VA
Electrical Connection	Connector M8x1, A-Coded, 3-Pin
Protection Class	IP65 / IP67
Ambient Temperature	-40 / 60 °C
