Festo 532752 ISO Cylinder
Novo
Em estoque5 unidadesPronto para envio
ISO Cylinder
FESTO DNCB-50-50-PPV-A ISO Cylinder is designed for high-precision pneumatic applications. With a 50 mm bore and 50 mm stroke, it ensures efficient motion control. Its double-acting operation, male piston rod end, and G 1/8 pneumatic connection make it ideal for industrial automation.1/850mmActuatorAutomationboreconnectioncontroControlCylinderDNCB-50-50-PPV-Adouble-actingFestoGhigh-performanceIndustrialISOMotionPneumaticPrecisionStroke
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

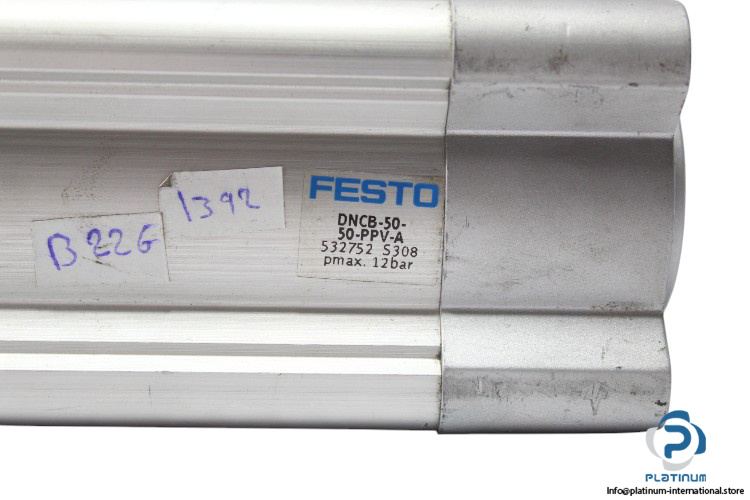

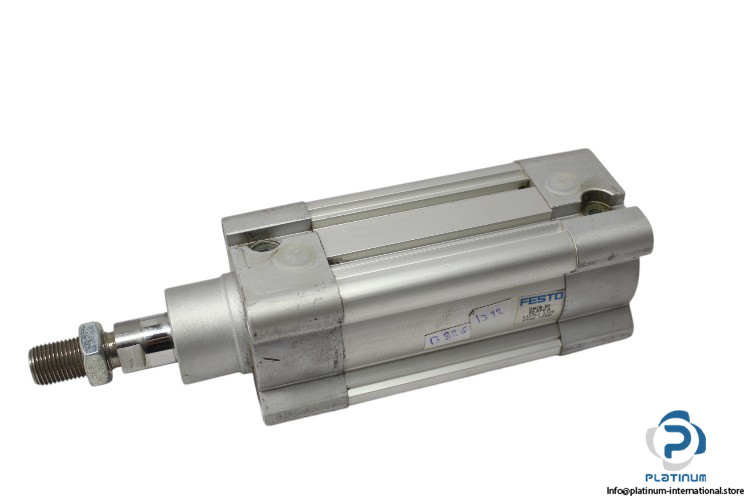

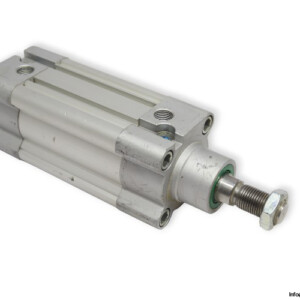

FESTO DNCB-50-50-PPV-A ISO Cylinder
The FESTO DNCB-50-50-PPV-A ISO Cylinder is a high-performance pneumatic actuator designed for precision applications in industrial automation. Engineered to ISO standards, it delivers reliable and efficient motion control for a wide range of pneumatic systems.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DNCB-50-50-PPV-A
Part No.: 532752
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 50 mm |
| Bore x Stroke | 50 x 50 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 64 x 190 mm |
| Pneumatic Connection | G 1/8 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
