Festo 537983 Electronics Module
Usado
Em estoque4 unidadesPronto para envio
ELECTRONICS MODULE
FESTO VMPA2-FB-EMS-4 electronics module for pneumatic valve control with diagnostics and energy-efficient current management.AirAutomationcoilControlControllerDiagnosticElectronicsFestoIndustrialModulePneumaticsolenoidValveVMPA2VMPA2-FB-EMS-4
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

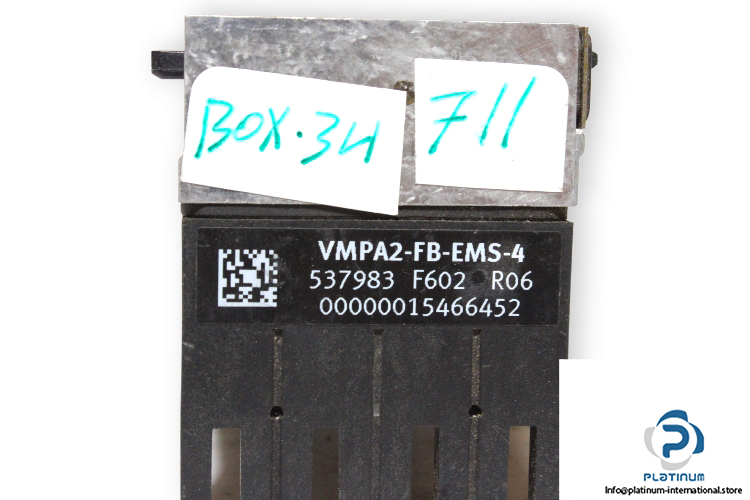

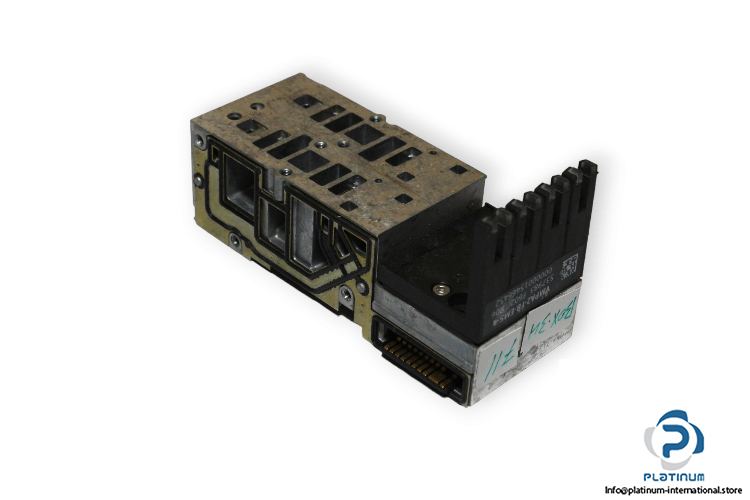

FESTO VMPA2-FB-EMS-4 ELECTRONICS MODULE
The FESTO VMPA2-FB-EMS-4 is a reliable electronics module designed to control solenoid valves in pneumatic systems. It provides diagnostic capabilities and optimized current consumption for efficient and accurate operation.
Manufacturer: FESTO
Type: Electronics Module
Model: VMPA2-FB-EMS-4
Part No.: 537983
| Fluid | Air |
| Diagnostics | Undervoltage of Pneumatic Valves |
| Valve Positions No. Max. | 2 |
| Solenoid Coils No. Max. | 4 |
| Intrinsic Current Consumption at Operating Voltage | 8 mA |
| Nominal Pick-Up Current Per Solenoid Coil | 99 mA to 24 ms |
| Nominal Current with Current Reduction | 18 mA after 24 ms |
