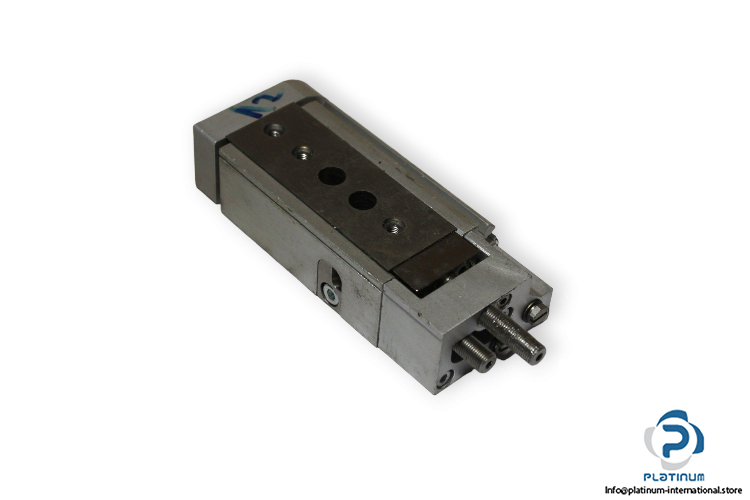

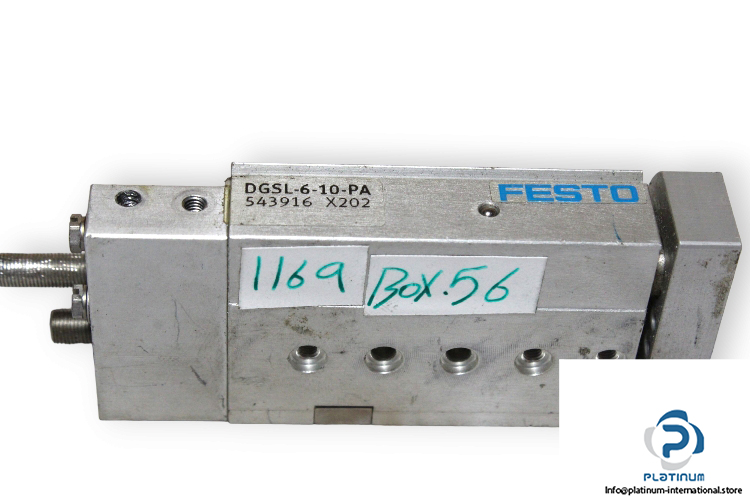

Festo 543916 Mini Slide

Manufacturer: FESTO
Type: Mini slide
Model: DGSL-6-10-PA
Part No.: 543916

Stroke: 10 mm
Adjustable end position range/length front: 16.5 mm
Adjustable end position range/length rear: 15 mm
Piston diameter: 8 mm
Cushioning: Elastic cushioning rings/plates at both ends
Guide: Ball bearing cage guide
Position detection: Via proximity switch
Operating pressure: 1.5 bar … 8 bar
Max. speed: 0.5 m/s
Repetition accuracy: 0.3 mm
Mode of operation: Double-acting
Operating medium: Compressed air
Pneumatic Connection: 3 mm
Temperature: 0 °C … 60 °C
