Festo 6809 Stem Actuated Valve

Name: FESTO 6809 STEM ACTUATED VALVE
SKU: 1061601
Availability: LimitedAvailability

Usado

Em estoque1 unidadePronto para envio

Stem Actuated Valve

FESTO Stem Actuated Valve V-5-1/4 B is designed for controlling air fluid with mechanical actuation. It features a 550 l/min nominal flow rate, operating pressure of -0.95 to 10 bar, and durable die-cast aluminum construction for reliable performance in industrial applications.

SKU

1061601

Categoria

Pneumatic Valves

Condição

Usado

0.95 1/4 10 182 550 Actuated Actuation Air Aluminum B bar Control die-cast Festo flow Fluid Force G Industrial l/min Mechanical N Nominal Operating Port Pressure Rate Size Stem to V-5-1/4 Valve

Novo Disponível sob consulta

Este produto também está disponível novo

Ver Nova Versão →

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

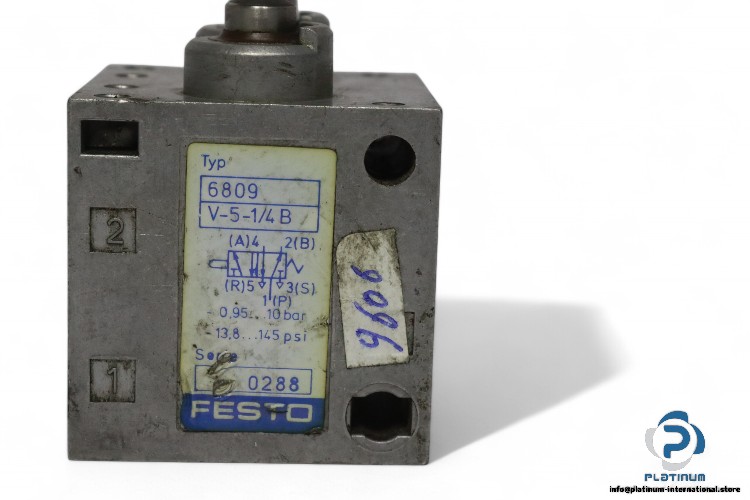

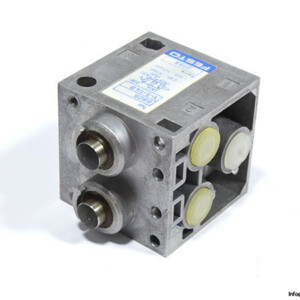

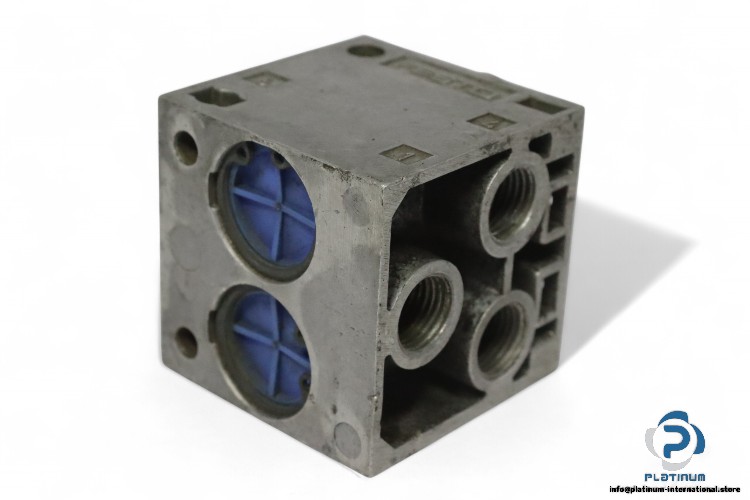

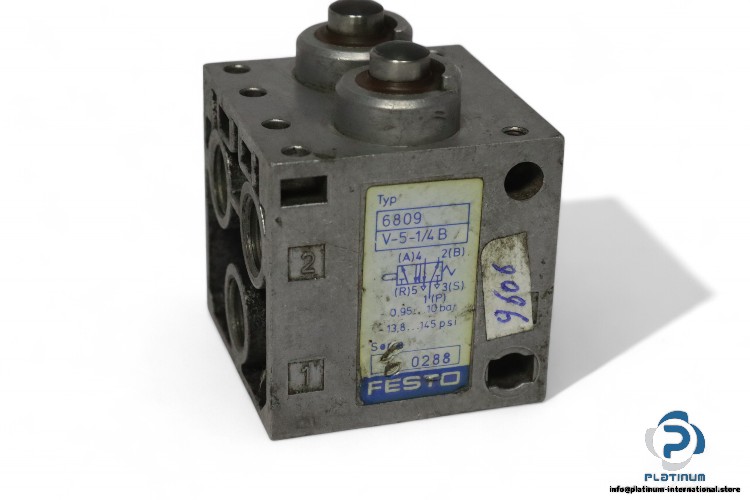

FESTO Stem Actuated Valve V-5-1/4 B

The FESTO Stem Actuated Valve V-5-1/4 B is a highly reliable valve designed for controlling air fluid with mechanical actuation. This valve is constructed from durable die-cast aluminum, ensuring optimal performance and longevity even under varying operating conditions.

Manufacturer: FESTO

Type: Stem Actuated Valve

Model: V51/4B

Part No.: 6809

Technical Specifications

Fluid: Air
Actuation Type: Mechanical
Standard Nominal Flow Rate: 550 l/min
Operating Pressure: -0.95 / 10 bar
Actuating Force: 182 N
Port Size: G 1/4
Material: Die-Cast Aluminum
Nominal Width: 7 mm
Ambient Temperature: -10 / 60 °C
