Finder 87.02 Modular Timer

Em estoque1 unidadePronto para envio

Modular Timer

Finder 87.02 modular timer with 2 CO (DPDT) contacts, multi-function and multi-voltage design, 8/30 A current rating, and time range from 0.05 sec to 60 h for precise industrial timing applications.

Fabricante
FINDER
SKU
1074897
Categoria
Timers
Condição
Usado
Compartilhar
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

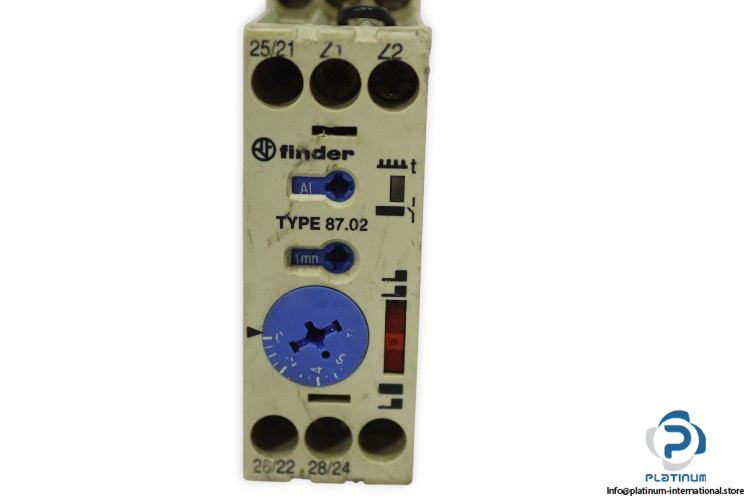

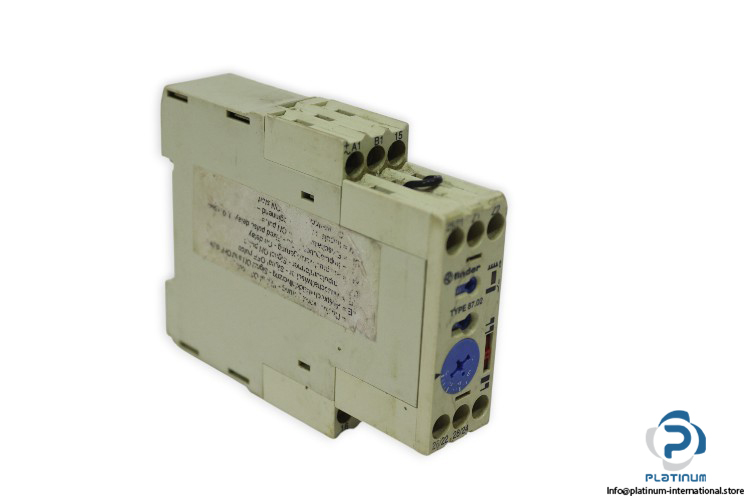

Finder 87.02 Modular Timer

The Finder 87.02 modular timer from the 87 series is a multifunctional, multi-voltage device designed for precise timing control in industrial applications. With robust construction and versatile settings, it offers reliable operation for automation systems.

Manufacturer: Finder

Type: Modular Timer

Model: 87.02

Series: 87

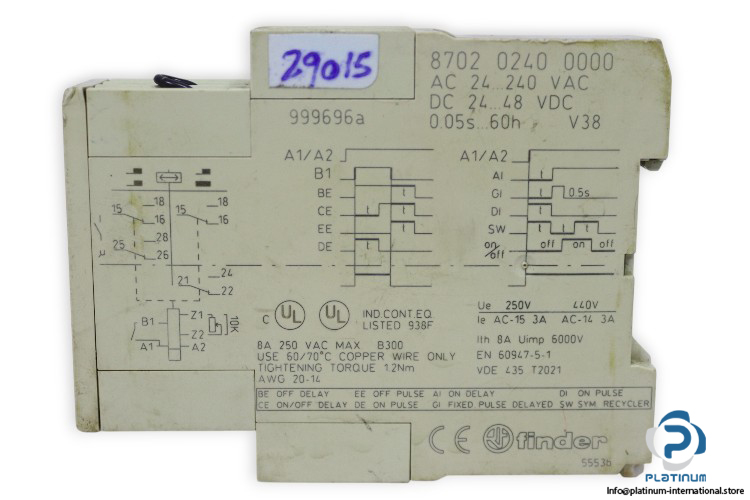

Ref No.: 8702 0240 0000 / 999696a

Poles2 Pole - Multi-function and Multi-voltage
Contact Configuration2 CO (DPDT)
Rated Current / Max Peak Current8/30 A
Rated Voltage / Max Switching Voltage250/400 VAC
Rated Load AC12,000 VA
Rated Load AC15 (230 V AC)400 VA
Single Phase Motor Rating (230 V AC)0.185 kW
Breaking Capacity DC130/110/220 V: 8/0.5/0.2 A
Minimum Switching Load300 (10/5) mW (V/mA)
Standard Contact MaterialAgCdO
Nominal Voltage (UN) AC (50/60 Hz)24 / 240 V
Nominal Voltage (UN) DC24 / 48 V
Rated Power AC/DC (50 Hz)5/0.5 W
Time Range0.05 sec “ 60 h
