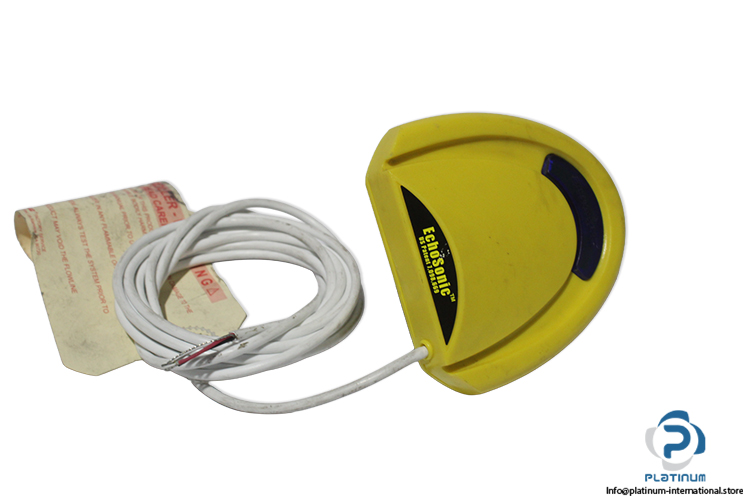

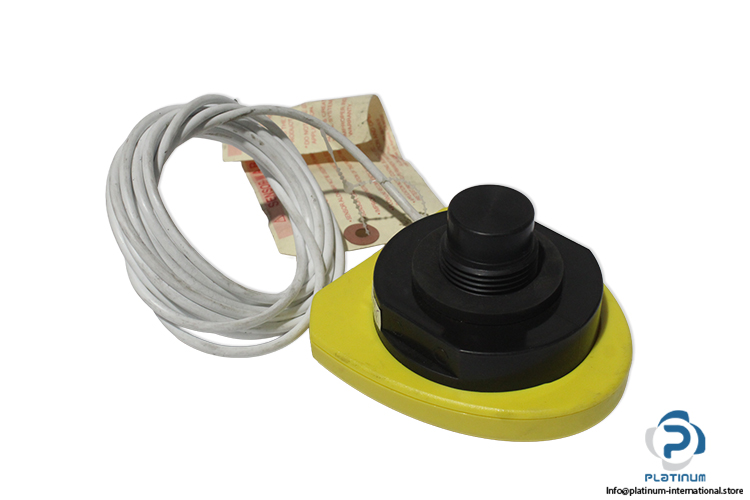

Flowline LU12-5061 Ultrasonic Level Transmitter
Novo
Em estoque2 unidadesPronto para envio
Ultrasonic Level Transmitter Flowline EchoSonic two-wire ultrasonic level transmitter with a 10 cm to 3 m sensing range, 4-20 mA output and ±0.2% accuracy.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
| Series | EchoSonic |

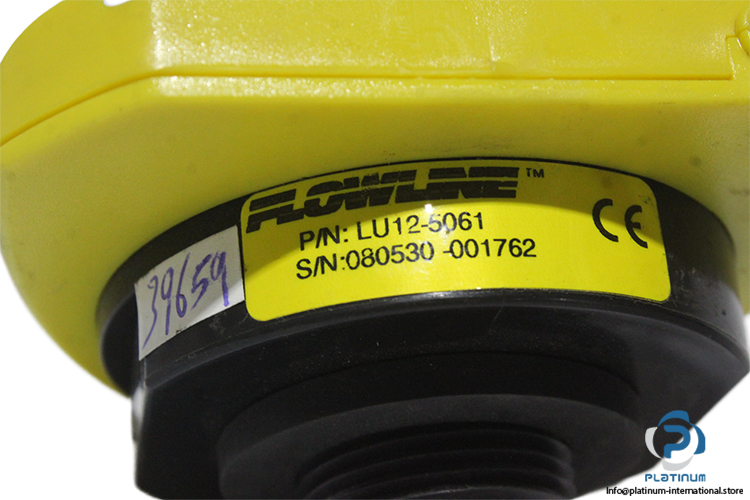

| S/N | 080530-001762 |
| Sensing Range | 10 cm to 3m |
| LED indication | Power, calibration and diagnostics |
| Memory | Non-volatile |
| Supply voltage | 12 to 28 VDC |
| Loop resist. | 500 Ohms @ 24 VDC |
| Signal output | 4-20 mA, two-wire |
| Signal invert | 4-20 Ma or 20-4 mA |
| Calibration | Target, calibration wire |
| Fail-safety | Reverts to 22 mA |
| Accuracy | ±0.2% |
| Process temp. | F: -4°to 140° / C: -20°to 60° |
| Temp. comp. | Automatic |
| Electronics temp. | F: -40°to 160° / C: -40°to 71° |
| Pressure | 30 psi (2 bar) @ 25°C., derated @ 0.857 psi |
| Enclosure rating | NEMA4X - encapsulated, corrosive |
| Encl. material | PC/ABS FR |
| Trans. material | PVDF |
| Cable jacket mat. | 50_1: PP |
| Cable length | 50_1: 10' (3m) |
| Conduit entrance | 51_1: Dual, 1/2" NPT |
| Process mount | LU05/12: 1" NPT(1" G) |
| Mount. gasket | Viton® Classification: General purpose |
| CE compliance | EN 61326 EMC |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101076 |
| Weight | 0,35 |
