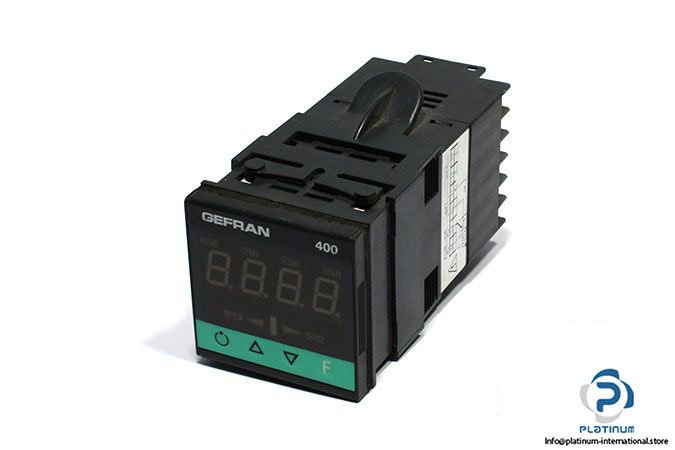

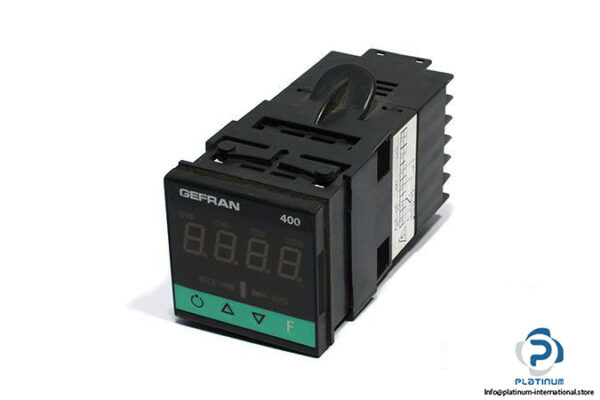

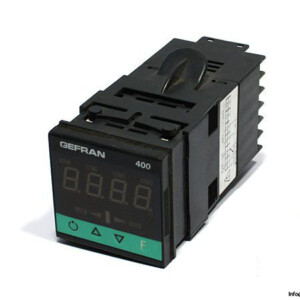

Gefran 400-DR-0-000 Microprocessor Controller

Manufacturer:

Type: Single Display Controller

Model: 400-DR-0-000

Main applications

• Packaging machinery
• Goldsmiths’ ovens and machinery
• Presses for rubber
• Labelling machinery
• Food processing plants
• Magnetic cards printing machines

Uses: The main input for the process variable is universal and  Provides the possibility to connect many types of input sensor:

• Thermocouple type J, K, R, S, T, B, E, N
• Resistance thermometer PT100 3-wires
• Thermistor PTC
• Linear inputs 0…60mV, 12…60mV,

0…20mA, 4…20mA, 0…10V, 2…10V

Power supply Standard: 100 … 240 V AC(11 … 27 V AC Optional)

Protection: IP65

Dimensions: 48 x 48 mm

Weight: 0.220 kg
