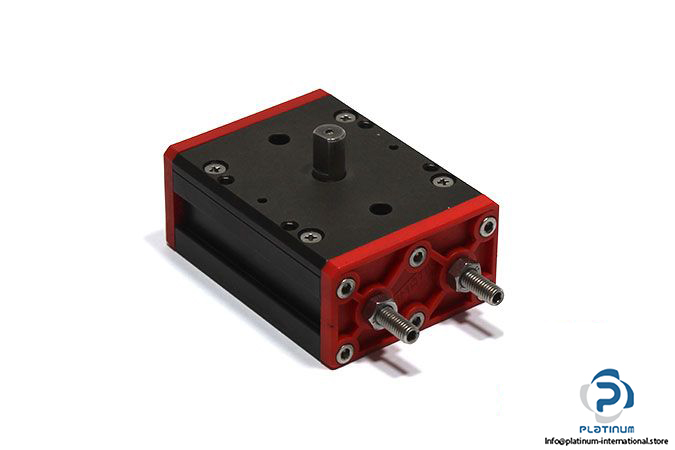

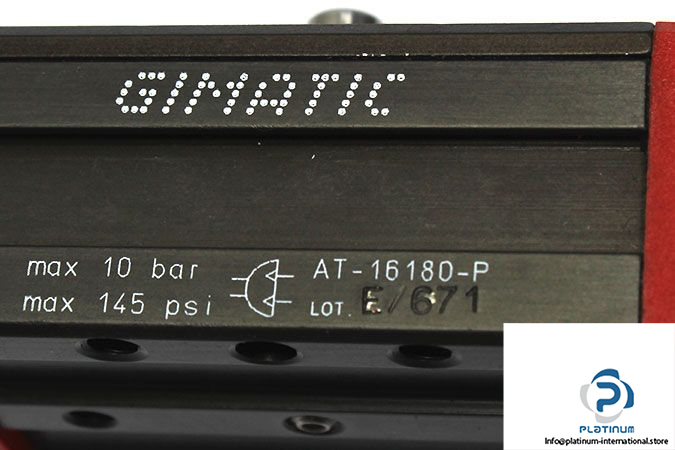

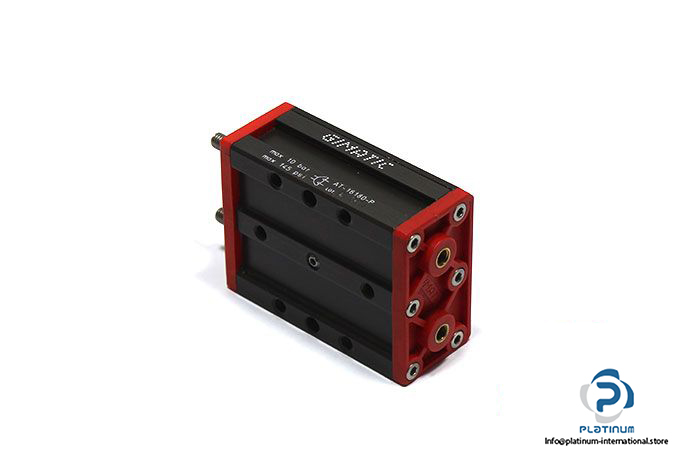

Gimatic AT-16180-P Rotary Actuator

Manufacturer: Gimatic

Type: Rotary Actuator

Model: AT-16180-P

Air Connection: M5 x 0.8

Shock Absorption: Damping plates

Turning Angle: -3 ° -183 °

Max. Operating Frequency: 2 Hz

Operating Pressure: 2…10 bar

Permitted Turning Time: 0.05s / 180 °

Filtering Rate: 5…40 µm

Fluid: Air

Cylinder Diameter: 16 mm

Shaft Diameter: 8 mm

Operating Temperature: 5…60 °C

Material: Aluminum

Weight: 0.225 kg
