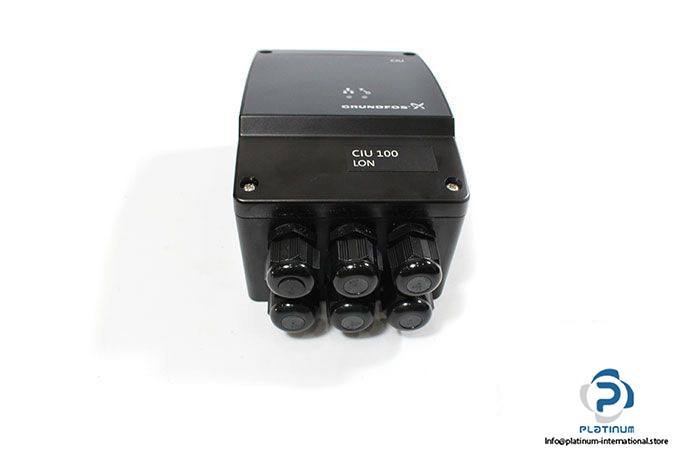

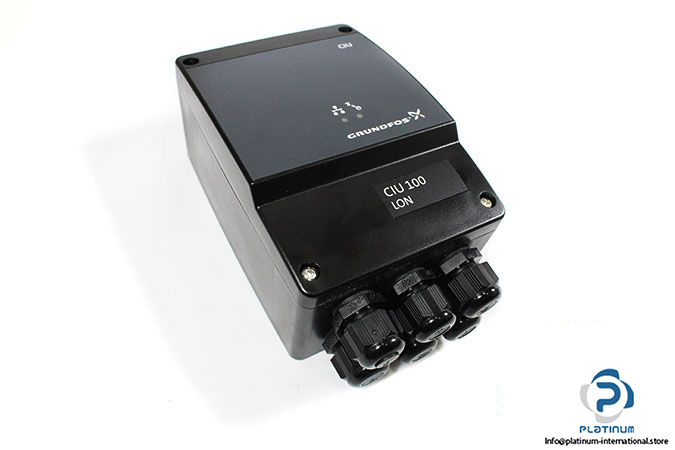

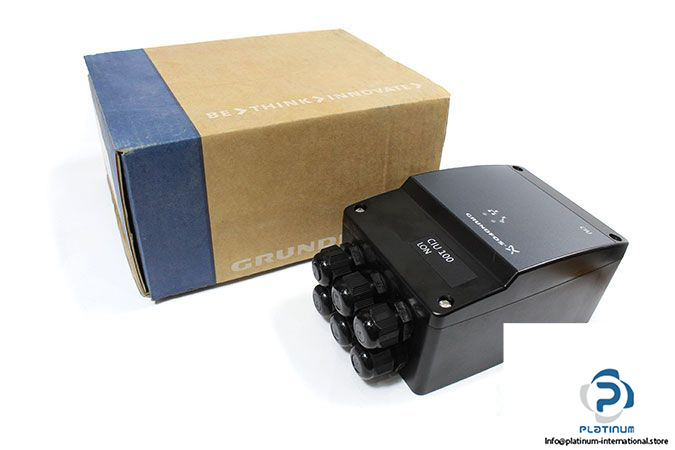

Grundfos CIU 100 Communication Interface Unit

Manufacturer: Grundfos
Type: Communication Interface Unit

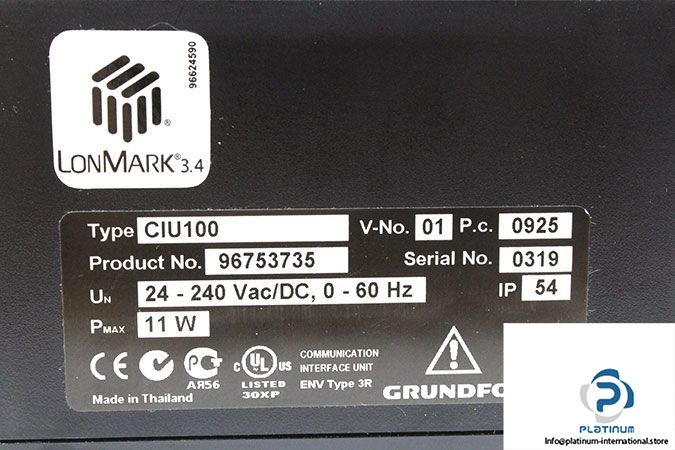

Model: CIU100

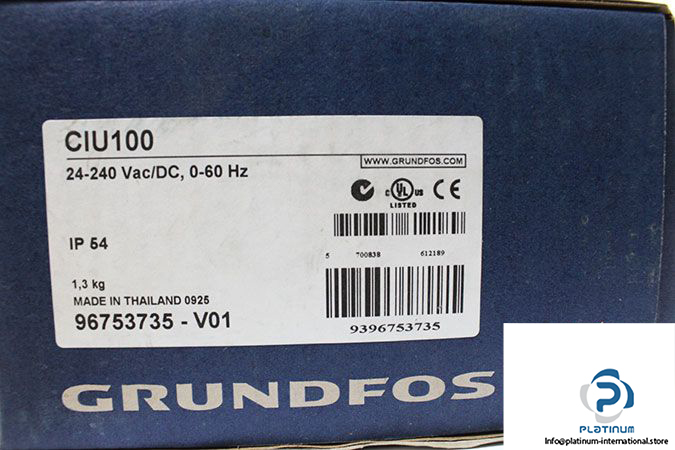

product No.: 96753735-V01
Production Code: 0925

Features:
Based on standard functional profiles
Prepared for future communications standards
Supports a wide range of Grundfos products
Easy to install and commission
Flexible power supply
Application: CIM/CIU 100 is mainly used for HVAC applications, heating, ventilation, and air conditioning
Supply Voltage: 24 … 240 V AC/DC
Max. Power Consumption: 11 W
Transceiver: RS-485
Cable size: 0.2 … 4 mm²
Recommended cable type: Double twisted-pair cross- section ( 0.25 – 1 mm2 )
Max. Cable length: 1200 m ( 4000 ft )
transmission speed: 9600 bits/s
Protection Class: IP 64
Frequency: 0 … 60 Hz
Operating Temperature: -20 … 45 °C
Dimensions ( length x width x height ): 151 x 106  x 82 mm
