Heidenhain ROD-320.002-2000 Incremental Encoder
500,00$
ENCODER INCREMENTAL HEIDENHAIN ROD-320.002-2000 fornece resolução precisa de 2000 PPR com saída de sinal TTL e suporta até 8500 rpm, projetado para sistemas de controle de movimento CNC industriais.

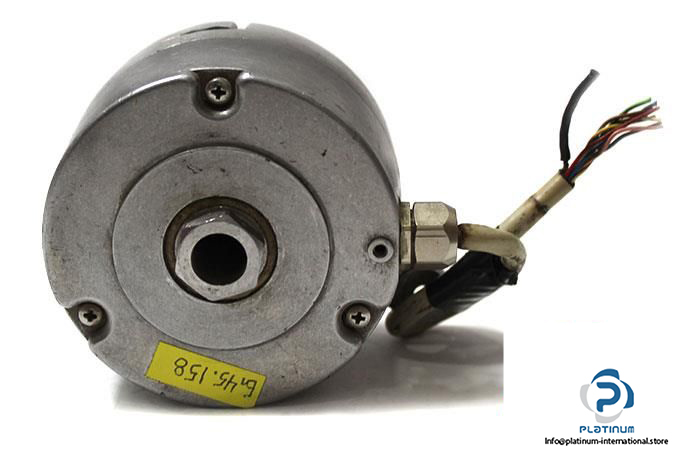

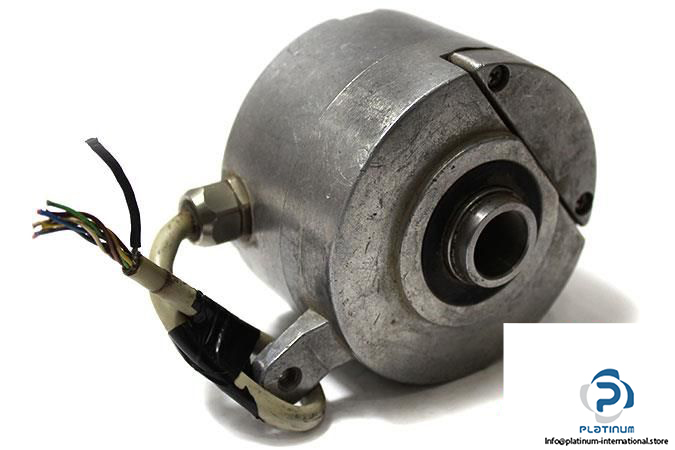

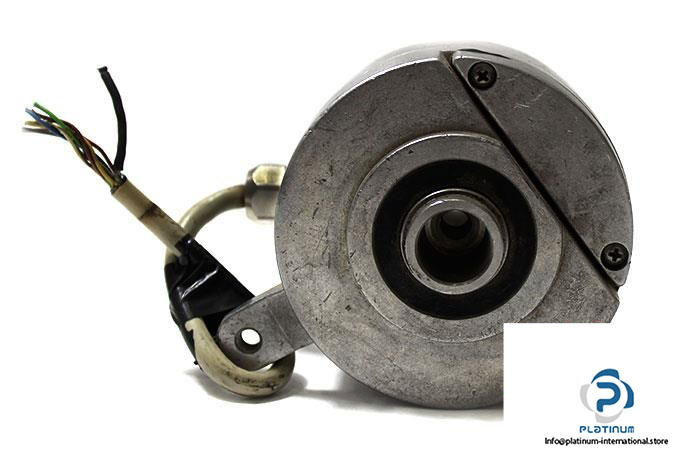

HEIDENHAIN ROD-320.002-2000 INCREMENTAL ENCODER
Engineered for high-precision feedback in motion control systems, the HEIDENHAIN ROD-320.002-2000 incremental encoder is a robust and reliable choice, particularly suited for CNC machine industries. It offers outstanding resolution, high-speed performance, and reliable signal output, making it ideal for demanding industrial applications.
Manufacturer: HEIDENHAIN
Type: Incremental Encoder

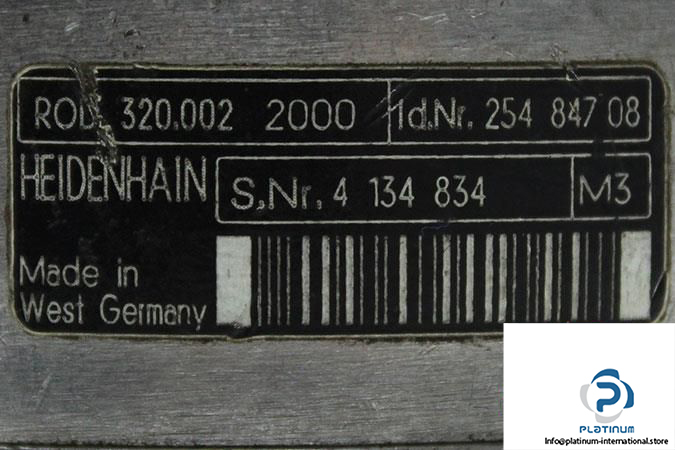

Model: ROD-320.002-2000
ID No.: 254 847 08
Serial No.: 4 134 834
Installed for: Mostly on CNC machine industry
| Shaft Design | Hollow Shaft |
| Shaft Diameter | 15 mm |
| Voltage Supply | 5 VDC |
| Resolution | 2000 Pulses per Revolution (PPR) |
| Max. Current Consumption | 150 mA |
| Signal Output | TTL (RS 422) |
| Max. Speed | 8500 rpm |
| Max. Pulse Frequency | 300 kHz |
| Protection Class | IP 64 |
| Max. Temperature | 100 °C |
