Heidenhain ROD 426.001B-400 Incremental Encoder

Name: HEIDENHAIN ROD 426.001B-400 INCREMENTAL ENCODER
Brand: HEIDENHAIN
SKU: 966120
Price: 255.00 USD
Availability: InStock

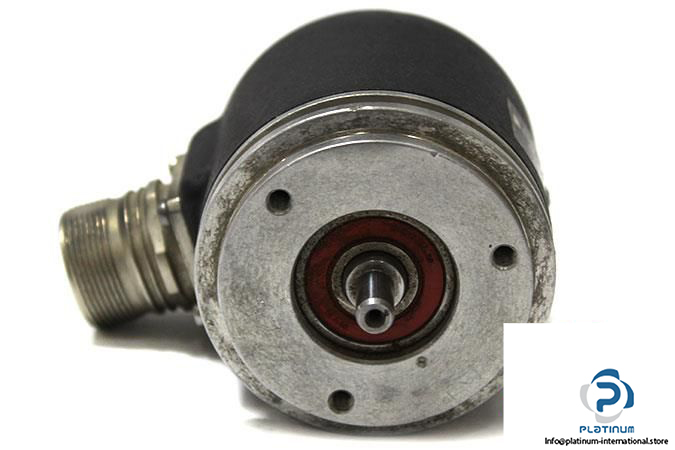

heidenhain-rod-426001b-400-incremental-encoder3_675x450

heidenhain-rod-426001b-400-incremental-encoder4_675x450

heidenhain-rod-426001b-400-incremental-encoder5_675x450




Usado

Em estoque1 unidadePronto para envio

255,00$

ENCODER INCREMENTAL HEIDENHAIN ROD 426.001B-400 oferece resolução de 400 PPR com saída TTL (RS 422), eixo sólido de 6 mm e proteção de carcaça IP67, ideal para sistemas de alta velocidade e precisão.

Fabricante

HEIDENHAIN

SKU

966120

Categoria

Rotary Encoders

Condição

Usado

400 426.001B-400 Encoder Heidenhain High Incremental Industrial IP67 Motion PPR Precision ROD RS422 shaft Solid Speed TTL

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

HEIDENHAIN ROD 426.001B-400 INCREMENTAL ENCODER

The HEIDENHAIN ROD 426.001B-400 is a high-precision incremental encoder engineered for speed and accuracy in motion control applications. Featuring robust construction and a compact design, this encoder is ideal for demanding industrial environments.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

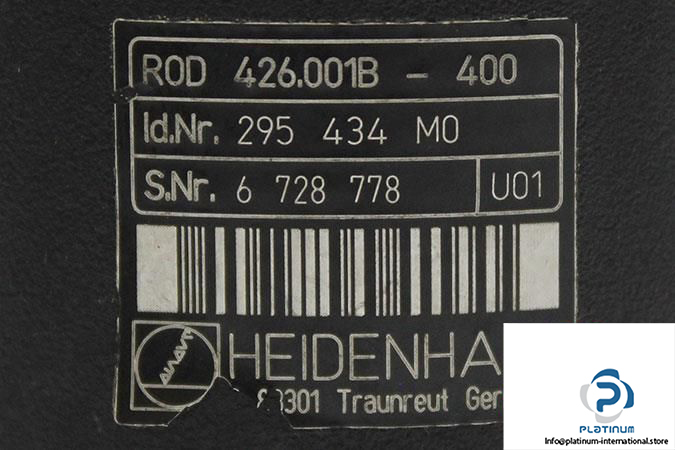

Model: ROD 426.001B-400

ID No.: 295 434 M0

Serial No.: 6 728 778

Flange Design	Synchro Flange
Shaft Design	Solid Shaft
Shaft Diameter	6 mm
Voltage Supply	5 VDC
Resolution	400 Pulses per Revolution (PPR)
Max. Current Consumption	120 mA
Signal Output	TTL (RS 422)
Max. Speed	16,000 rpm
Max. Pulse Frequency	300 kHz
Protection Class	IP67 at Housing, IP64 at Shaft Inlet
Max. Temperature	100¯°C
