Hengstler RI58-O/1000-E-K.42-K-D Incremental Encoder

Name: HENGSTLER RI58-O/1000-E-K.42-K-D INCREMENTAL ENCODER
SKU: 1077125
Price: 199.99 USD
Availability: InStock

hengstler-RI58-O_1000-E-K.42-K-D-incremental-encoder-(new)

hengstler-RI58-O_1000-E-K.42-K-D-incremental-encoder-(new)-1

hengstler-RI58-O_1000-E-K.42-K-D-incremental-encoder-(new)-2

hengstler-RI58-O_1000-E-K.42-K-D-incremental-encoder-(new)-3

hengstler-RI58-O_1000-E-K.42-K-D-incremental-encoder-(new)-4

Novo

Em estoque2 unidadesPronto para envio

199,99$

INCREMENTAL ENCODER

The Hengstler RI58-O/1000-E-K.42-K-D is a 58 mm industrial-grade incremental encoder with 1000 PPR resolution and IP65 protection, ideal for precise motion control applications.

Fabricante

HENGSTLER

SKU

1077125

Categoria

Rotary Encoders

Condição

Novo

1000 Automation Clamping Control Encoder Feedback Flange Hengstler Incremental Industrial IP65 Motion Output PPR Precision Push-Pull Sensor shaft

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

HENGSTLER RI58-O/1000-E-K.42-K-D INCREMENTAL ENCODER

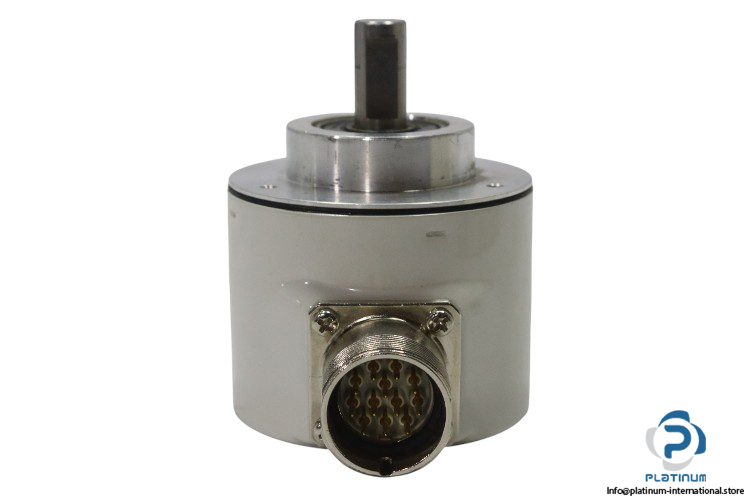

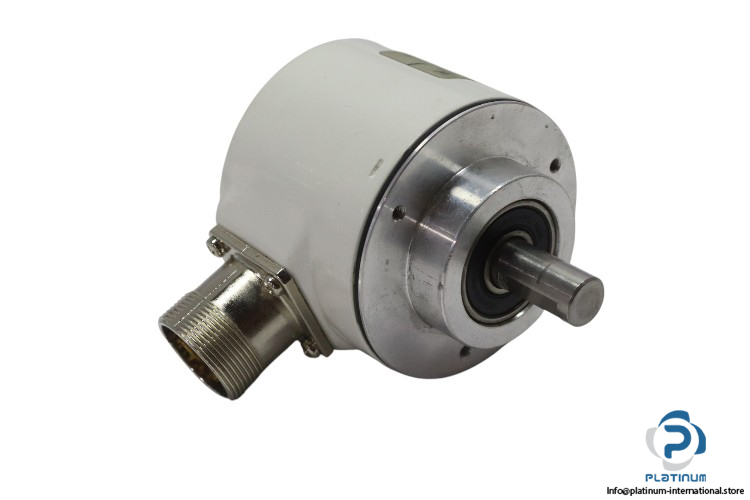

The Hengstler RI58-O/1000-E-K.42-K-D is a robust incremental encoder designed for high-resolution positioning and motion feedback in demanding industrial environments. With a resolution of 1000 pulses per revolution and a compact 58 mm housing, this encoder is well-suited for applications requiring precision and reliability.

Manufacturer: Hengstler

Type: Incremental Encoder

Model: RI58-O/1000-E-K.42-K-D

Part No.: 0 522 123

COMAS Part No.: 0.519.305.801.001

Shaft Diameter	10 mm
Housing Diameter	58 mm
Flange Type	Clamping Flange
Resolution	1000 PPR (Pulses Per Revolution)
Connection	M23 Connector (Conin), 12 Pole
Voltage Supply	10 - 30 V DC
Protection Class	IP65
Output	Push-pull
Operating Temperature	-10 / 70 °C
