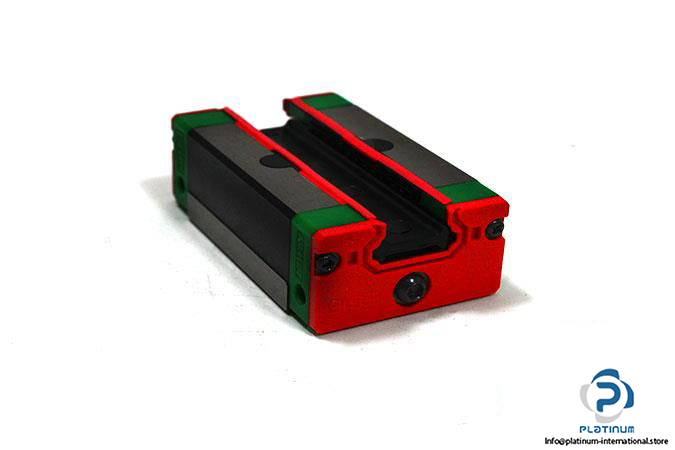

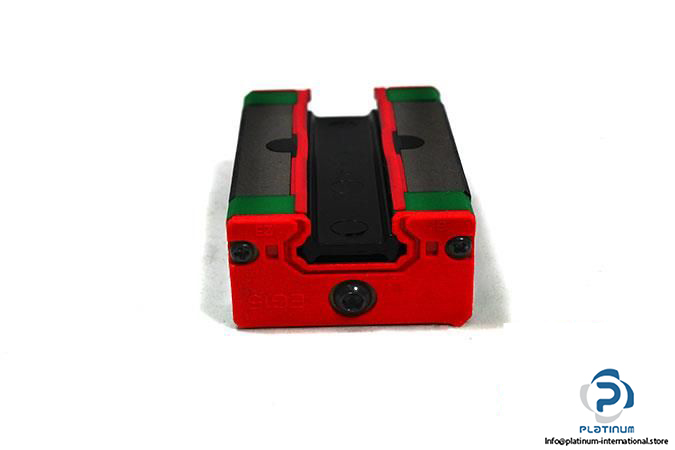

Hiwin EGH15CA Linear Guideway Block
Novo
Em estoque103 unidadesPronto para envio
42,96$
Bloco guia linear para cargas pesadas da Hiwin com tamanho de trilho de 15 mm, corpo quadrado e configuração de montagem superior, proporcionando estabilidade e altas classificações de carga para sistemas de movimento industrial.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

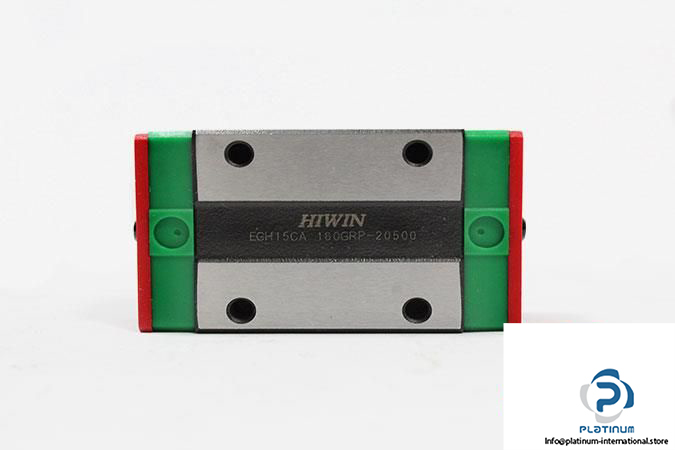

HIWIN EGH 15CA 160GRP-20500 LINEAR GUIDEWAY BLOCK
This square-type linear guideway block from Hiwin is engineered for heavy-load applications where stability, precision, and top-mounting installation are required. With a compact 15 mm rail size, it delivers excellent load ratings, making it ideal for demanding motion control environments.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGH 15CA 160GRP-20500
| Size | 15 mm |
| Total Height H | 24 mm |
| Block Height | 19.5 mm |
| Distances Between Holes | 26, 26 mm |
| Block Width W | 34 mm |
| Block Length L | 56.8 mm |
| Basic Dynamic Load Rating C | 7.83 kN |
| Basic Static Load Rating C0 | 16.19 kN |
| Rail Width | 15 mm |
| Rail Height | 12.5 mm |
| Block Type | Square |
| Load Type | Heavy Load |
| Block Mounting Type | From Top |
