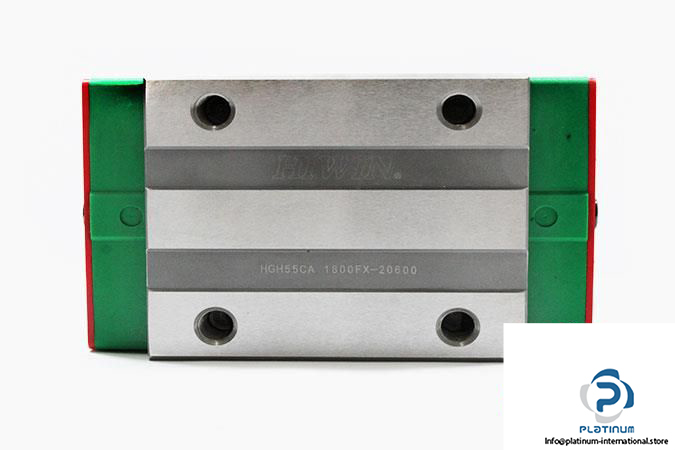

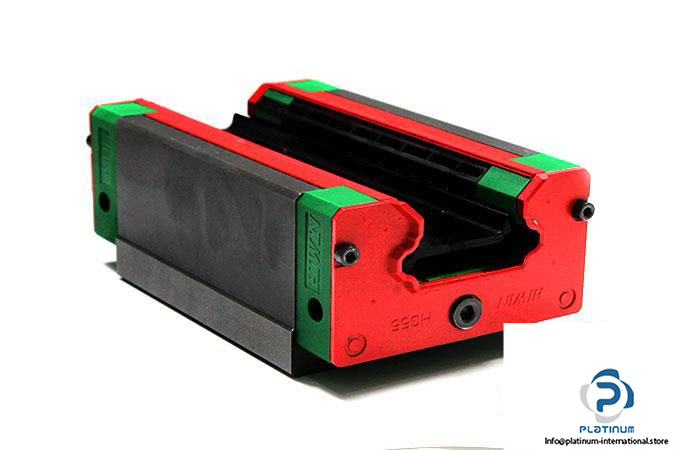

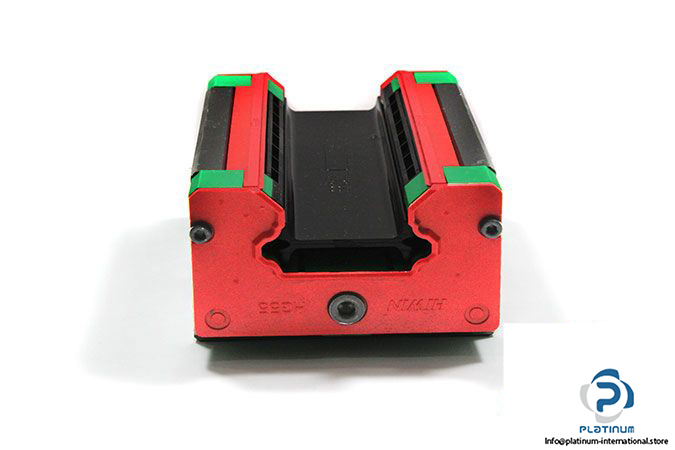

Hiwin HGH55CA Linear Guideway Block
Novo
Em estoque5 unidadesPronto para envio
Bloco guia linear quadrado para serviço pesado da Hiwin, tamanho 55 mm, da Série HG com classificações de carga dinâmica de 153,2 kN e estática de 211,23 kN para sistemas de movimento de alto desempenho.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
HIWIN HGH55CA LINEAR GUIDEWAY BLOCK
This high-load linear guideway block from Hiwin, part of the HG Series, is engineered for demanding industrial applications. With heavy load capacity and square-type construction, it ensures smooth, rigid linear motion performance across various mechanical systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: HGH55CA 1800FX-20600
| Size | 55 mm |
| Block Height | 67 mm |
| System Height | 80 mm |
| Block Width (W) | 100 mm |
| Block Length (L) | 166.7 mm |
| Thread Size | M14 x 45 |
| Distance Between Holes | 75, 75 mm |
| Rail Width | 53 mm |
| Rail Height | 44 mm |
| Block Type | H, Square |
| Load Type | Heavy Load |
| Block Mounting Type | From Top |
| Series | HG Series; Heavy Load Ball Type Linear Guideway |
| Basic Dynamic Load Rating | 153.2 kN |
| Basic Static Load Rating | 211.23 kN |
