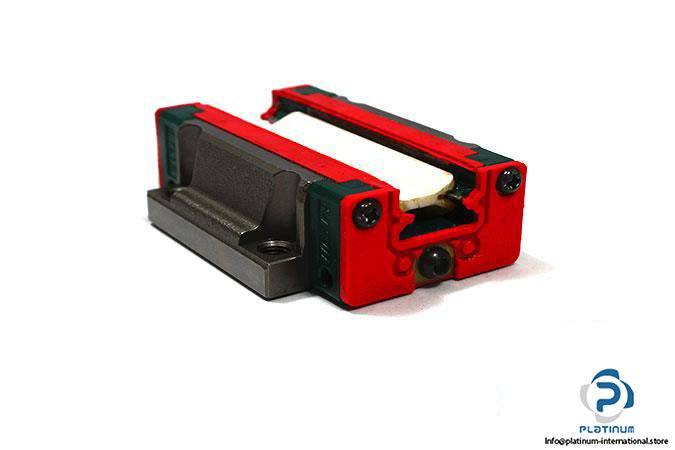

Hiwin LGW15CC Linear Guideway Block
Novo
Em estoque2 unidadesPronto para envio
45,00$
Bloco guia linear Bloco guia linear de alto desempenho de 15 mm da Hiwin com montagem flangeada e capacidade de carga pesada, projetado para sistemas de movimento linear precisos, estáveis e duráveis.
1515CCC51875-4BlockflangedGuideGuidewayHeavyHiwinLGWLinearLoadmmMNRMotionmountPrecisionrailSeriesSystemTop
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

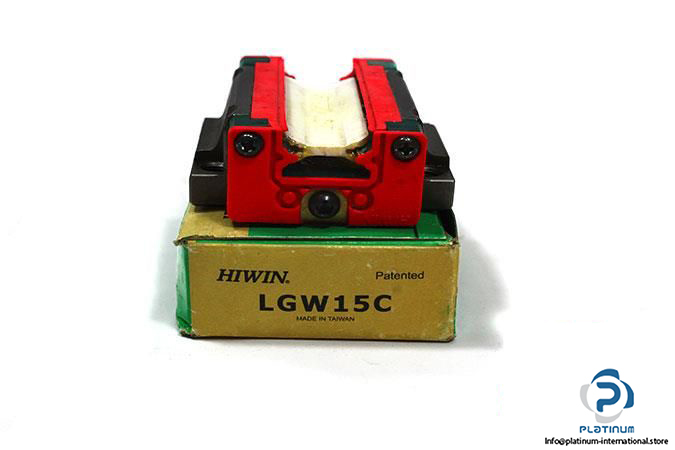

HIWIN LGW 15CCC LINEAR GUIDEWAY BLOCK
Hiwin™s LGW 15CCC linear guideway block is engineered for high-load applications requiring precise motion and stability. Designed with a flanged block for mounting from above, it offers excellent rigidity and reliability in heavy-duty linear motion systems.
Manufacturer: Hiwin
Type: Linear Guideway Block

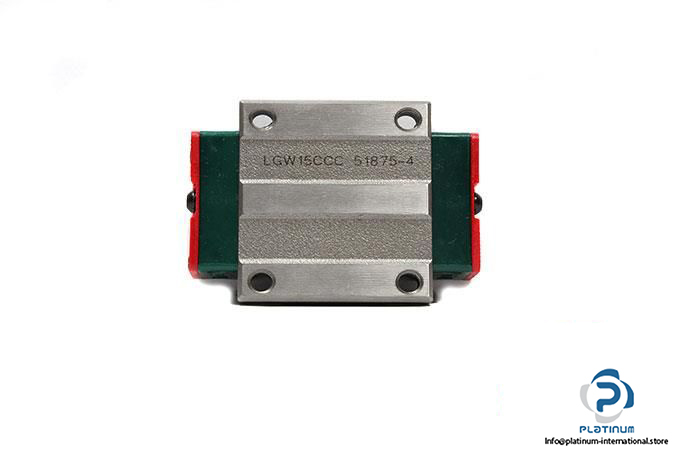

MNR: LGW 15CCC 51875-4
Size: 15 mm
| Block Height | 19.5 mm |
| System Height | 24 mm |
| Block Width (W) | 47 mm |
| Block Length (L) | 60.6 mm |
| Thread Size | M4 x 16 |
| Distance Between Holes | 38 mm, 30 mm |
| Rail Width | 15 mm |
| Rail Height | 14 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | From Above |
| Basic Dynamic Load Rating | 1.04 kgf |
| Basic Static Load Rating | 1.68 kgf |
| Precision Code | C |
