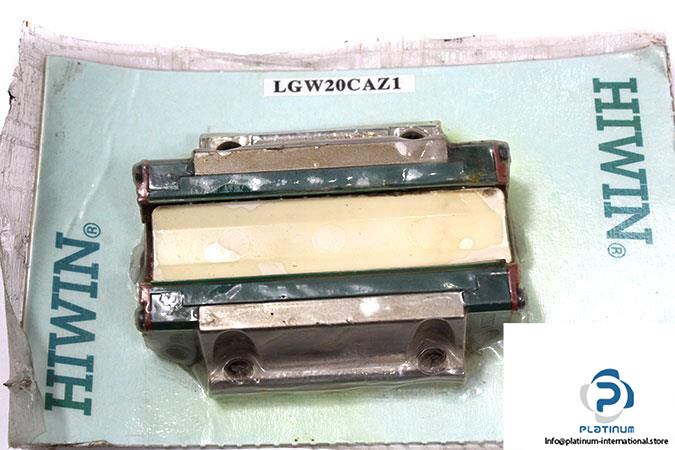

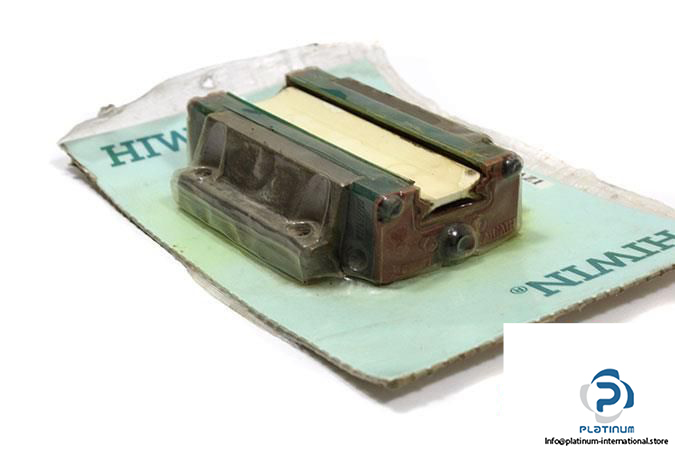

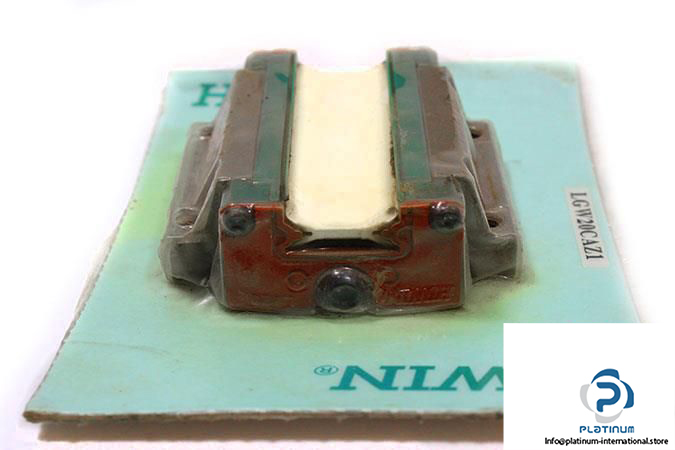

Hiwin LGW20CA Linear Guideway Block
Novo
Em estoque1 unidadePronto para envio
150,00$
Bloco guia linear para uso pesado da Hiwin, modelo LGW20CAZ1, com tamanho de trilho de 20 mm, tipo flange e pré-carga alta para movimento de precisão em aplicações exigentes.
20BlockFlangeGuideGuidewayHeavyHiwinIndustrialLGW20CAZ1LinearLoadM5mmMotionMountingPreloadrailSystemTypeZ1
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
HIWIN LGW20CAZ1 LINEAR GUIDEWAY BLOCK
The Hiwin LGW20CAZ1 is a high-performance flange-type linear guideway block designed for precision motion applications under heavy load conditions. Engineered with high preload and robust build quality, it ensures stability, smooth linear travel, and extended service life.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: LGW20CAZ1
| Size | 20 mm |
| Block Height | 25 mm |
| System Height | 30 mm |
| Block Width (W) | 63 mm |
| Block Length (L) | 77.3 mm |
| Thread Size | M5 x 16 |
| Rail Width | 20 mm |
| Rail Height | 15 mm |
| Distances Between Holes | 53 mm, 40 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Block Mounting Type | From Above |
| Preload Code | Z1 |
| Basic Dynamic Load Rating | 1650 kgf |
| Basic Static Load Rating | 2670 kgf |
