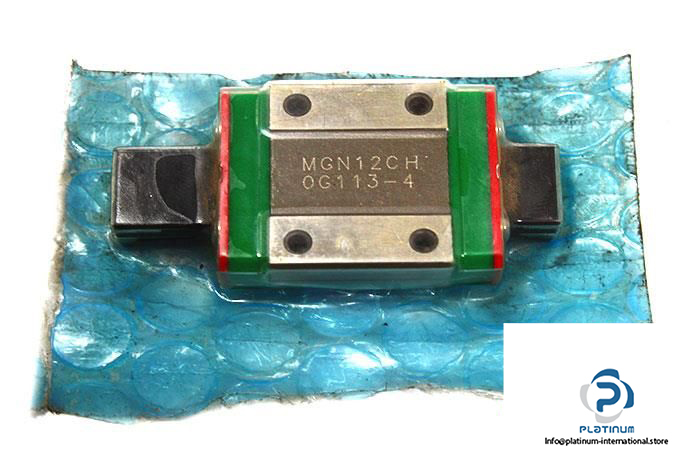

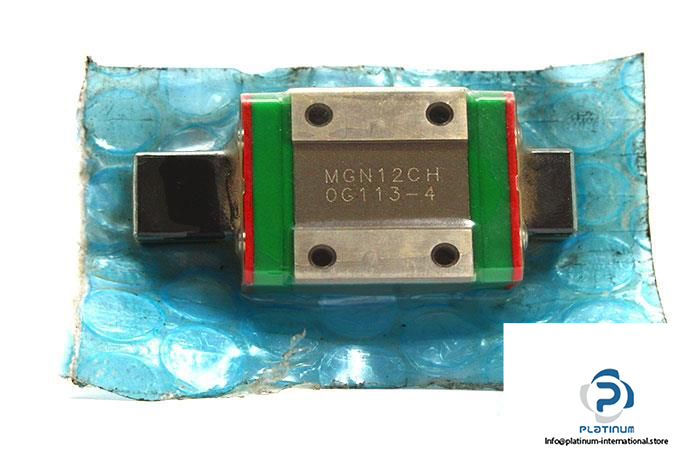

Hiwin MGN12CH Linear Guideway Block
Novo
Em estoque7 unidadesPronto para envio
38,73$
BLOCO DE GUIA LINEAR Hiwin MGN12CH com largura de trilho de 12 mm, grau de precisão alta H e capacidade de carga robusta, ideal para aplicações CNC, automação e movimento de precisão.
12AutomationBlockCNCCompactComponentGuideGuidewayHiwinLinearM3MGN12CHmmMotionMountingPrecisionrailSystem
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
HIWIN MGN12CH LINEAR GUIDEWAY BLOCK
Hiwin™s MGN12CH is a compact linear guideway block engineered for precision motion control in automation and CNC systems. With a 12 mm rail width and high load ratings, it offers stability, low friction, and reliable guidance for linear motion applications.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGN12CH 0G113-4
| Size | 12 mm |
| Block Type | Standard |
| System Height H | 13 mm |
| Block Height (H-H1) | 10 mm |
| Block Width W | 27 mm |
| Block Length L | 34.7 mm |
| Distances Between Holes | 20 mm, 15 mm |
| Mounting Bolt for Rail | M3 × 8 |
| Basic Dynamic Load Rating C | 2.84 kN |
| Basic Static Load Rating C‚ | 3.92 kN |
| Rail Width | 12 mm |
| Rail Height | 8 mm |
| Precision Code | H |
