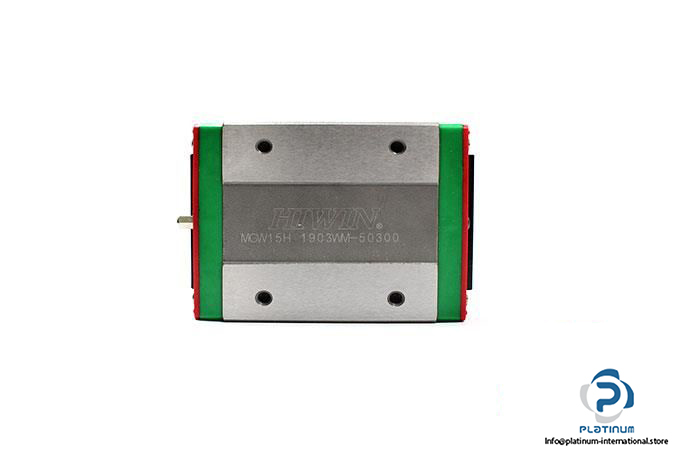

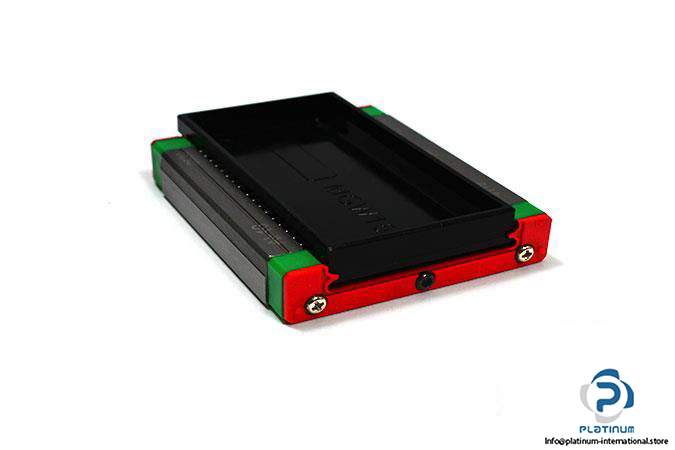

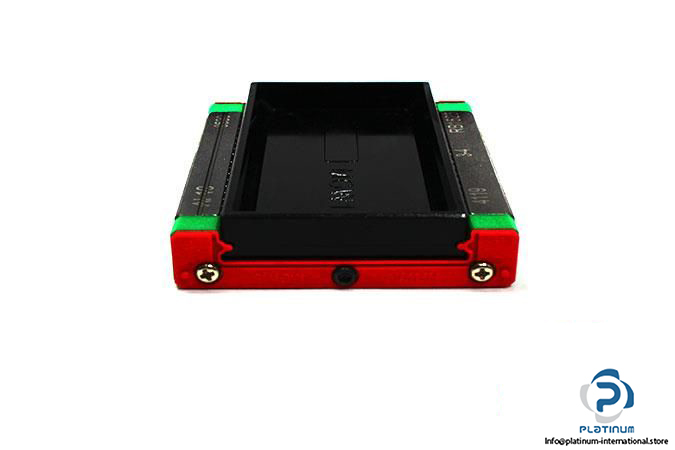

Hiwin MGW15H Linear Guideway Block
Novo
Em estoque27 unidadesPronto para envio
76,76$
Bloco de guia linear Hiwin MGW15H bloco longo, tamanho 15 mm com alta capacidade de carga dinâmica e estática, projetado para sistemas de movimento de precisão compactos com guia linear suave.
13.38158.93bearingBlockCompactDynamicGuidewayHiwinkNLinearLoadlongM4MGW15HmmMotionPrecisionrailStaticSystemX10
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
HIWIN MGW15H LINEAR GUIDEWAY BLOCK
The Hiwin MGW15H linear guideway block is engineered for high-precision motion systems requiring compact size, smooth linear travel, and high load capacity. This long-type block is suitable for industrial automation and demanding guide rail configurations.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: MGW15H 1903WM-50300
Size: 15 mm
| Block Height | 12.6 mm |
| System Height | 16 mm |
| Block Width (W) | 60 mm |
| Block Length (L) | 73.8 mm |
| Distance Between Holes | 45 mm, 35 mm |
| Thread Size | M4 × 10 |
| Rail Width | 42 mm |
| Rail Height | 9.5 mm |
| Block Type | Long |
| Basic Dynamic Load Rating | 8.93 kN |
| Basic Static Load Rating | 13.38 kN |
