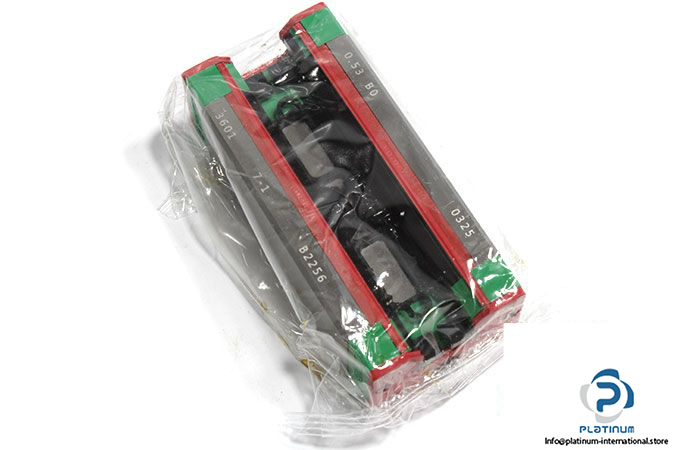

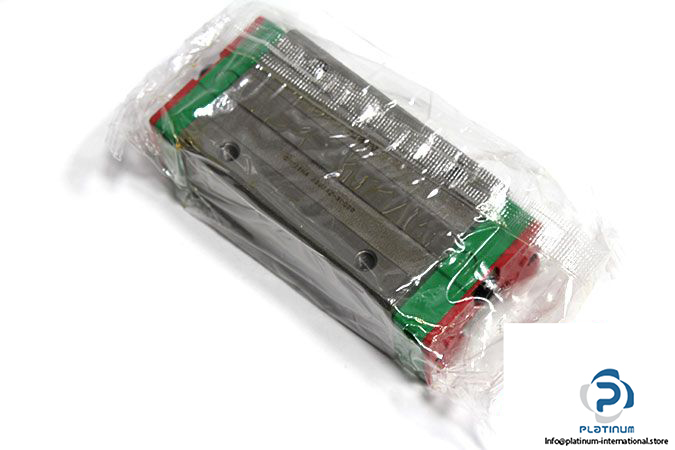

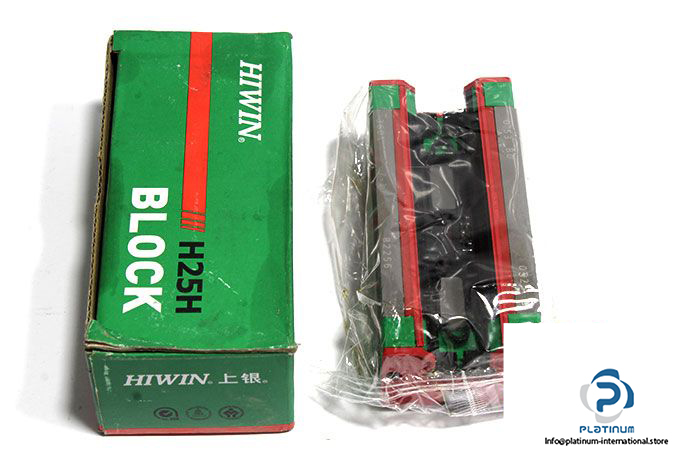

Hiwin QHH25HA Linear Guideway Block
Novo
Em estoque10 unidadesPronto para envio
83,87$
BLOCO GUIA LINEAR Hiwin QHH25HA para cargas superpesadas com tecnologia SynchMotion™, design de bloco quadrado e montagem superior para sistemas de movimento de alta precisão.
25BlockGuideGuidewayHeavyHiwinLinearLoadmmMotionmountQHQHH25HArailSeriesSquareSynchMotiontechnologyTop
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
HIWIN QHH25HA LINEAR GUIDEWAY BLOCK
This high-performance linear guideway block from Hiwin is designed for super heavy load applications, offering advanced motion control with SynchMotion„¢ technology. Part of the QH Series, it features a square block design with high rigidity and smooth, silent operation”ideal for demanding linear motion systems.
Manufacturer: Hiwin
Type: Linear Guideway Block
Model: QHH25HA
MRN: QHH25HA 200421-60100
Basic Load Ratings, Linear:
| Size | 25 mm |
| Total Height H | 40 mm |
| Block Width W | 48 mm |
| Block Length L | 104 mm |
| Block Height | 34.5 mm |
| Distance Between Holes | 35 mm, 50 mm |
| - Dynamic Cr | 50.6 kN |
| - Static C0r | 60.9 kN |
| Series | QH Series; Heavy Load Type Linear Guideway, with SynchMotion Technology |
| Block Type | H; Square Type |
| Load Type | H; Super Heavy Load |
| Block Mounting Type | A; Mounting from Top |
