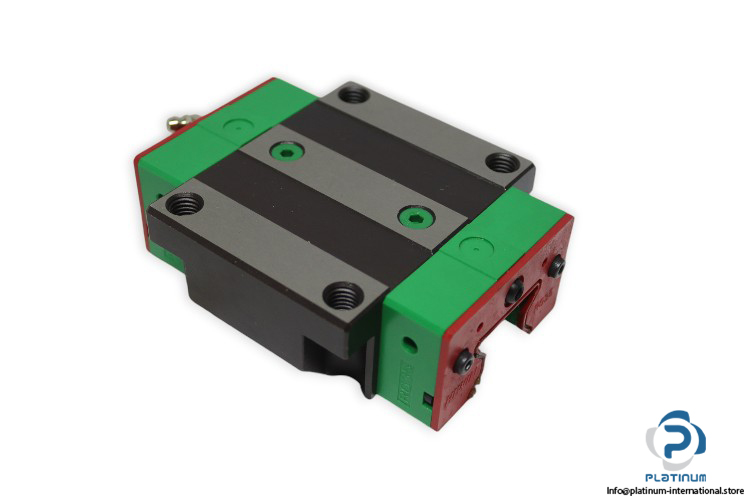

Hiwin RGW35 CC Linear Guideway Block
Novo
Em estoque8 unidadesPronto para envio
Bloco guia linear de carga pesada da HIWIN, modelo RGW35-CC, de tamanho 35 mm e classe de pré-carga ZA, construído para aplicações de movimento de precisão que requerem força, rigidez e velocidade.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
HIWIN RGW35-CC LINEAR GUIDEWAY BLOCK
Engineered for heavy-duty linear motion applications, the HIWIN RGW35-CC is a flange-type linear guideway block offering excellent load capacity, rigidity, and high-speed performance. With a wide block design and top/bottom mounting capability, it's ideal for precision systems operating under high dynamic and static loads.
Manufacturer: HIWIN
Type: LINEAR GUIDEWAY BLOCK
Model: RGW35-CC

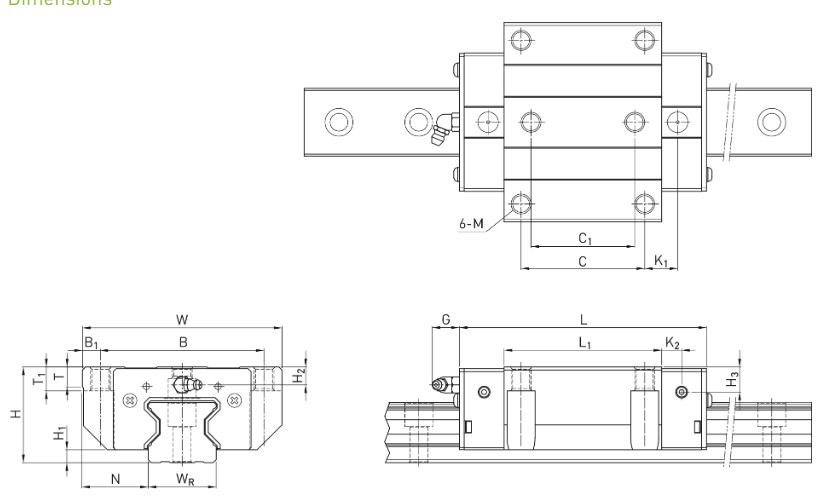

| Size | 35 mm |
| Block Type | W, Flange |
| Load Type | Heavy Load |
| Block Mounting Type | C, Top or Bottom |
| Total Height H | 48 mm |
| Block Width W | 100 mm |
| Block Length L | 124 mm |
| B | 82 mm |
| C | 62 mm |
| Thread Size | M10 |
| Basic Dynamic Load Rating C | 57,900 N |
| Basic Static Load Rating C‚ | 105,200 N |
| Rail Width | 34 mm |
| Rail Height | 30.2 mm |
| Block Weight | 1.75 kg |
| Preload | ZA class |
| Max. Speed | 120 m/min |
| Acceleration | 1G |
| Stroke | 2 m |
| Traveling Distance | 15,000 km |
| Mounting Bolt for Rail | M8x25 |
