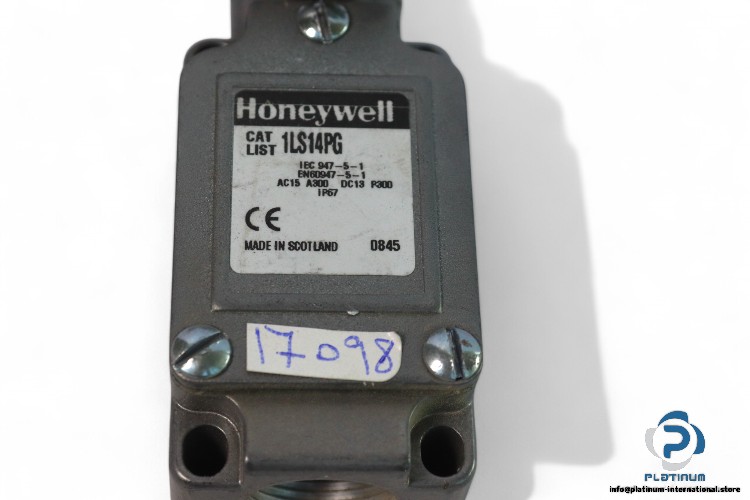

Honeywell 1LS14PG Micro Switch

Manufacturer: HONEYWELL
Type: MICRO SWITCH
Model: 1LS14PG

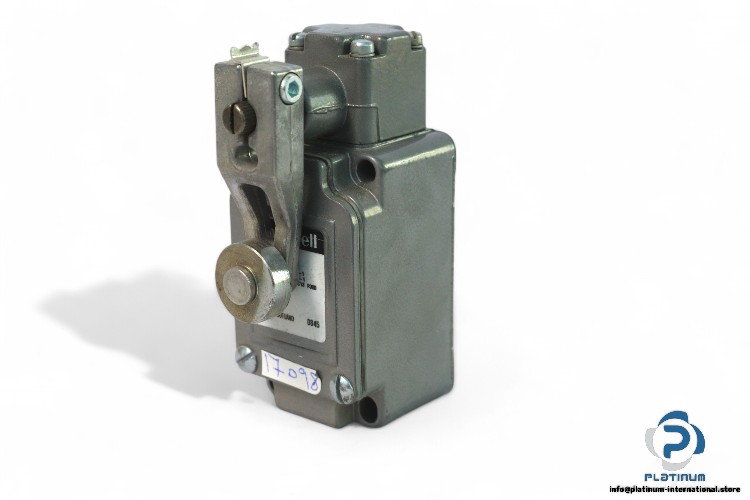

Limit Switch Actuator: Side Rotary
contain of : fixed lever, 38,1 mm
Degree of protection: IP67
Material Type: Steel

AC:
Designation & Category: AC15, A300
Thermal Current: 10A
Rated Operational Voltage, Ue: 120V, 240V
Rated Operational, Ie: 6A, 3A
VA rating Make: 7200
VA rating Break: 720
DC:
Designation & Category: DC13, P300
Thermal Current: 5A
Rated Operational Voltage, Ue: 125V, 250V
Rated Operational, Ie: 1.1A, 0.55A
VA rating Make: 138
VA rating Break: 138
