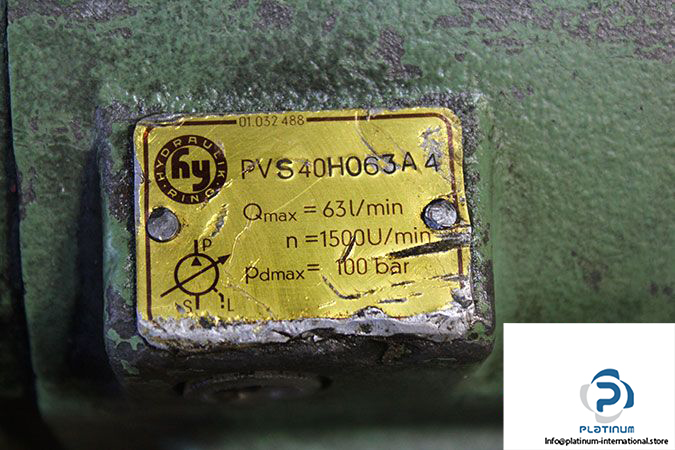

Hydraulik Ring PVS 40 H063A4 Variable Vane Single Pump

Manufacturer: Hydraulik Ring

Type: Variable Vane Single Pump

Model: PVS40H063A4



Size: 40

Displacement: 40 cm³

Direction of Rotation: Clockwise

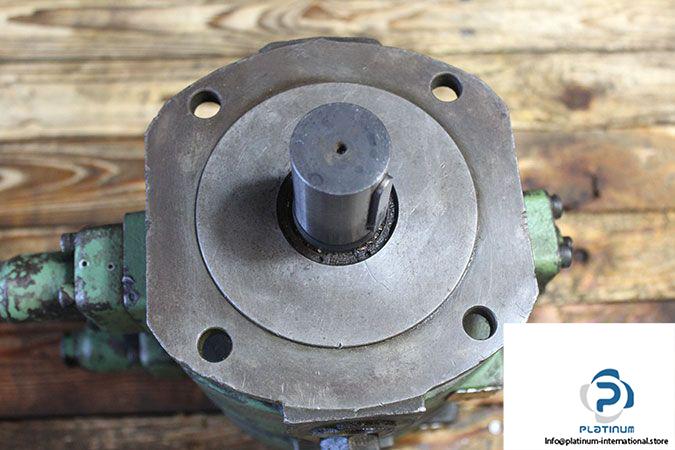

Shaft Diameter: 38 mm

Input power: 15.9 KW

Max pressure: 100 bar

Speed Range: 1000 …. 1800 rpm

Actual Speed: 1500 min^-1

Flow Rate at 1500 rpm: 60 l/m

Max Flow Rate at 1500 rpm: 63 l/m

Ambient-temperature range: –10 … 70 °C

Viscosity Range: 22 ….  100 mm²/s

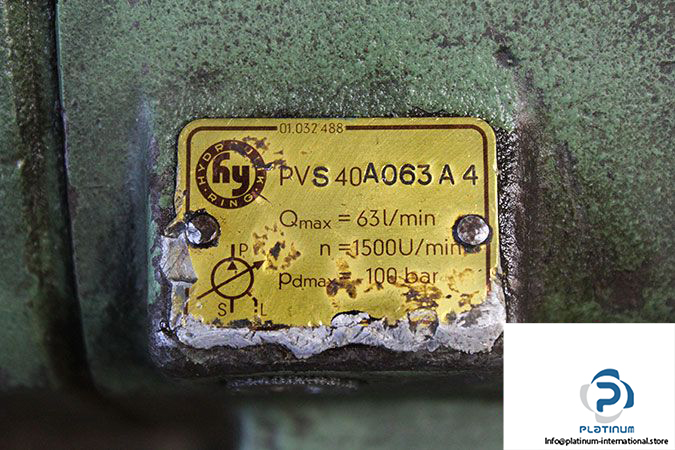

Attachment: HYDRAULIK RING PVS 40 A063A4 VARIABLE VANE SINGLE PUMP

Manufacturer: Hydraulik Ring

Type: Variable Vane Single Pump

Model: PVS40A063A4

size: 40

Displacement: 40 cm³

Weight: 57 Kg
