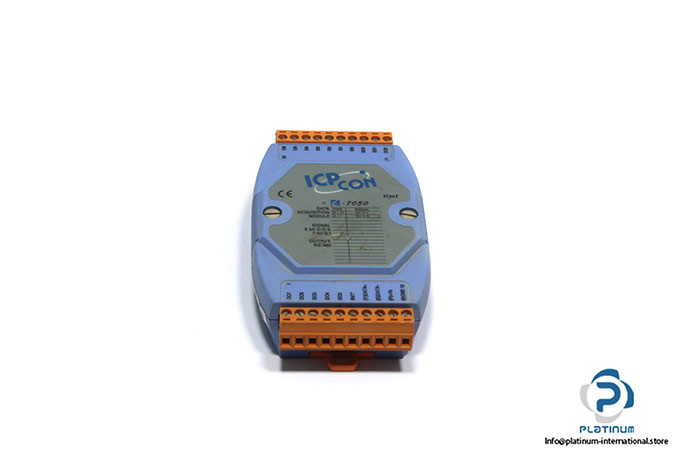

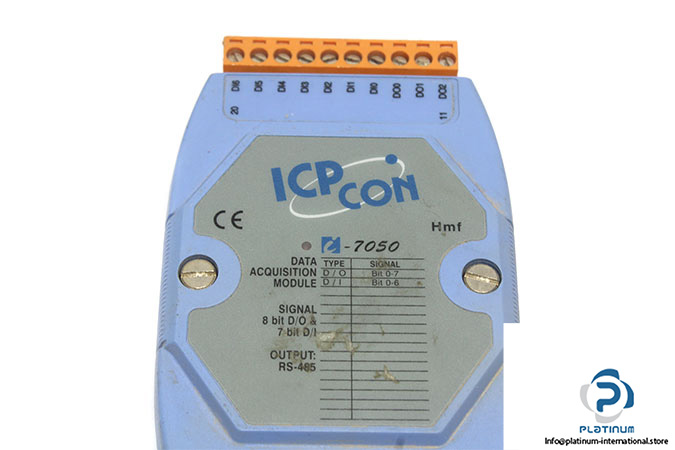

ICP CON I-7050 7-CH NON-Isolated (DRY) DI AND 8-CH NON-Isolated (Sink, NPN) DO Module
59,99$
Módulo Digital I/O O ICP CON I-7050 oferece 7 entradas digitais e 8 saídas digitais com suporte a NPN/PNP. Com ampla faixa de tensão de entrada, consumo de energia de 0,4 W e montagem em trilho DIN, é perfeito para aplicações de automação e controle.
ICP CON I-7050 7-ch DI and 8-ch DO Module
The ICP CON I-7050 is a versatile digital I/O module that combines 7-channel non-isolated dry contact digital inputs with 8-channel non-isolated open collector digital outputs. Designed for industrial control and monitoring applications, it supports both sink and source types, ensuring flexible and reliable integration with PLCs, controllers, and automation systems. Its compact DIN-rail mounting design and wide operating temperature range make it suitable for harsh industrial environments.
Manufacturer: ICP CON
Type: 7-ch Non-isolated (Dry) DI and 8-ch Non-isolated (Sink, NPN) DO Module
Model: I-7050
| Power Input Range | +10 / +30 VDC |
| Power Consumption | 0.4 W |
| Digital Input Channels | 7 |
| Input Type | Dry Contact |
| Sink/Source (NPN/PNP) | Sink/Source |
| ON Voltage Level | Open |
| OFF Voltage Level | Close to GND |
| Max. Counts | 65535 (16-bit) |
| Frequency | 100 Hz |
| Min. Pulse Width | 5 ms |
| Effective Distance | 500 m Max. |
| Input Impedance | 100 KΩ |
| Digital Output Channels | 8 |
| Output Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink, NPN |
| Load Voltage | +3.5 / +30 VDC |
| Load Current | 30 mA/channel |
| Operating Temperature | -25 / +75 °C |
| Installation Mounting | DIN-Rail Mounting |
