IFM AC5249 AS-Interface Airbox
222,22$
AS-Interface Airbox A IFM Electronic AC5249 Airbox combina controle pneumático e elétrico em uma unidade compacta. Com 4 entradas digitais, 1 saída pneumática e design com classificação IP67, fornece controle confiável de sinal para sistemas de automação em rede AS-i.

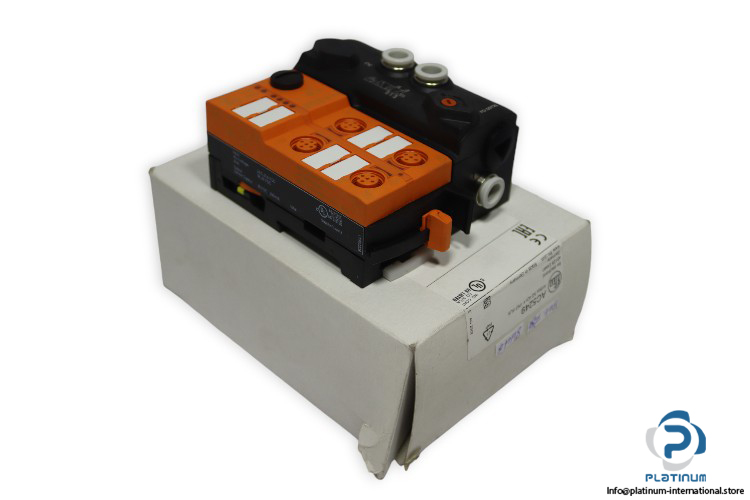

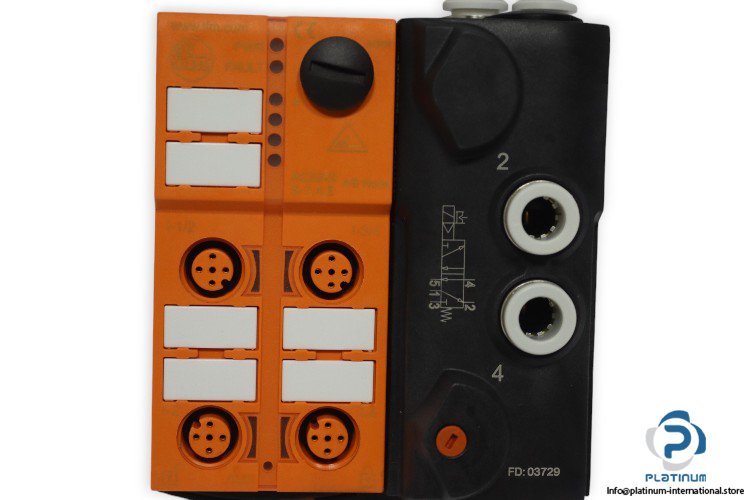

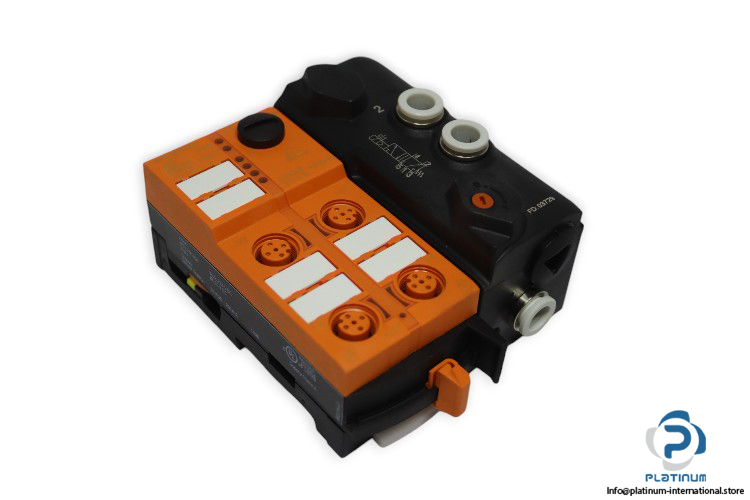

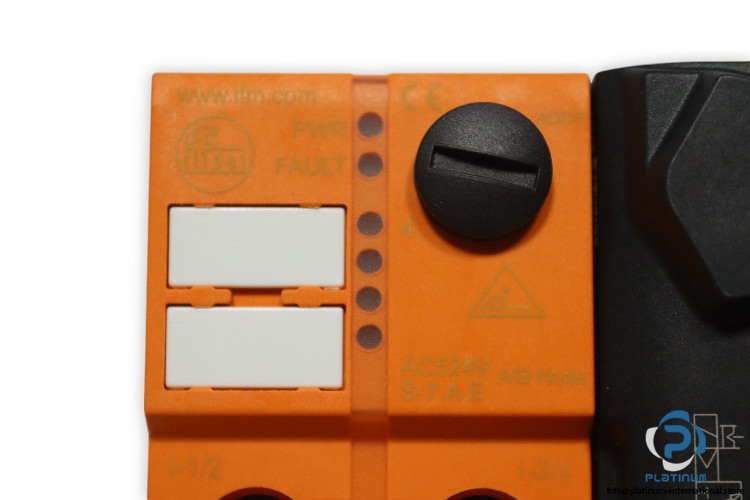

IFM Electronic AC5249 AS-Interface Airbox
The IFM Electronic AC5249 AS-Interface Airbox is a compact and robust pneumatic control unit designed for reliable signal transmission and actuation in industrial automation systems. Engineered for durability and efficiency, this airbox combines electrical and pneumatic control in a single interface, ensuring seamless integration with AS-i networks and optimized performance in harsh environments.
Manufacturer: IFM Electronic
Type: AS-Interface Airbox
Model: AC5249

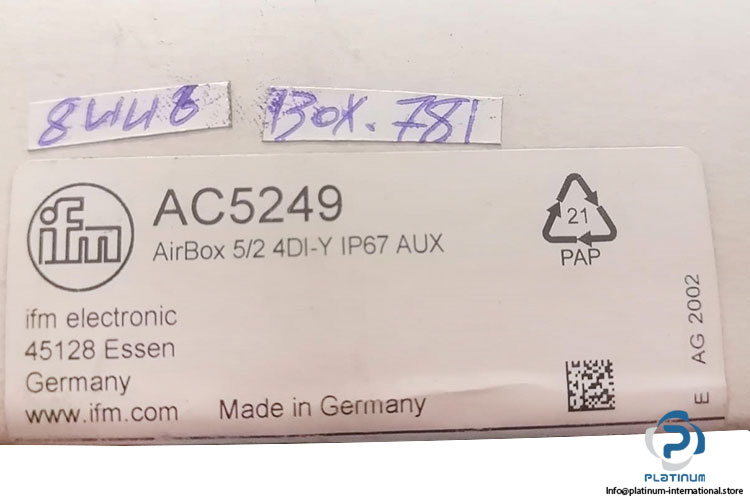

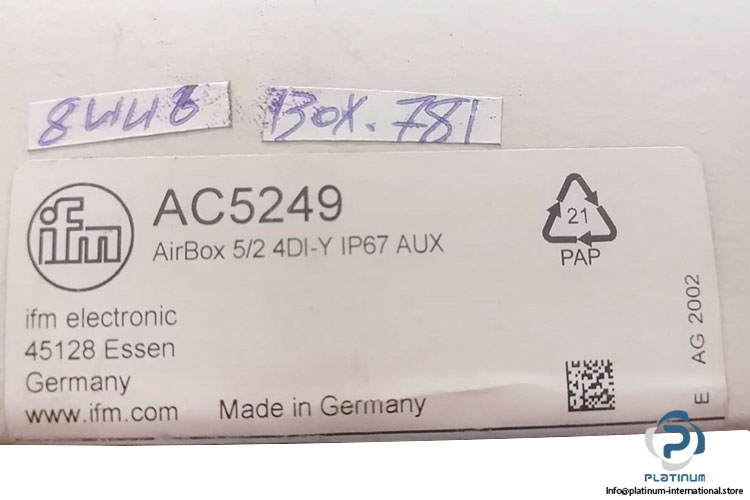

MRN: AirBox 5/2 4DI-Y IP67 AUX

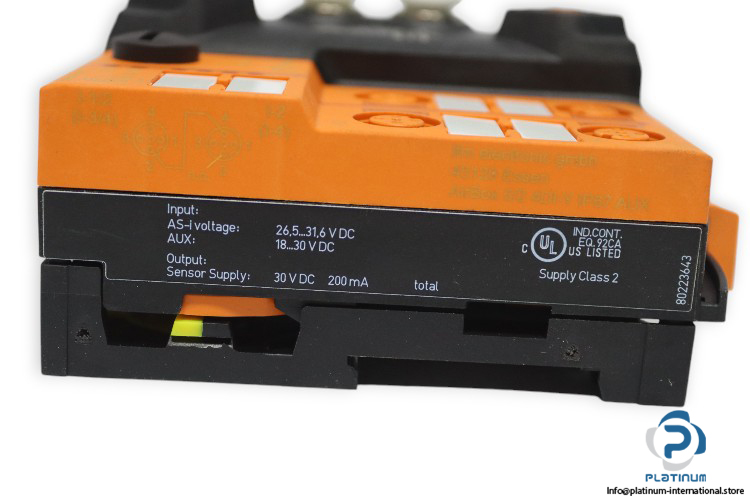

| Operating Voltage | 26.5 / 31.6 V DC |
| Max. Current Consumption from AS-i | 300 mA |
| Additional Voltage Supply | 18 / 30 VDC |
| Max. Current Consumption from Additional Supply | 10 mA |
| Number of Digital Inputs | 4 |
| Number of Pneumatic Outputs | 1 |
| Input Circuit of Digital Inputs | PNP |
| Power Supply | 20 / 30 V |
| Max. Total Current Rating of Inputs | 200 A |
| Input Current High | 6 / 10 mA |
| Input Current Low | 0 / 2 mA |
| Tube Fittings | 8 mm |
| Connector | M1 |
