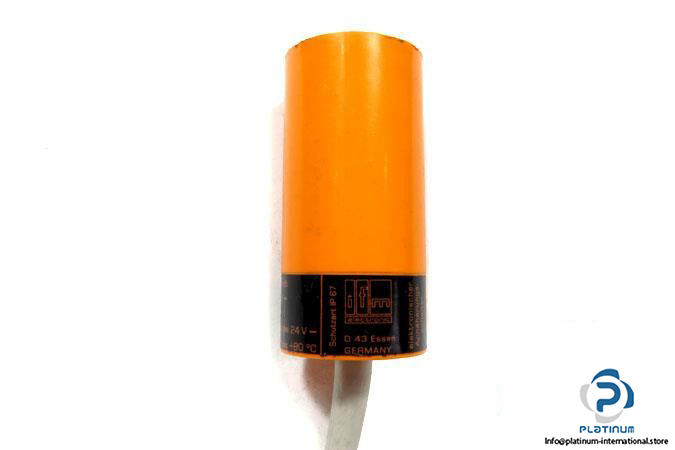

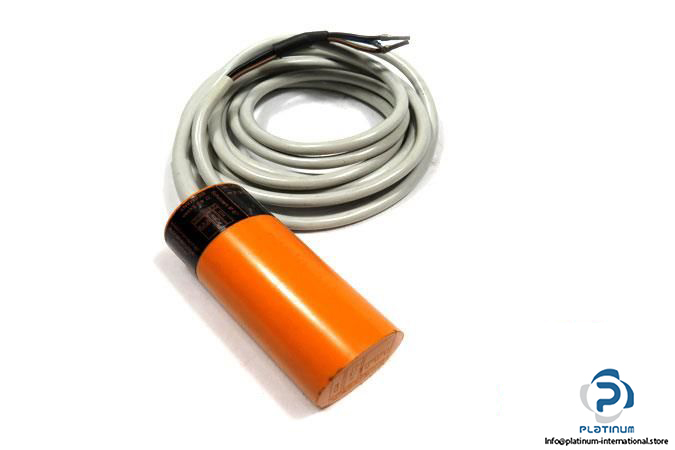

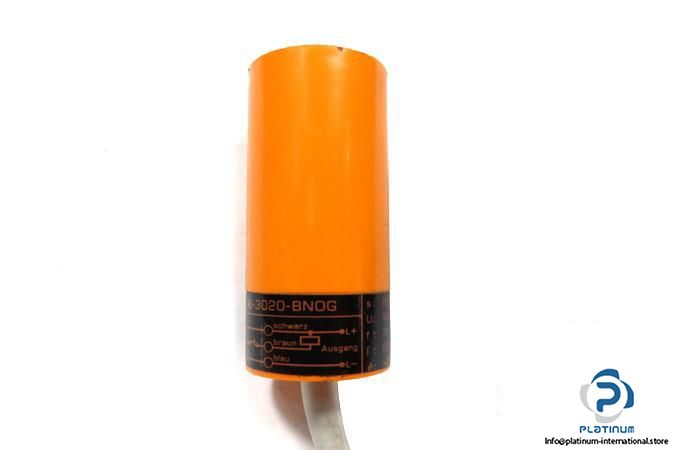

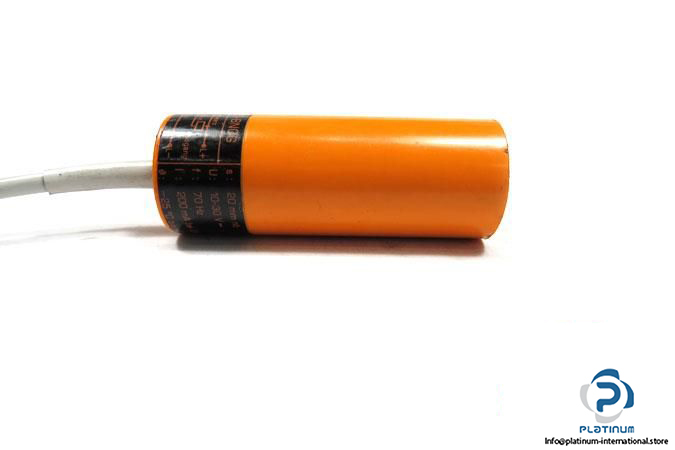

IFM IB-3020-BNOG Inductive Sensor

Manufacturer: ifm

Type: INDUCTIVE SENSOR

Part No.: IB5003 IB-3020-BNOG

Sensing Range: 20 mm

Real Sensing Range: 20 ± 10% mm

Operating Distance: 0 … 16.2 mm

Operating Voltage: 10 … 30 V DC

Switching output current: 200 mA DC

Switching frequency: 40 Hz

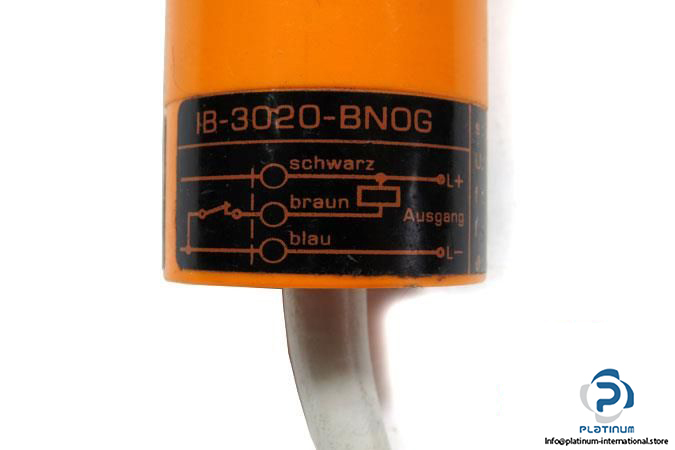

Electrical Design: NPN

Output Function: Normally closed

Connector type: PVC Cable, 2m

Protection Class: II

Enclosure rating: IP67

Housing: Cylindrical

Ambient Operating temperature: -25 … 80°C

Diameter: 34 mm

Material: PBT

Mounting: Non-flush mountable

Condition: Used
