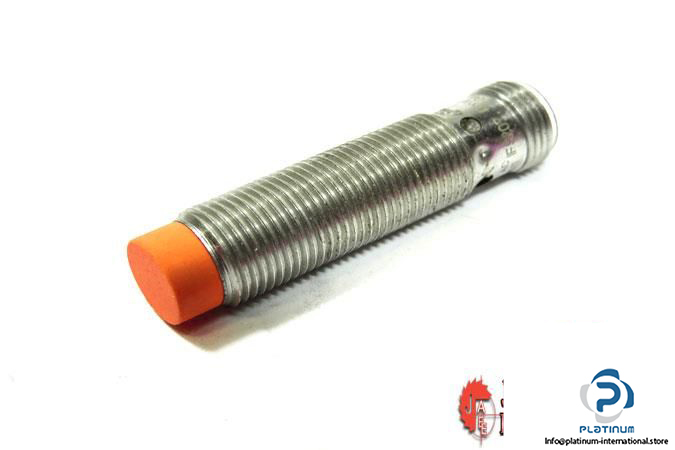

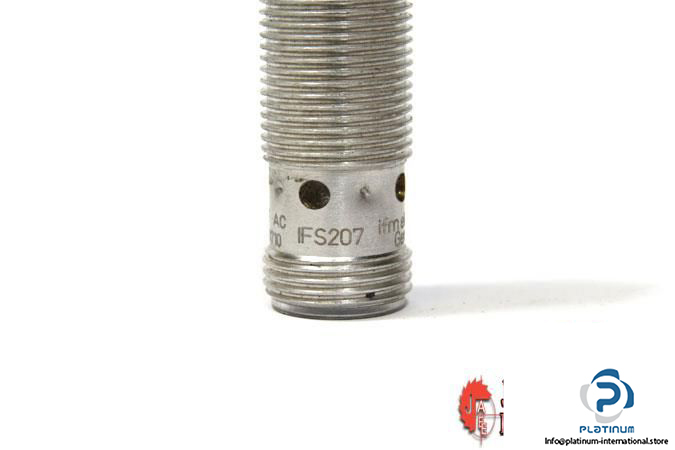

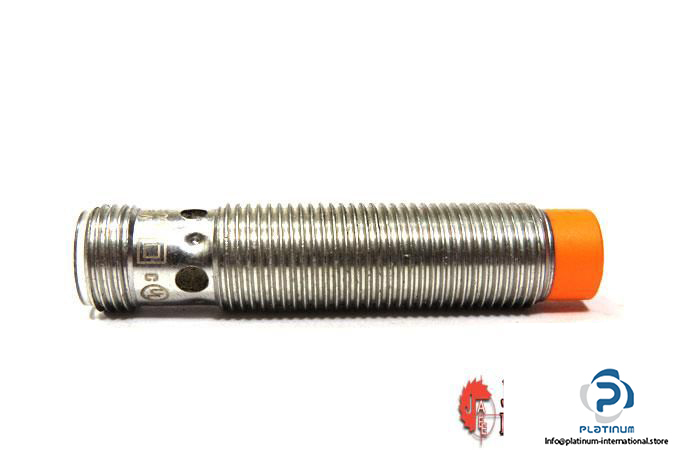

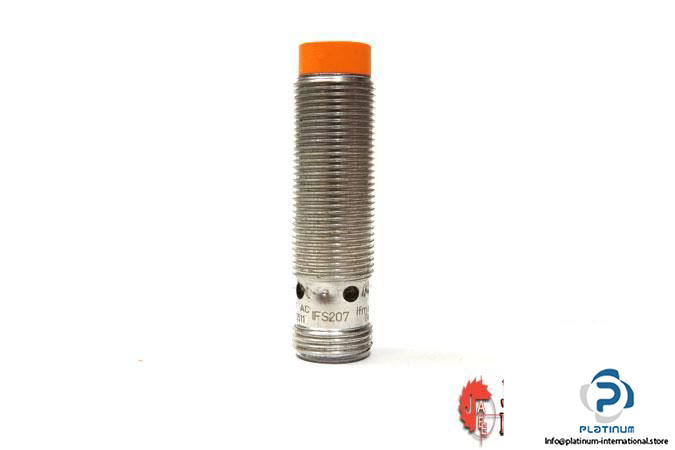

IFM IFS207 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IFS207

MRN: IFB3007-APKG/US

Sensing Range: 7 mm

Real Sensing Range: 7 ± 10 % mm

Operating Distance: 0 … 5.7 mm

Operating Voltage: 10 … 30 V DC

Voltage Drop Max.: 2.5 V DC

Switching Output Current: 100 mA

Current Consumption: 10 mA

Switching Frequency: 700 Hz DC

Electrical Design: PNP

Output Function: Normally Closed

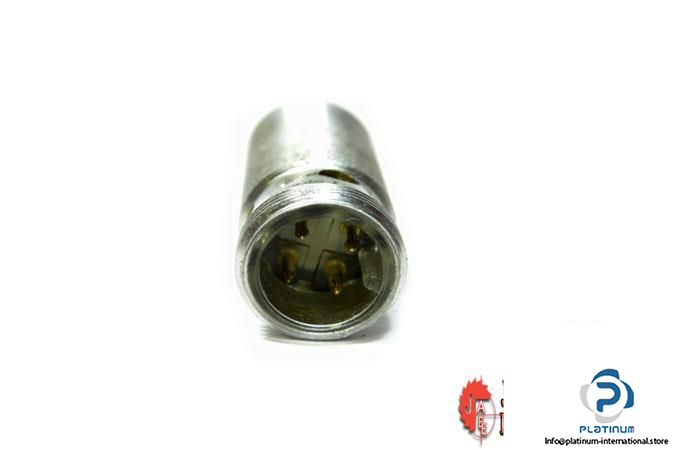

Connector Type: M12 Connector, Gold Plated Contacts

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 … 70°C

Diameter, Housing Length: 12, 50 mm

Material: Brass White Bronze Coated; Sensing Face: PBT Orange

Mounting: Non-Flush Mountable

Weight: 25.1 g
