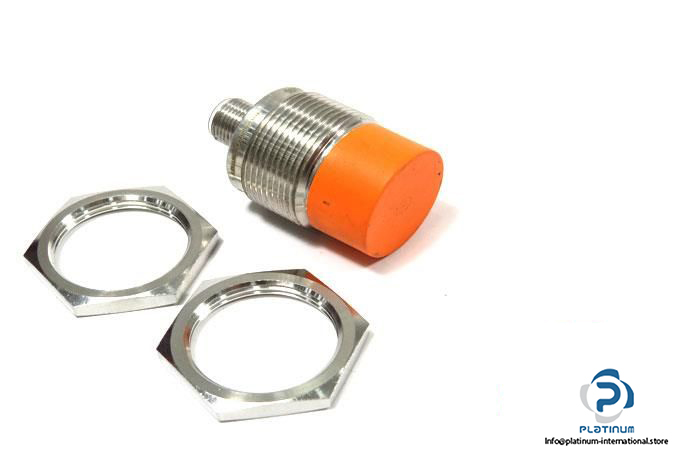

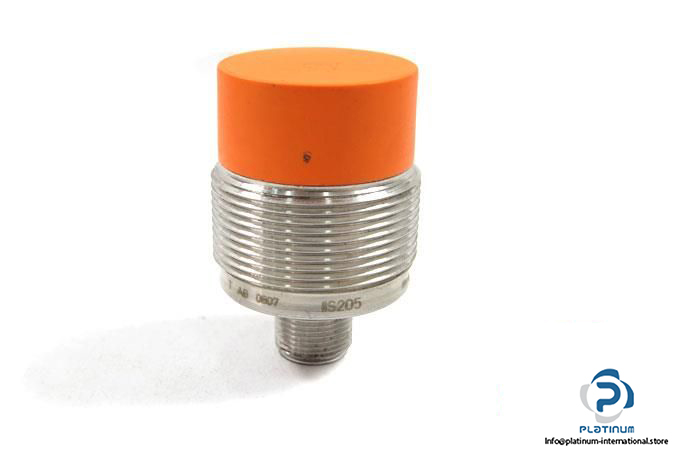

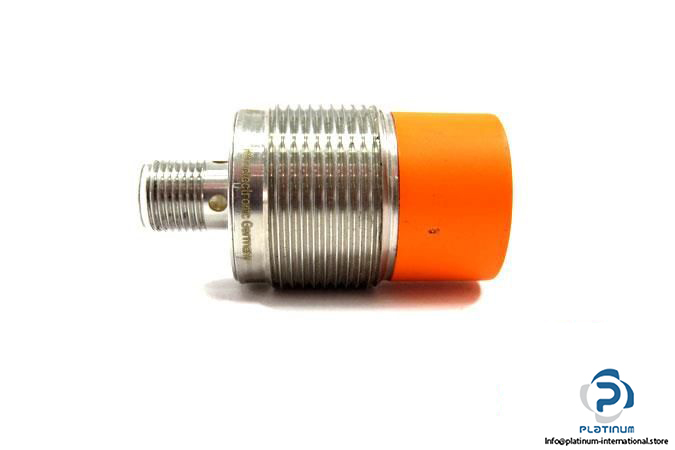

IFM IIS205 Inductive Sensor

Manufacturer: ifm

Type: Inductive Sensor

Part No.: IIS205

MRN: IIB3022-BPKG/US

Sensing Range: 22 mm

Real Sensing Range: 22 ± 10% mm

Operating Distance: 0 … 17.82 mm

Operating Voltage: 10 … 30 V DC

Voltage Drop Max.: 2.5 V DC

Switching Output Current: 100 mA DC

Switching Frequency:  100 Hz

Electrical Design: PNP

Output Function: Normally Open

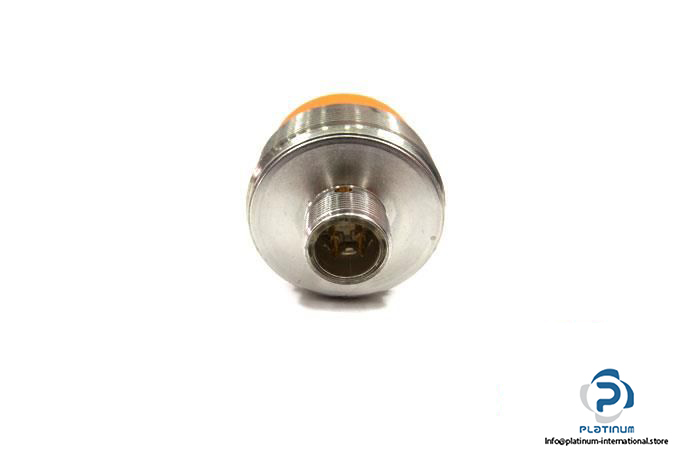

Connector Type: M12 Connector, Gold Plated

Protection Class: II

Enclosure Rating: IP67

Housing: Threaded Type

Ambient Operating Temperature: -25 … 70°C

Diameter, Housing Length: 30 , 50 mm

Material: Brass White Bronze Coated; Sensing Face: PBT Orange

Mounting: Non-Flush Mountable

Weight: 0.1 kg
