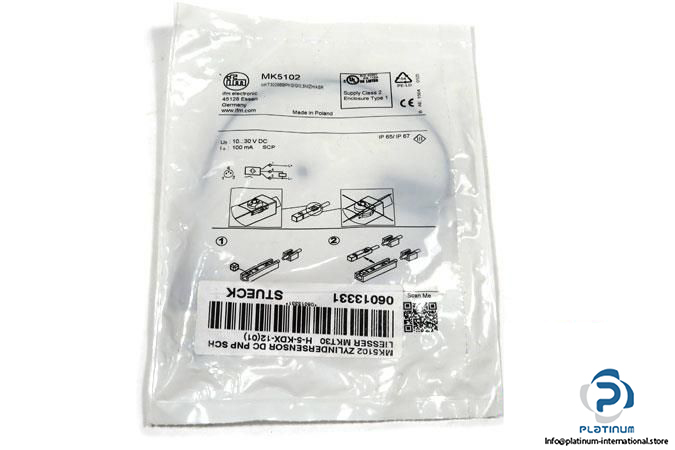

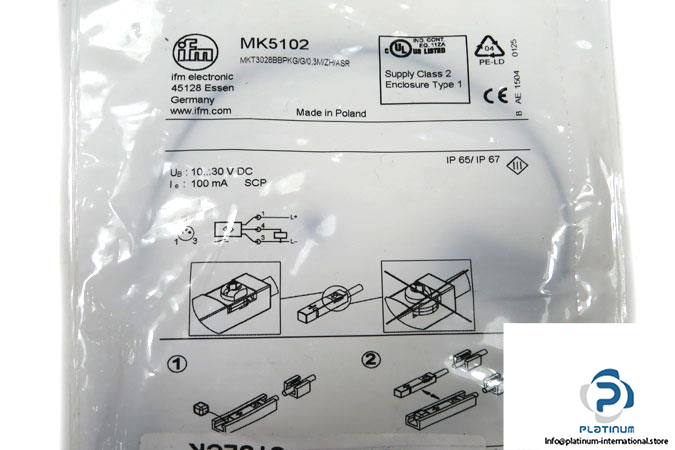

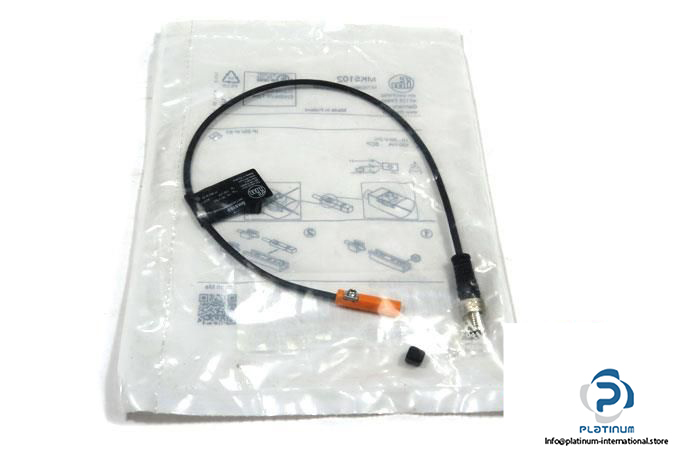

IFM MK5102 Magnetic Position Sensor

Manufacturer: ifm

Type: MAGNETIC CYLINDER POSITION SENSOR

Part No.: MK5102

MRN: MKT3028BBPKG/G/0,3M/ZH/ASR

Application: T-slot sensor for industrial and high pressure cleaning

Magnetic Sensitivity: 2.8 mT

Travel Speed max.: 10 m/s

Delay time max.: 30 ms

Operating Voltage: 10 … 30 V DC

Switching output current: 100 mA DC

Switching frequency:  10000 Hz

Electrical Design: PNP

Output Function: Normally open

Connector type, length: M8 ;3-pin, PUR Cable, 0.3 m

Protection Class: III

Enclosure rating: IP 65; IP 67

Ambient Operating temperature: -25 … 85°C

Diameter, Housing length: 25 x5 x 6.5 mm

Material: PA

Mounting: Flush mountable

Type of mounting: Fastening clamp with combined slot / hexagon socket, width across flats 1.5

Weight: 14.7 g

Condition: New
