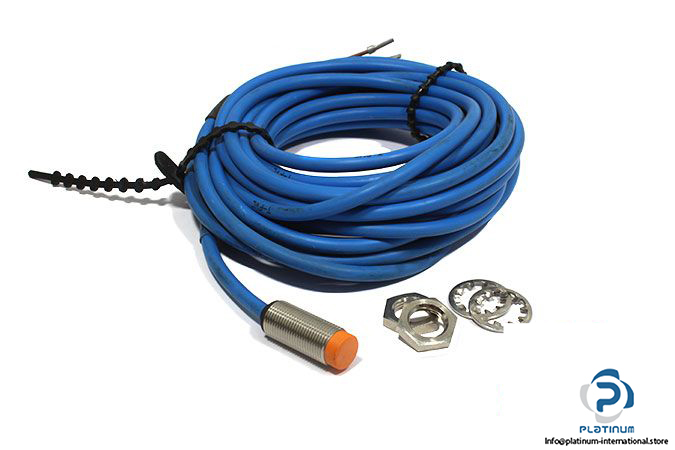

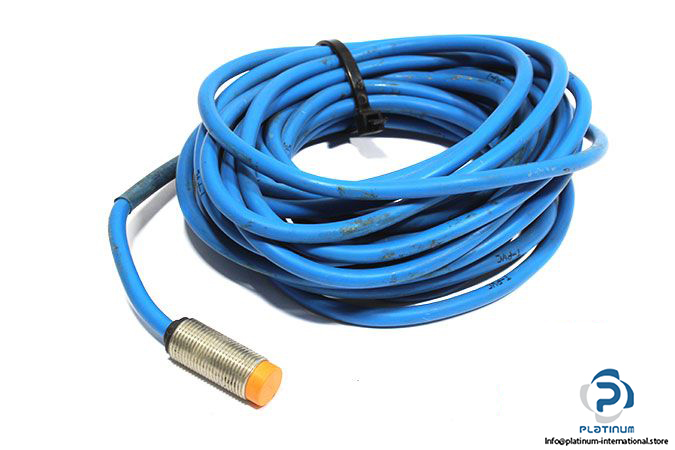

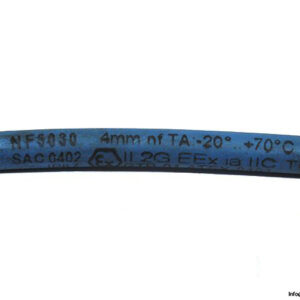

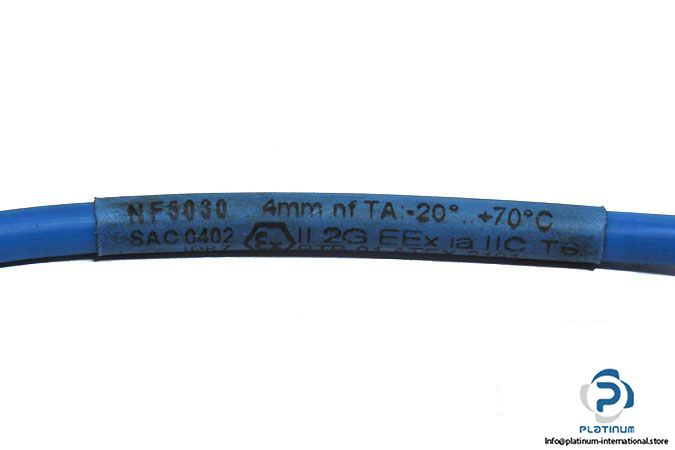

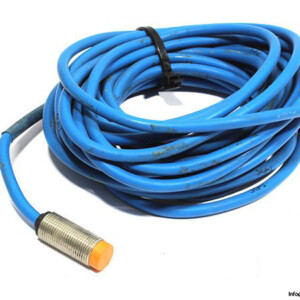

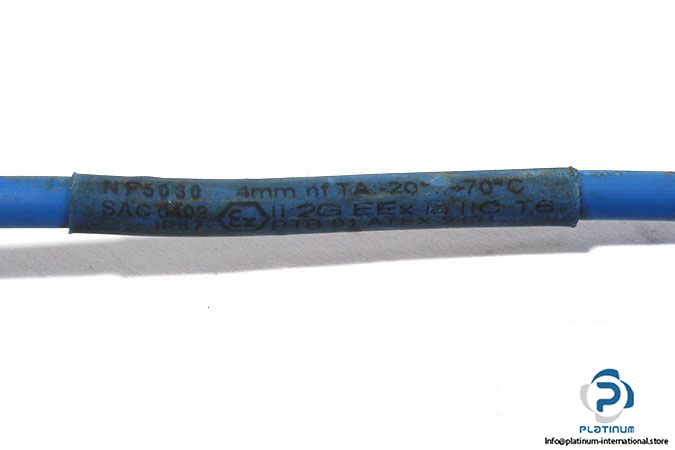

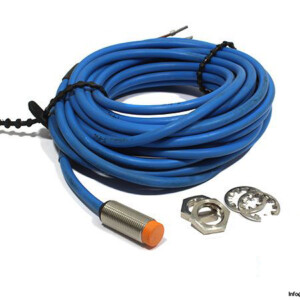

IFM NF5030 Inductive Namur Sensor

Manufacturer: IFM

Type: INDUCTIVE NAMUR SENSOR

Part No.: NF5030

MRN: IFA2004-N/V2A/6M/1D/1G

Electrical Design: NAMUR

Sensing Range: 4 mm

Operating Voltage: 7.5 … 30 V DC

Switching Frequency DC: 1500 Hz

Switching Output Current: 30 mA DC

Current Consumption: 2.1 mA

Output Function: Normally Closed

Switching Amplifiers: Max. Values: U = 15 V / I = 50 mA / P = 120 mW

Protection Class: III

Enclosure Rating: IP67

Housing:  Threaded Type

Electrical Connection: Cable: 6 m, PVC, 2 Wire

Ambient Operating Temperature: -20 … 80 °C

Diameter, Housing Length: M12 x 1, 30 mm

Material: Stainless Steel; PBT

Mounting: Non-Flush Mountable

Supplied Accessories: Lock Nuts: 2

Weight: 0.22 kg
