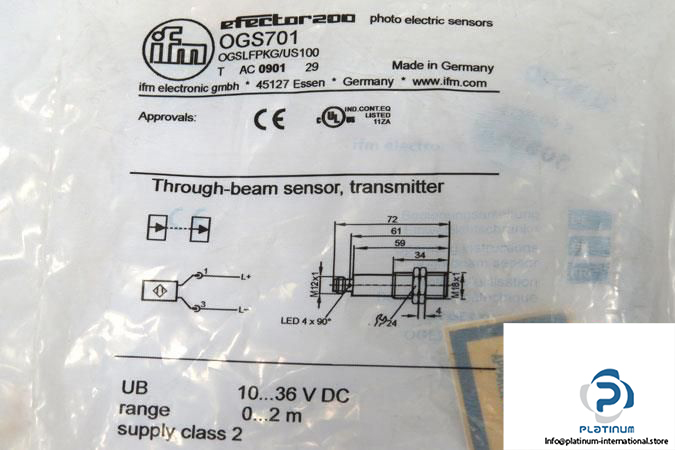

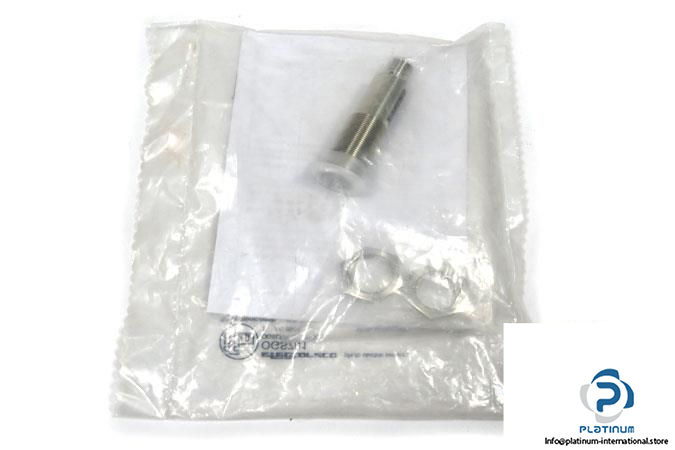

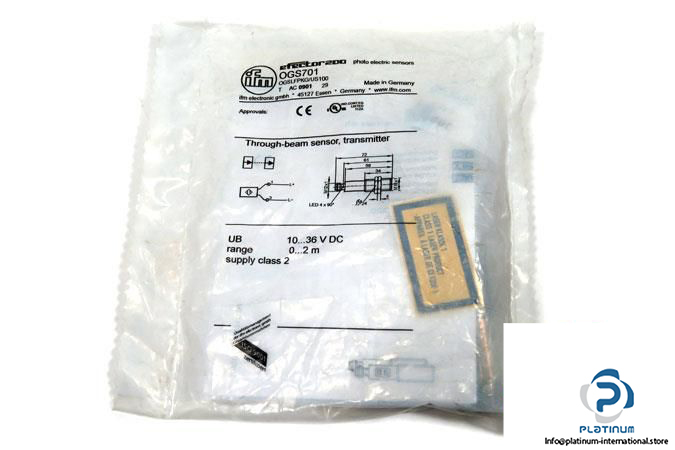

IFM OGS701 Through-Beam Laser Sensor – Transmitter

Manufacturer: ifm

Type: THROUGH-BEAM LASER SENSOR – TRANSMITTER

Part No.: OGS701

MRN: OGSLOOKG/US100

Sensing Range: 0 … 2 m

Diameter of the smallest detectable object: 0.5 (2m)

Operating Voltage: 10 … 36 V DC

Wave length: 655 nm

Light spot diameter max.: 5 mm

Connector type: M12 Connector

Protection Class: II

Enclosure rating: IP65, IP67

Housing: Threaded type

Ambient Operating temperature: -10 … 60°C

Diameter, Housing length: 18, 72 mm

Material: Stainless steel

Lens material: PMMA

Weight: 64 g

Condition: New
