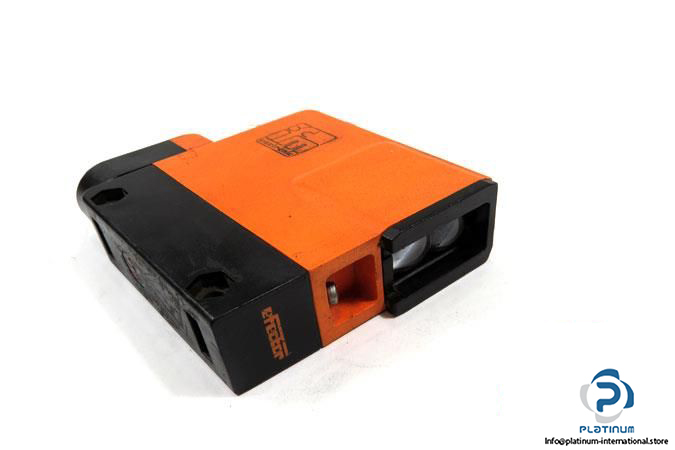

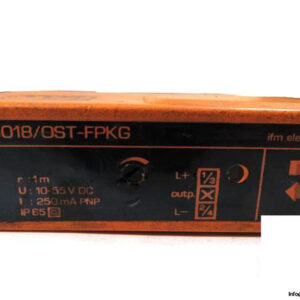

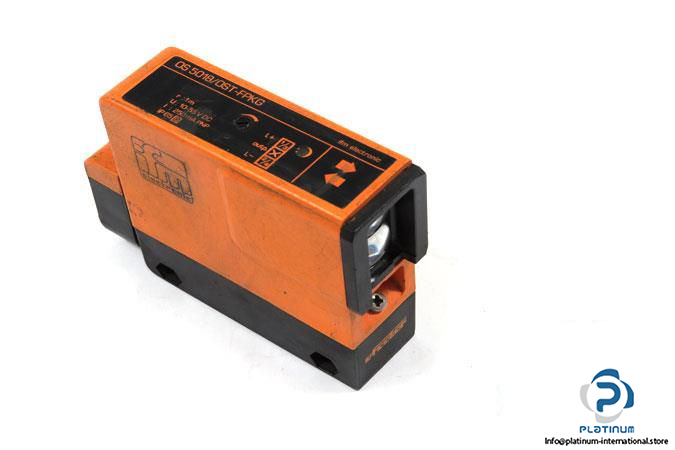

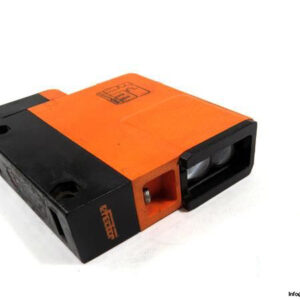

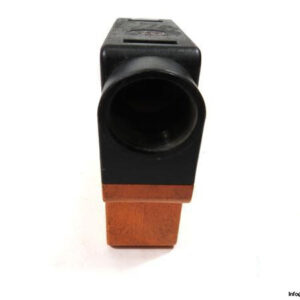

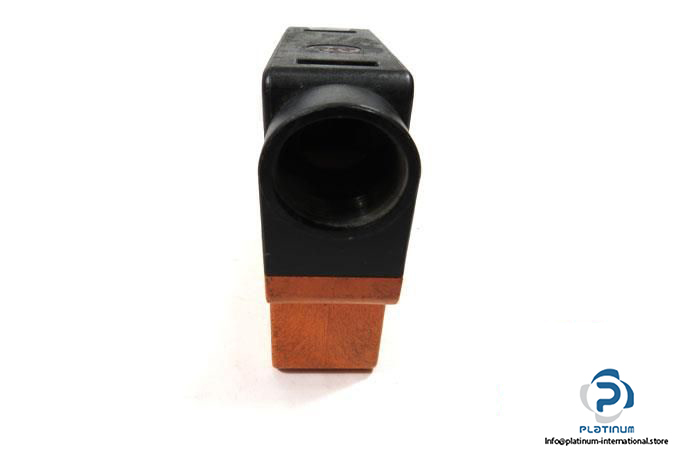

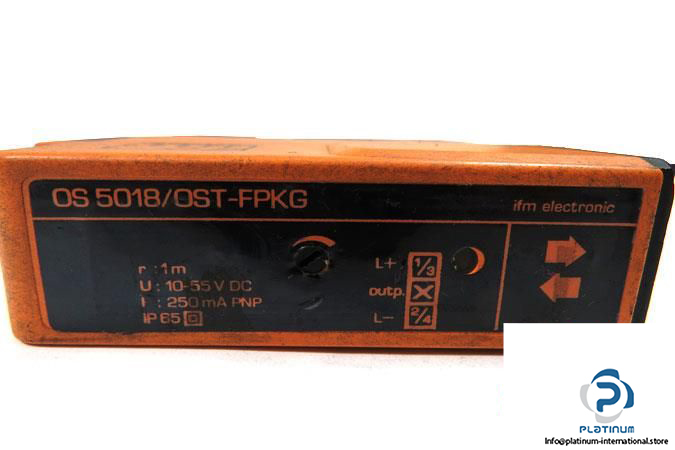

IFM OS5018 Diffuse Reflection Sensor

Manufacturer: ifm

Type: DIFFUSE REFLECTION SENSOR

Part No.: OS5018

MRN: OST-FPKG

Sensing Range: 1 m

Operating Voltage: 10 … 55 V DC

Switching frequency: 100 Hz

Switching output current: 250 mA DC

Electrical design: PNP

Output Function: light-on/dark-on mode

Type of light: Infrared light

Wave length: 880 nm

Connector type: Cable gland: M20 X 1.5

Protection Class: II

Enclosure rating: IP65

Housing: Rectangular

Ambient Operating temperature: -25 … 80°C

Dimensions: 80 x 28 x 95 mm

Material: PPO Modified

Lens material: Glass

Weight: 275 g
