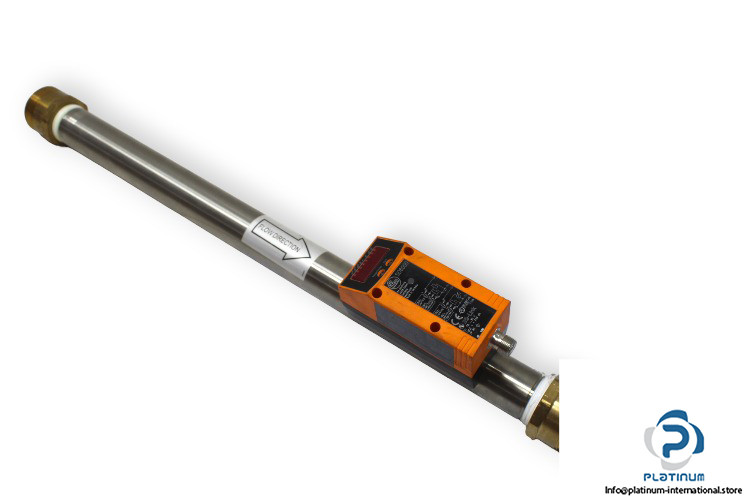

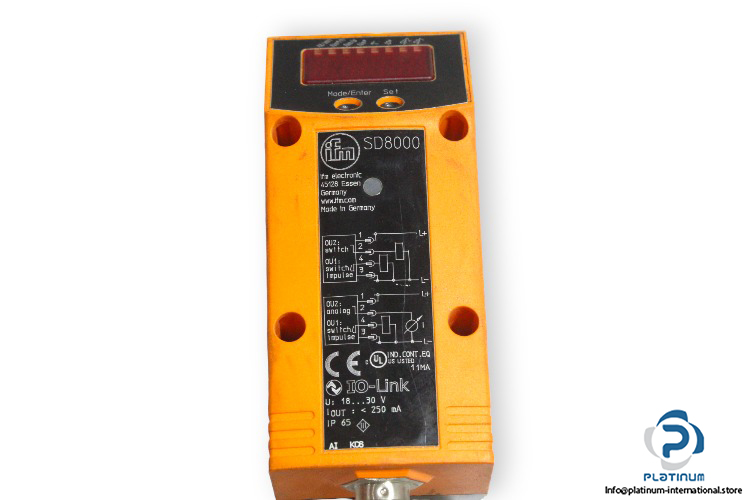

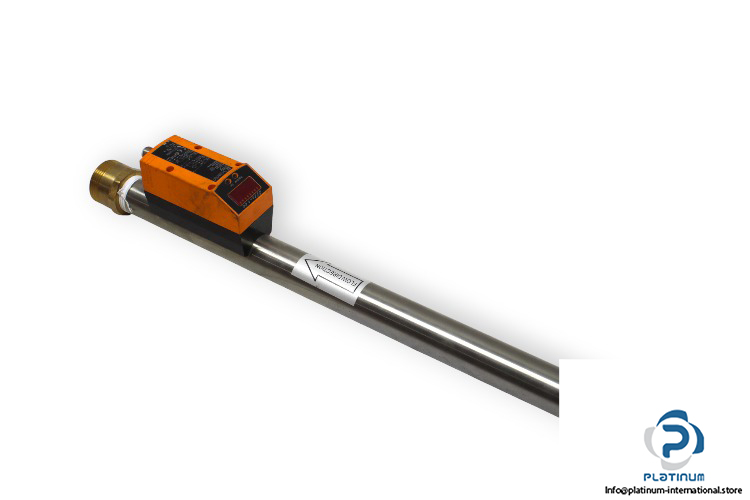

IFM SD8000 Compressed AIR Meter

Manufacturer: IFM

Type: Air Meter

Model: SD8000

MNR: SDR11DGXFPKG/US-100

Successor: SD8500

Media: Compressed Air

Measuring Range: 13 … 3750 l/m

Pulse: 0.003 … 3000000 m³

Pressure Rating : 16 bar

Process Connection: R1 DN25

Supply Voltage: 18 … 30 V DC

No. of digital Output:2

No. of Analog Output:1

Electrical Design: PNP

Output Function: Normally open/Normally closed

Electrical Connector: M12

Measuring Temperature Range: 0 … 60°C

Display Temperature Range: -12 … 72°C
