IKO LWF 40 Linear Guideway Block
Usado
Em estoque1 unidadePronto para envio
333,33$
Bloco de Guia Linear O bloco de guia linear flangeado IKO LWF-40 oferece alta rigidez e movimento de precisão suave. Construído em aço de alto carbono com tamanho de guia rolante de 40 mm para aplicações de automação pesada e CNC.
AutomationbearingBlockCarbonCNCDutyflangedGuideGuidewayHeavyHighIKOIndustrialLinearLWF-40MachineMotionpartsPrecisionSteel
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

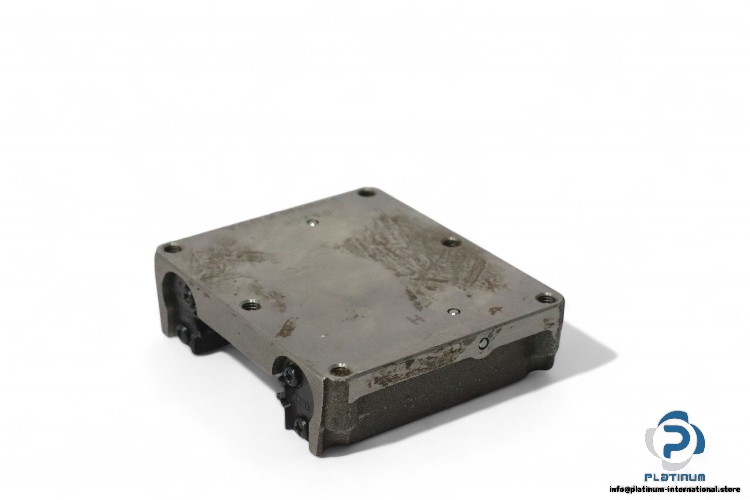

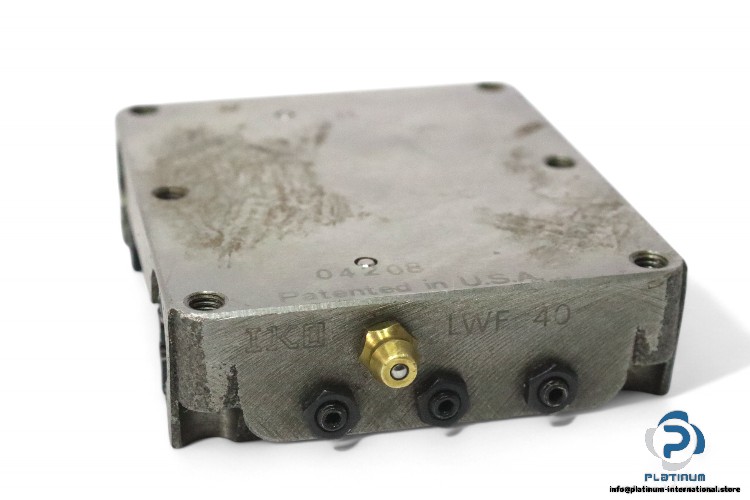

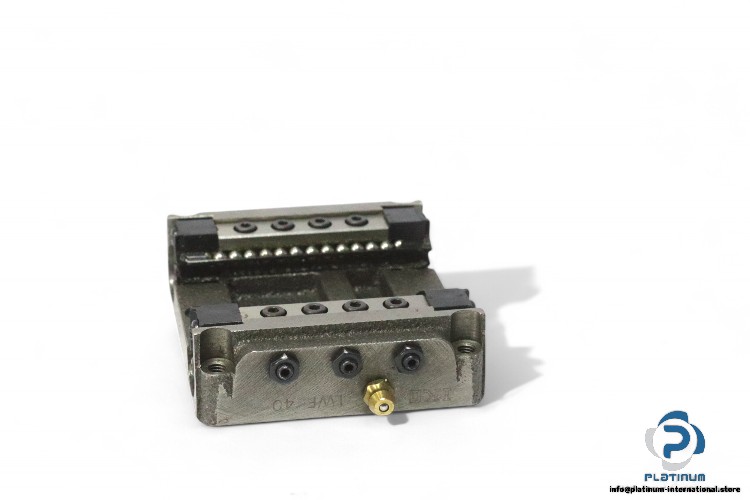

IKO LWF-40 Linear Guideway Block
The IKO LWF-40 Linear Guideway Block is a precision-engineered flanged block designed for smooth, accurate, and rigid linear motion. Constructed from high-carbon steel, it provides exceptional load capacity, stability, and durability. The flanged type design allows versatile mounting from both top and bottom, making it ideal for CNC machines, automation equipment, and precision assembly systems.
Manufacturer: IKO
Type: Linear Guideway Block
Model: LWF-40

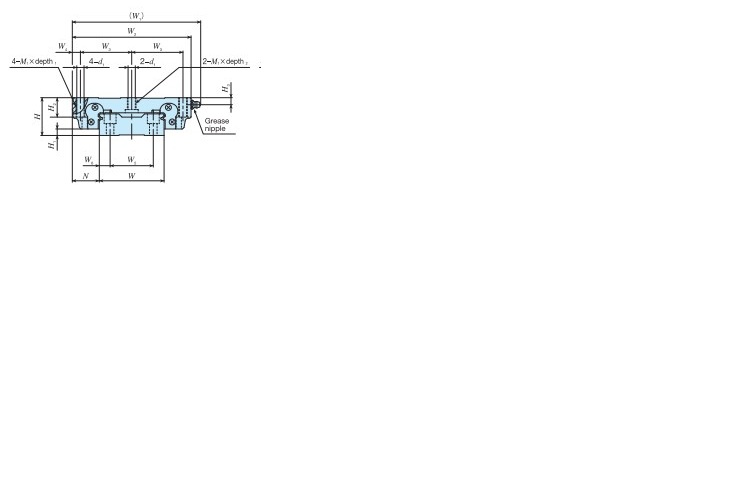

| Size of Rolling Guide | 40 mm |
| Material | High Carbon Steel |
| Series | LWF (Flanged Type Mounting from Top/Bottom) |
| Total Height (H) | 27 mm |
| Block Width (W2) | 82 mm |
| Block Length (L1) | 70 mm |
| Block Height (H-H1) | 22 mm |
| W3 | 37 mm |
| L2 | 60 mm |
| Basic Dynamic Load Rating (C) | 12,600 N |
| Basic Static Load Rating (C0) | 16,600 N |
| Static Moment Rating (T0) | 280 Nm |
| Static Moment Rating (Tx - X Axis) | 108 Nm |
| Static Moment Rating (Ty - Y Axis) | 99.3 Nm |
