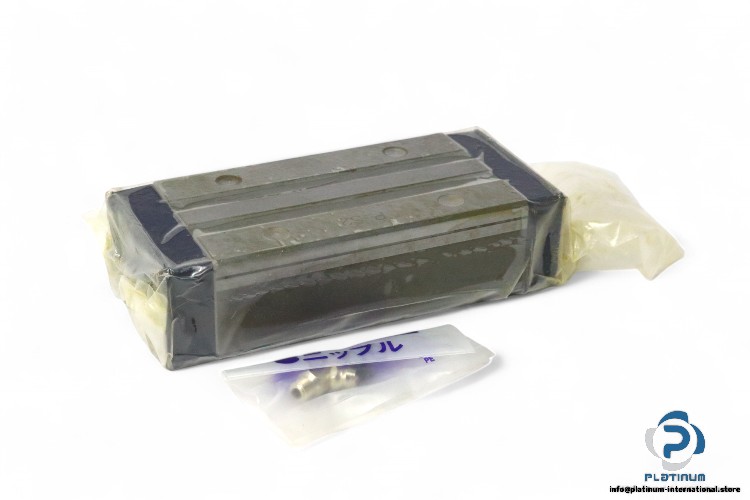

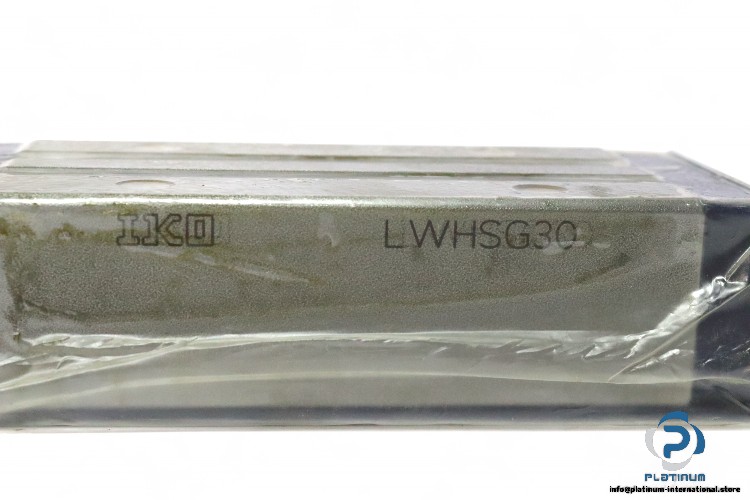

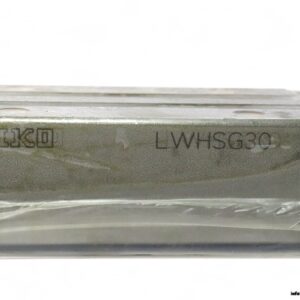

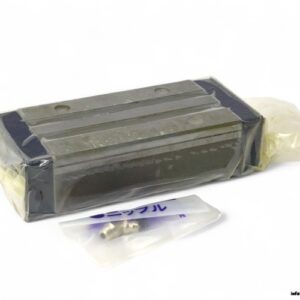

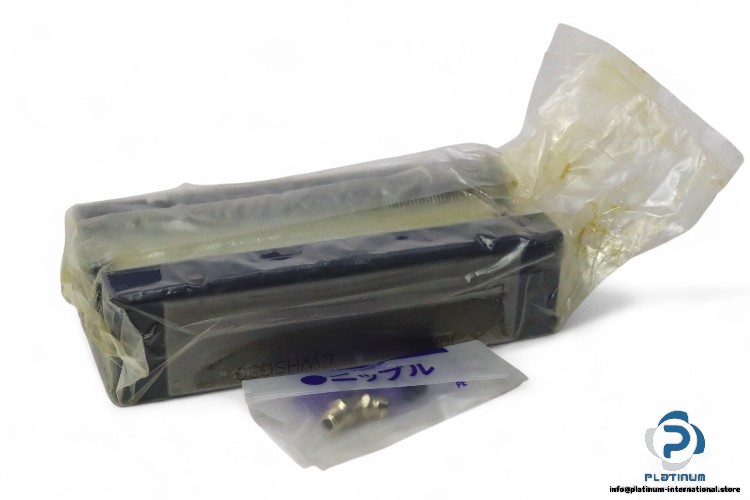

IKO LWHSG30C1HS2 Linear Guideway Block

Manufacturer: IKO
Type: LINEAR GUIDEWAY BLOCK
Model: LWHSG30 C1 HS 2

Size: 30

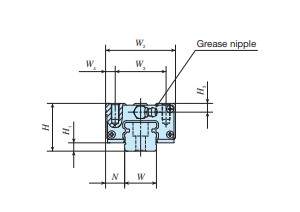

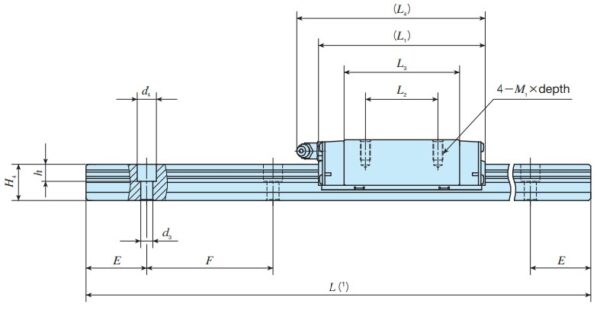

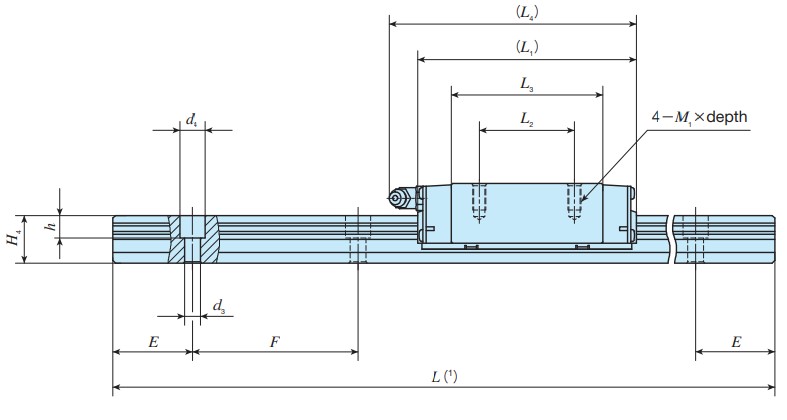

Dimensions
Total Height H: 42 mm
Block Width W₂: 60 mm
Block Length L₁: 139 mm
Block height(H-H1): 35 mm
W₃: 40 mm
L₂: 60 mm
Basic Load Ratings:
Dynamic C: 42 700 N
Static C₀: 53 200 N
Static moment rating:
T₀: 814 Nm
X axis T_x: 894 Nm
Y axis T_y: 894 Nm
Number of slide units: C1, 1
Series: LWHS ,mounting from top
Block Type: Compact block type, mounting from top
Length of slide unit: G, High rigidity long
Accuracy class: H, High
Interchangeable code: S
