INA Nkxr 20 Z Needle Roller/Axial Cylindrical Roller Bearing
Novo
Em estoque8 unidadesPronto para envio
Rolamento INA NKXR20Z combinado de roletes de agulha e rolos cilíndricos axiais com dimensões compactas, alta capacidade de carga radial e axial, e vedação de tampa final.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

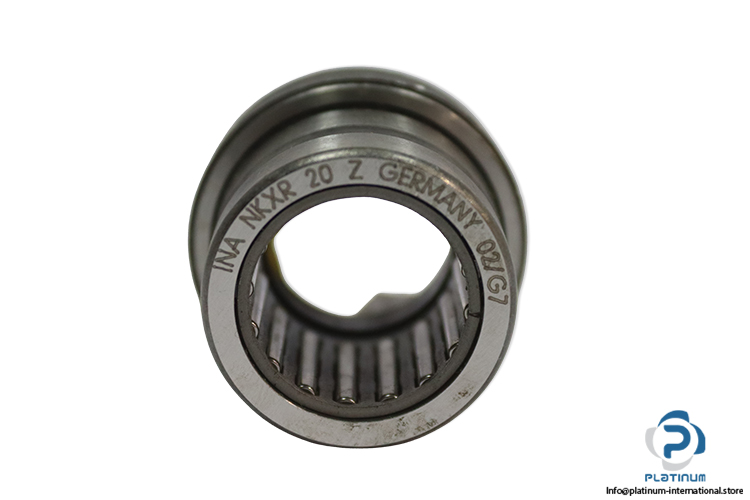

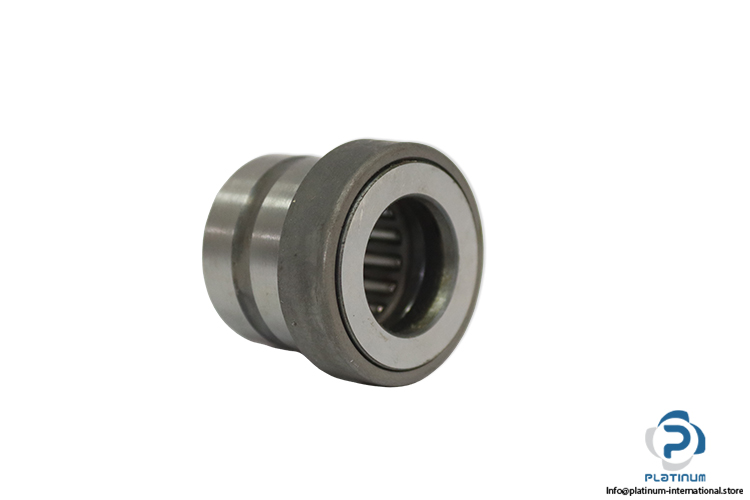

INA NKXR20Z Needle Roller / Axial Cylindrical Roller Bearing
The INA NKXR20Z is a combined needle roller and axial cylindrical roller bearing designed to support radial and axial loads simultaneously. It features a compact design with high load-carrying capacity and is suitable for applications requiring precise guidance and reliable performance.
Manufacturer: INA / Schaeffler
Type: Needle Roller / Axial Cylindrical Roller Bearing
Model: NKXR20Z
Basic Load Ratings “ Radial
Basic Load Ratings “ Axial
| Bore Diameter (Fw) | 20 mm |
| Outer Diameter (D) | 30 mm |
| Height (C) | 30 mm |
| Dynamic Load Rating (Cr) | 18,600 N |
| Static Load Rating (C0r) | 23,800 N |
| Fatigue Load Limit | 4,200 N |
| Dynamic Load Rating (Ca) | 25,000 N |
| Static Load Rating (C0a) | 53,000 N |
| Fatigue Load Limit | 7,500 N |
| Limiting Speed | 10,000 rpm |
| Reference Speed | 4,200 rpm |
| Sealing | Z, Bearing with end cap |
