INA Nutr 20 Yoke Type Track Roller
Rolo de trilho tipo Yoke INA NUTR 20 com alta capacidade de carga radial, lubrificação a graxa e design robusto de anel externo para acionamentos de came e sistemas de rastreamento industriais. Ideal para sistemas de transporte, mecanismos de came e aplicações de guias lineares de serviço pesado.

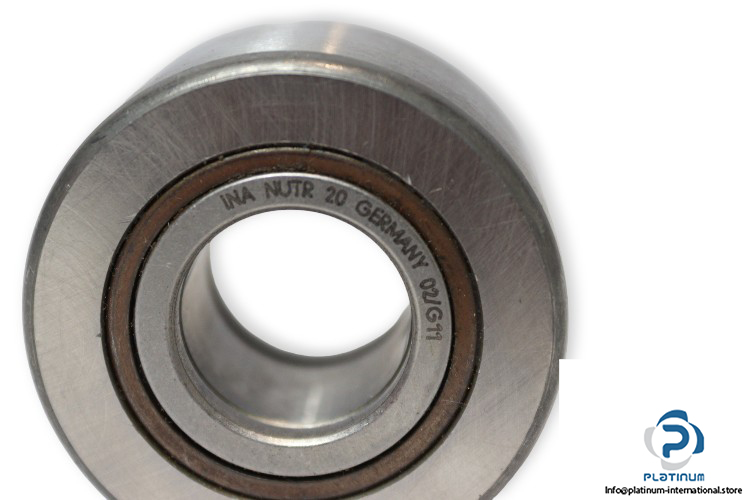

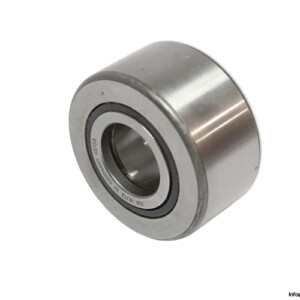

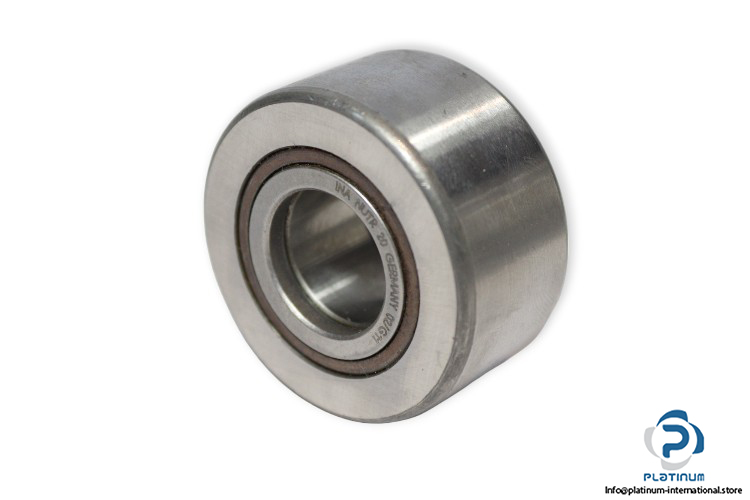

INA NUTR 20 Yoke Type Track Roller
The INA NUTR 20 yoke type track roller is engineered for high radial load capacity and precise rolling guidance in cam drives, linear motion systems, and heavy-duty track applications.
Manufacturer: INA
Type: Yoke Type Track Roller
Model: NUTR 20
Recommended for cam followers, guide rails, conveyor systems, and heavy-duty tracking mechanisms requiring high radial strength and long service life.
Please contact us via Ask for assistance with any inquiries.
| Bore Diameter d | 20 mm |
| Outer Diameter D | 47 mm |
| Width of the Bearing B | 25 mm |
| Basic Dynamic Load Rating (C) | 28500 N |
| Basic Static Load Rating (C0) | 38000 N |
| Fatigue Load Limit | 4950 N |
| Speed on Permanent Grease Lubrication | 4200 rpm |
| Permissible Static Load, Radial | 32500 N |
| Permissible Dynamic Load Outer Ring, Radial | 16300 N |
