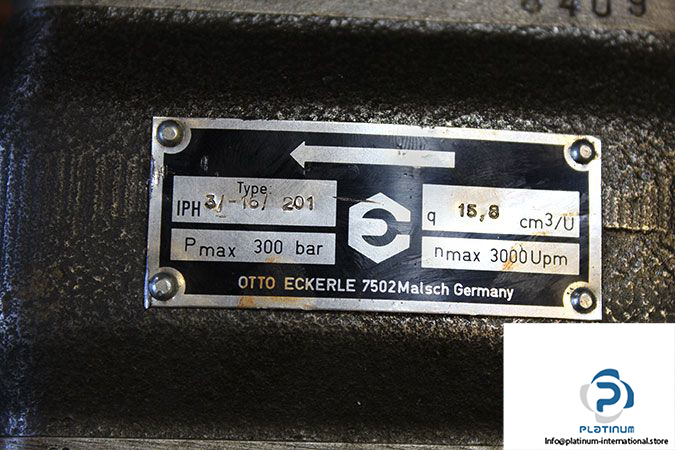

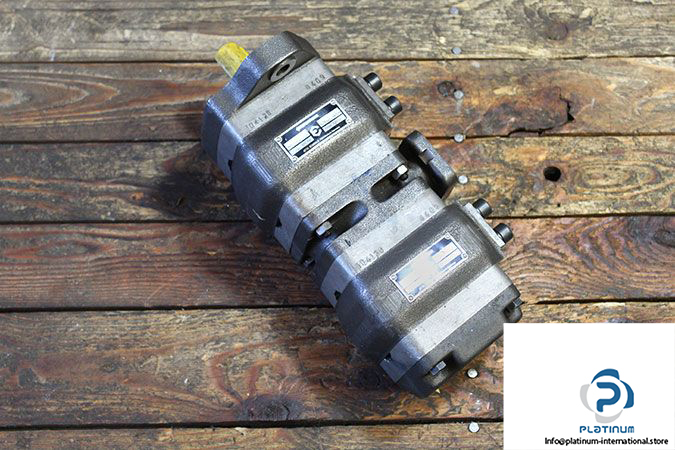

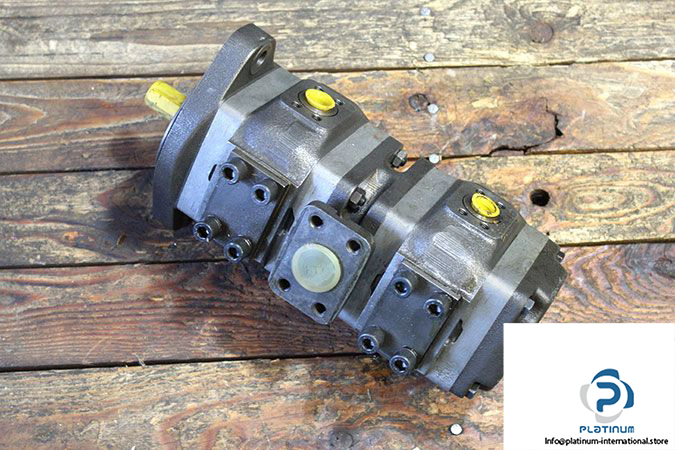

IPH3/-16/201 Internal Gear Pump

Type: Internal Gear Pump

Model: IPH3/-16/201



Size: 16

Displacement: 15.8 cm³

Direction of Rotation: Counter Clockwise

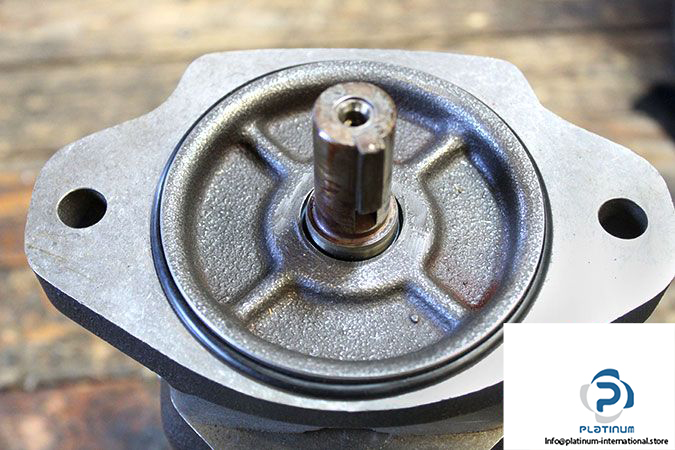

Shaft Diameter: 20 mm

Max pressure: 300 bar

Speed Range: 600 …. 2000 rpm

Flow Rate at 1450 rpm: 22.89 L/m

Viscosity Range: 20 ….  150 mm²/s

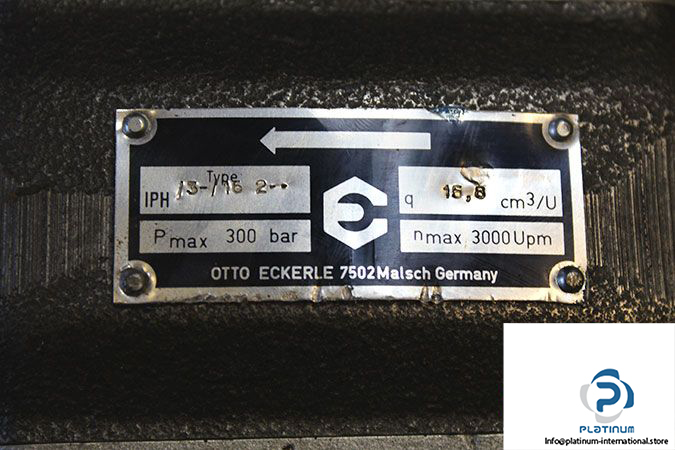

Attachment:  IPH/3-/16 2– INTERNAL GEAR PUMP

Type: Internal Gear Pump

Model: IPH/3-/16 2–

Size: 16

Displacement: 15.8 cm³

Weight: 16 Kg
