Kobold NBK-M1F20P01 Bypass Level Gauge
Novo
Em estoque2 unidadesPronto para envio

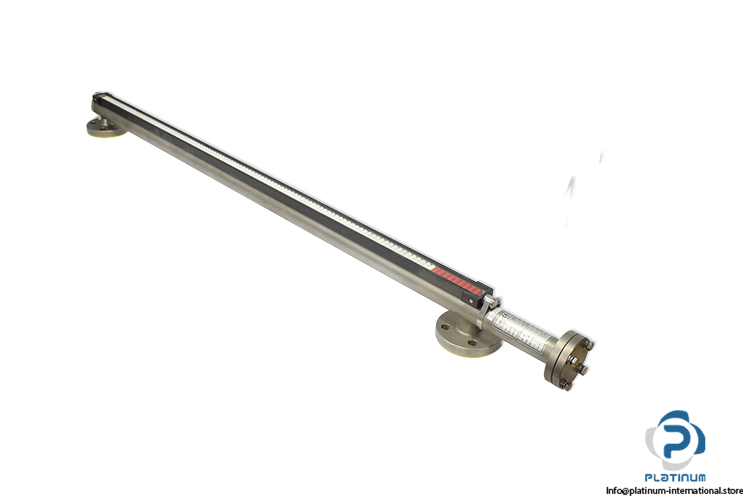

Mini Bypass Level Indicator The KOBOLD NBK-M1F20P01 Mini Bypass Level Indicator provides reliable liquid level measurement with a 4–20 mA output, stainless steel construction, and IP65 protection for industrial process applications.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
| Part No. | 357594 |
| Serial No. | 141628 D |
| Measuring Length Max. | 3000 mm |
| Pressure Max. | 6 bar |
| Output Signal | 4 … 20 mA |
| Resolution | 10 / 20 mm |
| Supply Voltage | 24 V DC |
| Current Consumption Max. | 150 mA |
| Flanges / Process Connection | DN20/PN40 |
| Total Length Max. | 4000 mm |
| Material | Stainless Steel 1.4571 |
| Protection Class | IP65 |
| Allowable Temperature | -20 … 120°C |
| Condition | New |
| SKU | 1102781 |
| Weight | 5,91 |
