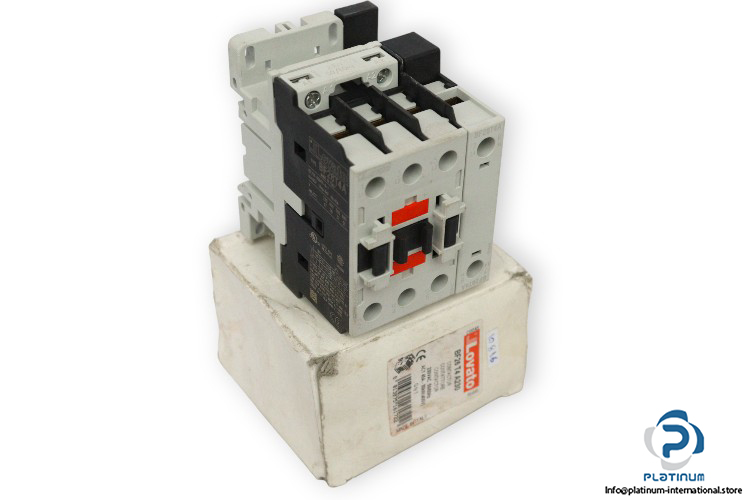

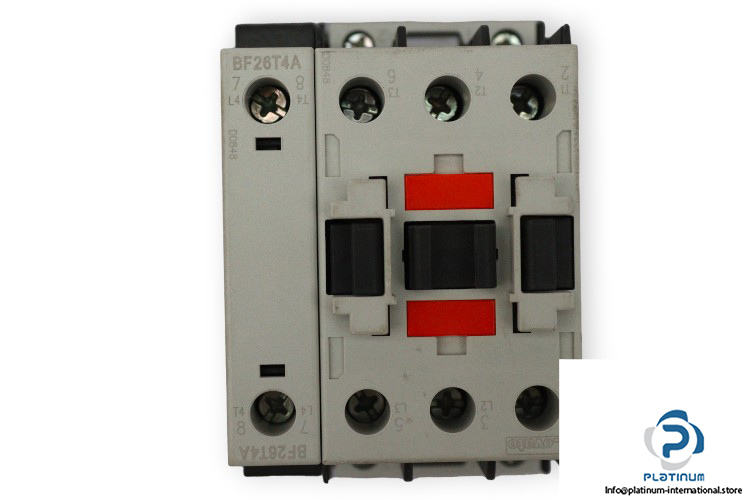

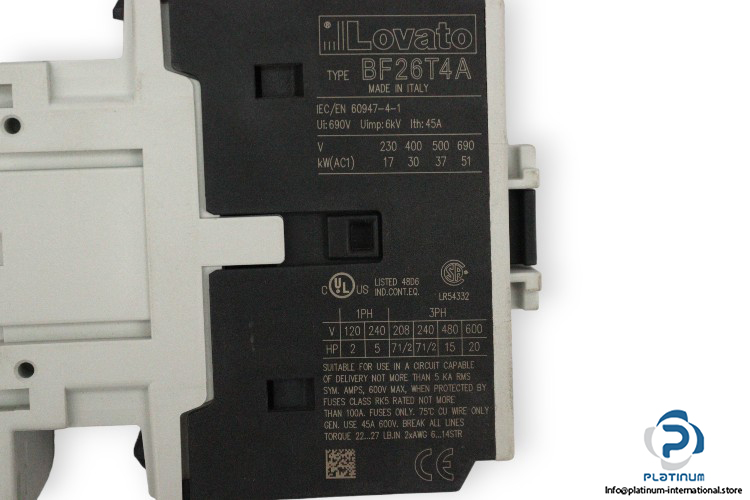

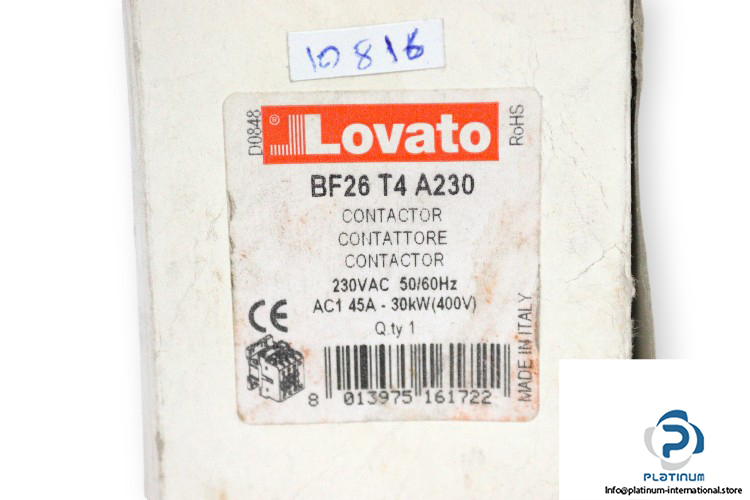

Lovato BF26T4A230 Contactor

Manufacture: Lovato electric
Type: Contactor
Model: BF26T4A230

No. of poles: 4

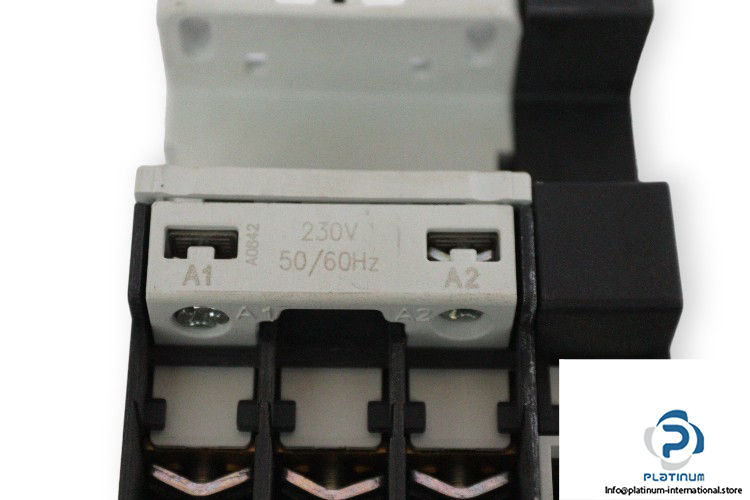

Coil voltage: 230 V AC
Frequency: 50/60 Hz
Rated insulation voltage Ui: 690 V
Rated impulse withstand voltage Uimp: 6 kV
Standard: IEC/EN 60947-4-1
Conventional free air thermal current Ith: 45 A
Rated operational current Ie: 45 A (AC-1) @400V
Rated operational power Pe: 30 kW @400V
Power dissipation per pole: 1.4 W (AC-3)
Fixing: Screw / DIN rail 35 mm
Operating temperature: -50 … 70°C
Pollution degree: 3
Protection degree: IP20
Dimensions: 90 x 61 x 90 mm
