Meccanica Combi 740 Hydraulic Control Unit
Usado
Em estoque1 unidadePronto para envio
Oil-Hydraulic Motor Pump and Jack
Meccanica Fadini COMBI 740 Oil-Hydraulic Motor Pump and Jack offers 235 Nm torque, 0.85 l/min flow rate, and a maximum pressure of 30 bar, providing reliable hydraulic performance in a single enclosure.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

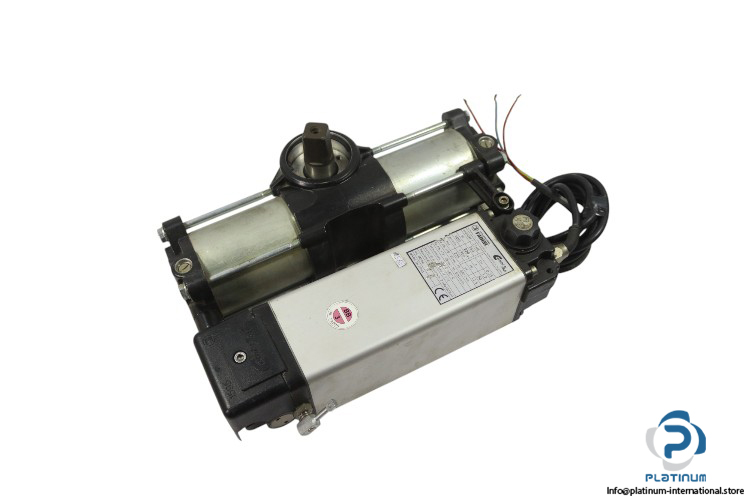

Meccanica Fadini COMBI 740 Oil-Hydraulic Motor Pump and Jack
The Meccanica Fadini COMBI 740 is a versatile oil-hydraulic motor pump and jack in a single enclosure, offering powerful performance and reliability for a variety of hydraulic applications. With a torque of 235 Nm and a flow rate of 0.85 l/min, it is perfect for tasks requiring high pressure and efficiency.

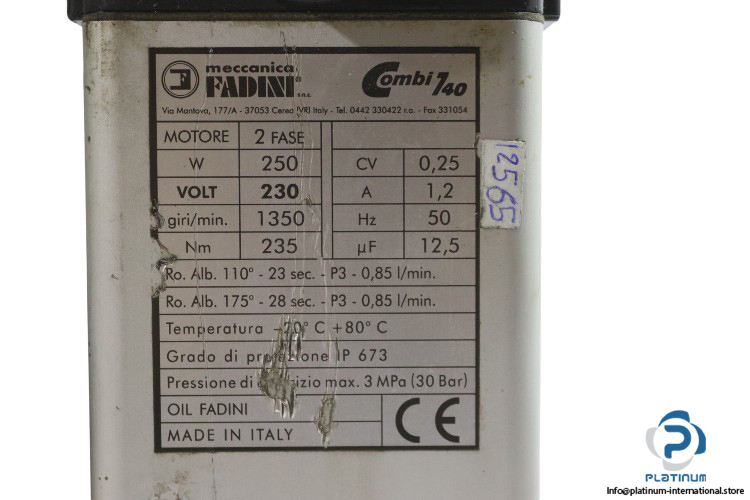

Manufacturer: Meccanica Fadini
Type: Oil-Hydraulic Motor Pump and Jack in a Single Enclosure
Model: COMBI 740
| Torque | 235 Nm |
| Speed | 1350 rpm |
| Voltage | 230 V |
| Power | 250 W |
| Current | 1.2 A |
| Capacity | 12.5 micro-farad |
| Frequency | 50 Hz |
| Flow Coefficient | 0.25 CV |
| IP Rate | 673 |
| Cylinder Bore | 75 mm |
| Oil Type | A 15 FADINI by AGIP |
| Stroke | 52 mm |
| Max. Pressure | 30 bar |
| Motor | 2 Phases |
| Shaft Rotation | 110°, 175° (23 “ 28 sec) |
| Flow Rate | 0.85 l/min |
| Temperature | -20 to 80°C |
